TORQUE FOR HYDRAULIC TUBES AND FITTINGS (CONTINUED)
NOMINAL TUBE OD
1/8"
3/16"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
7/8"
1"
1-1/4"
1-1/2"
2"
Copyright 2024, The Heil Co.
Printed in the U.S.A.
General Information
37 DEGREE FLARE (JIC) FITTINGS
SET WRENCH TO
TORQUE WRENCH SETTING
6.5 ft-lbs.
9 ft-lbs.
12.5 ft-lbs.
16.5 ft-lbs.
21 ft-lbs.
41 ft-lbs.
64 ft-lbs.
89 ft-lbs.
105 ft-lbs.
130 ft-lbs.
142.5 ft-lbs.
178.5 ft-lbs.
250 ft-lbs.

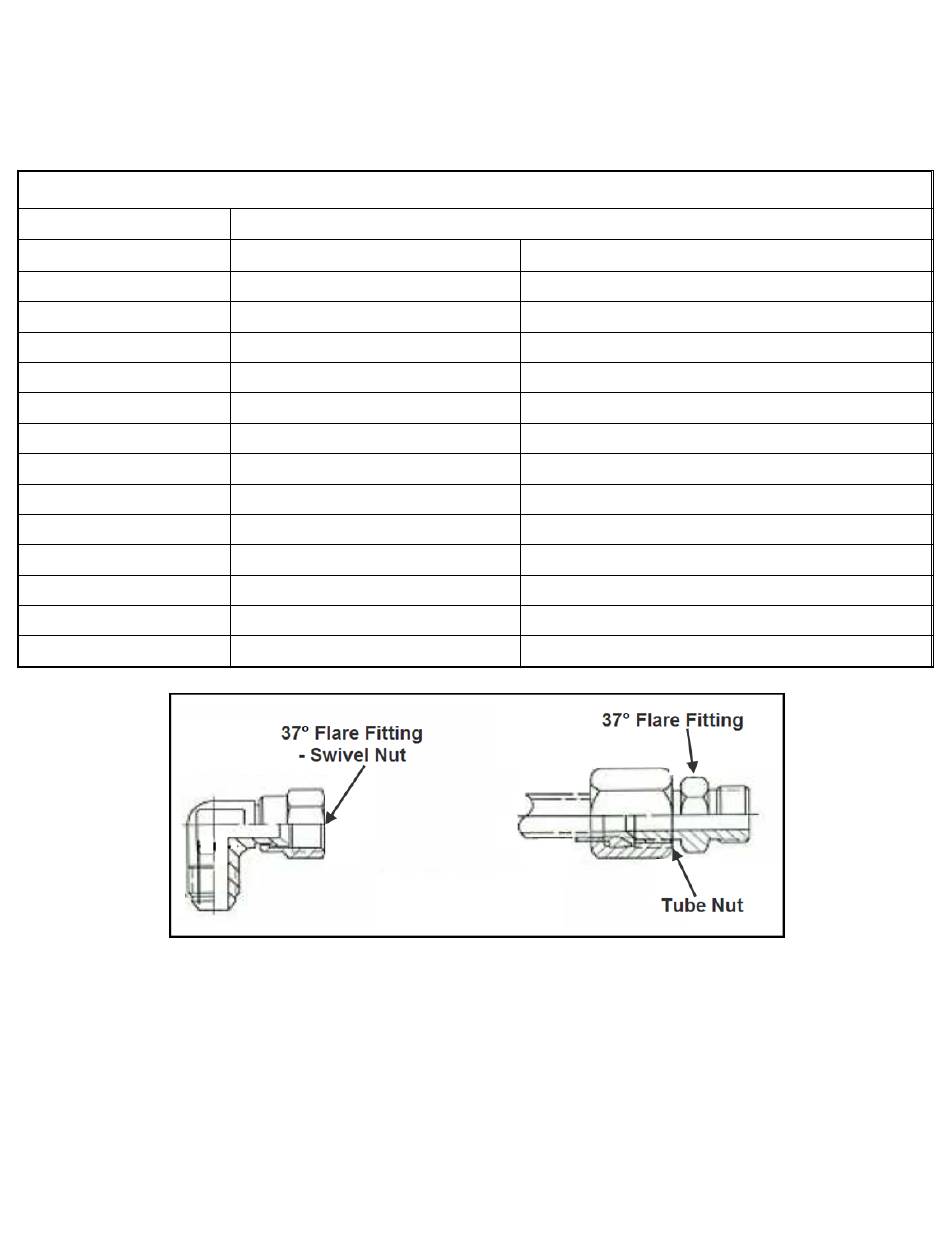

Figure 3. Torque for Hydraulic Tubes and Fittings
ALTERNATE TORQUE UNITS
80 in-lbs.
110 in-lbs.
150 in-lbs.
200 in-lbs.
250 in-lbs.
490 in-lbs.
770 in-lbs.
1070 in-lbs.
1260 in-lbs.
1560 in-lbs.
1710 in-lbs.
2140 in-lbs.
3000 in-lbs.
