Application of
Needle-presser module
Disassembly
13
Removal of Threader hook assy

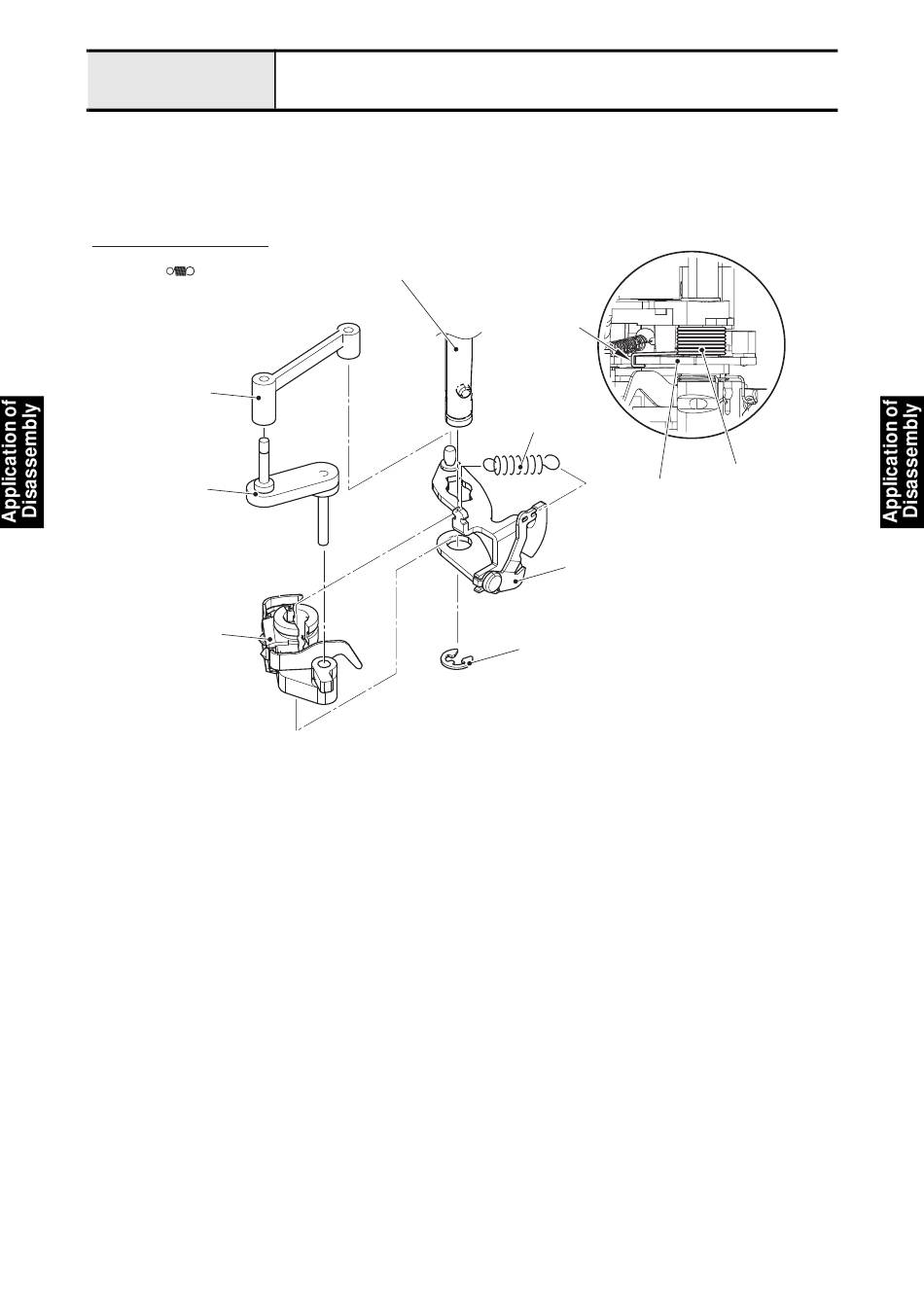

1. Remove the retaining ring E2.5 from the needle threader shaft A of needle bar supporter assy, release
the hook part of spring from the thread guide assy, and then pull out the threader hook assy.
Disassemble the threader hook assy, link A assy, link B and thread guide assy, and remove the spring
(XC9616) from the thread guide assy.
Spring (XC9616)
Needle threader shaft A
Hook part
Link B
Spring (XC9616)
Spring
Link A assy
Thread guide assy
Thread guide assy
Threader hook assy
Retaining ring E2.5
3 - 71
43
