Basic of Disassembly
10

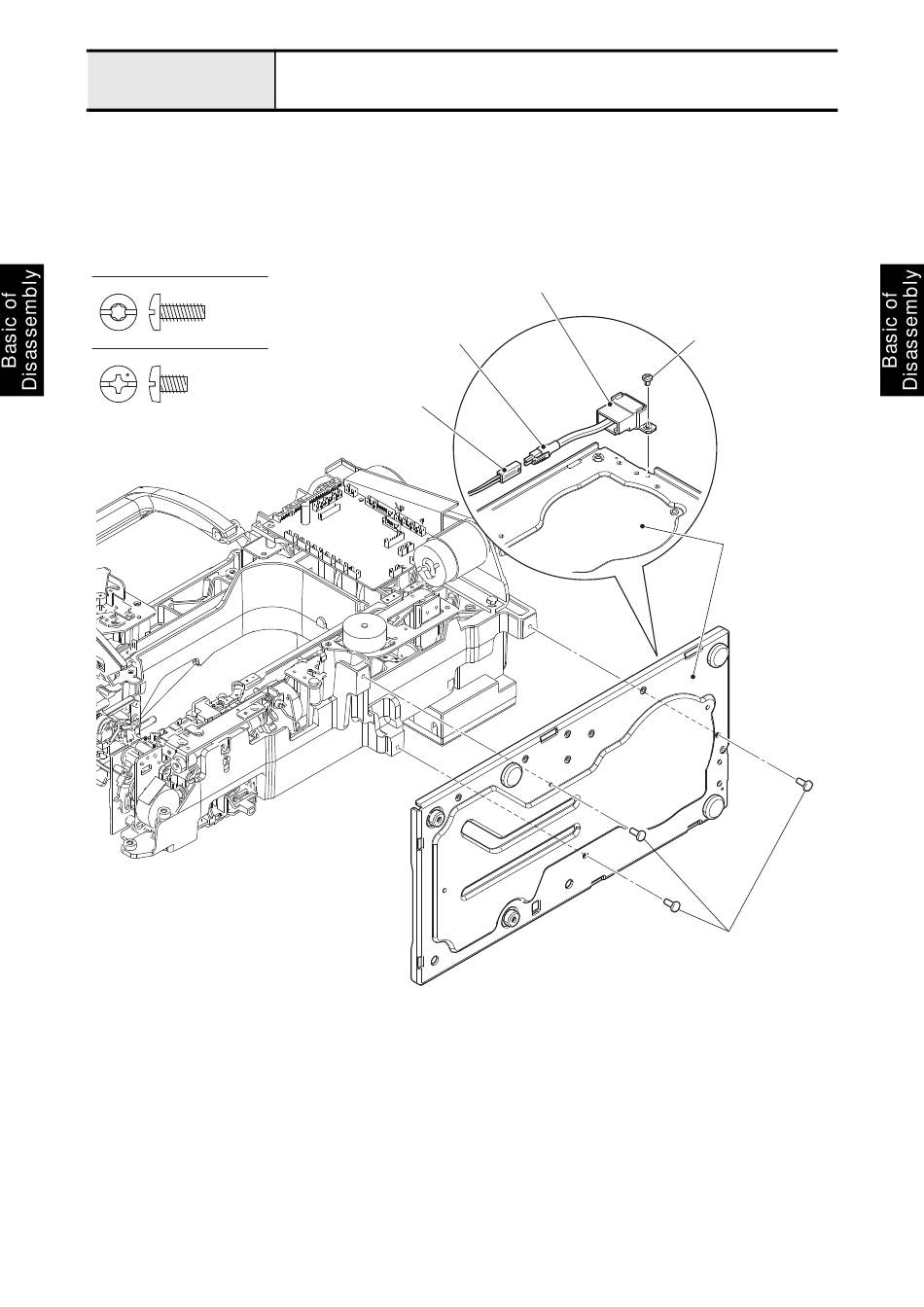

Removal of Base plate assembly
1. Unlock the lock to disconnect the inlet lead wire from the power unit lead wire.
Refer to 3 - 18 "Disassembly of Base plate assembly".
2. Remove the three screws (taptite, bind S M4x10) to remove the base plate assembly.
3. Remove the screw (screw, bind M4x6) to remove the inlet assy from the base plate assembly.
Taptite, Bind S M4X10
Screw, Bind M4X6
Main frame and Covers
Inlet lead wire
Power unit lead wire
2 - 13
15
Inlet assy
Screw, bind M4x6
Base plate
assembly
Taptite, bind S M4x10
