Basic of Assembly
3

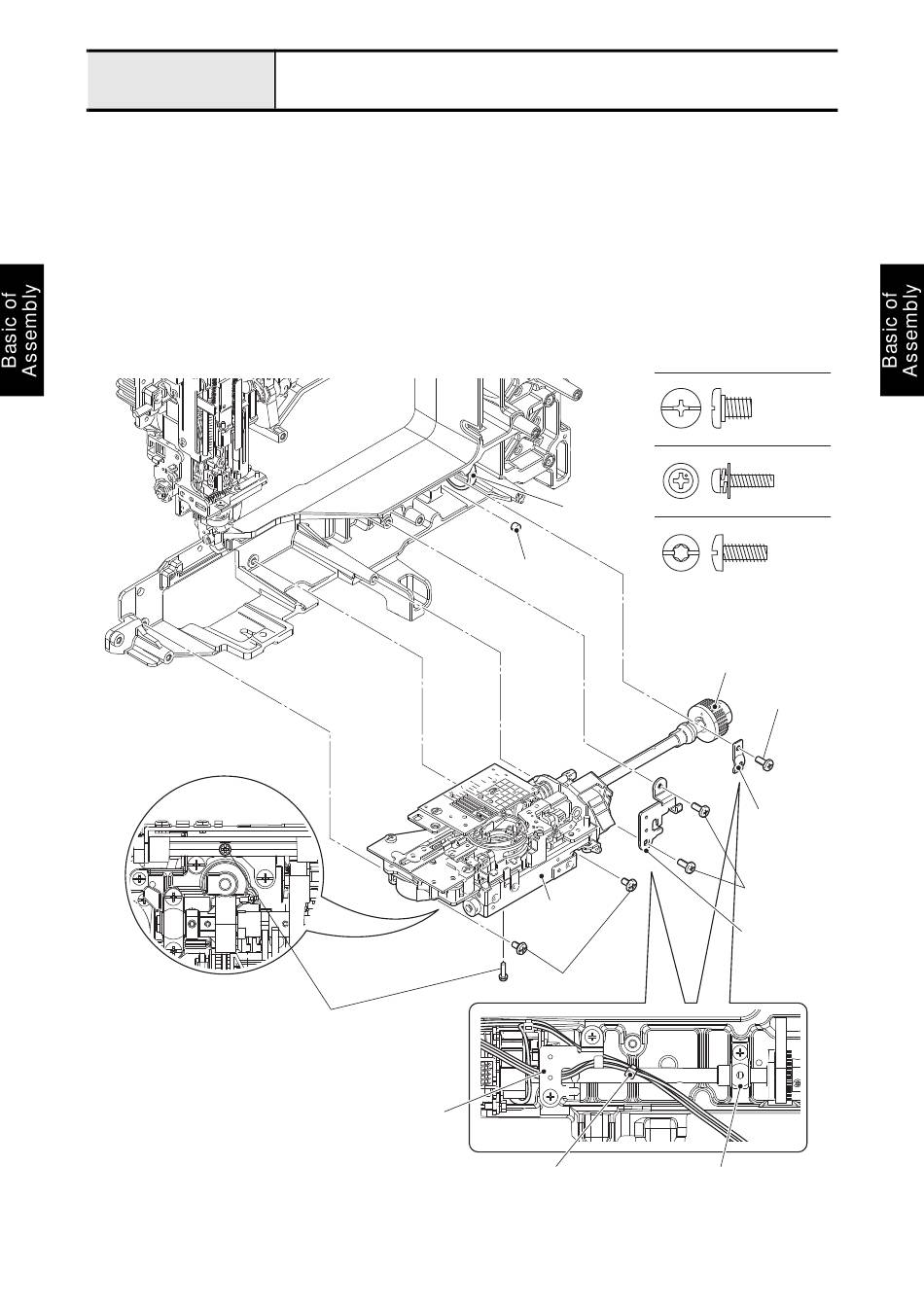

Attachment of Feed module
1. Set the felt.
2. Hang the T belt on the timing pulley D. Set the feed module to the mounting position, and secure it with
the two screws (stud screw M4) and screw (screw, pan (S/P washer) M3x12).

Refer to 3 - 166 "Feed module".
3. Attach the bushing presser with the screw (taptite, bind S M4x10).
4. Attach the free arm front cover plate with the two screws (taptite, bind S M4x10).
5. Pass the lead wires through the securing fixtures, and bind up them with the band.
*Key point
• Refer to "Wiring of Thread cutter module / Feed module / Side feed
<Bottom side>
Screw, pan (S/P washer) M3x12
Lower driving mechanism
Free arm front
cover plate
2 - 36
22
module".
Screw M4
Screw, Pan (S/P washer) M3X12
T belt
Taptite, Bind S M4X10
Felt
Timing pulley D
Feed module
Stud screw M4
Band Bushing presser
Taptite, bind
S M4x10
Bushing
presser
Taptite, bind
S M4x10
Free arm front
cover plate
