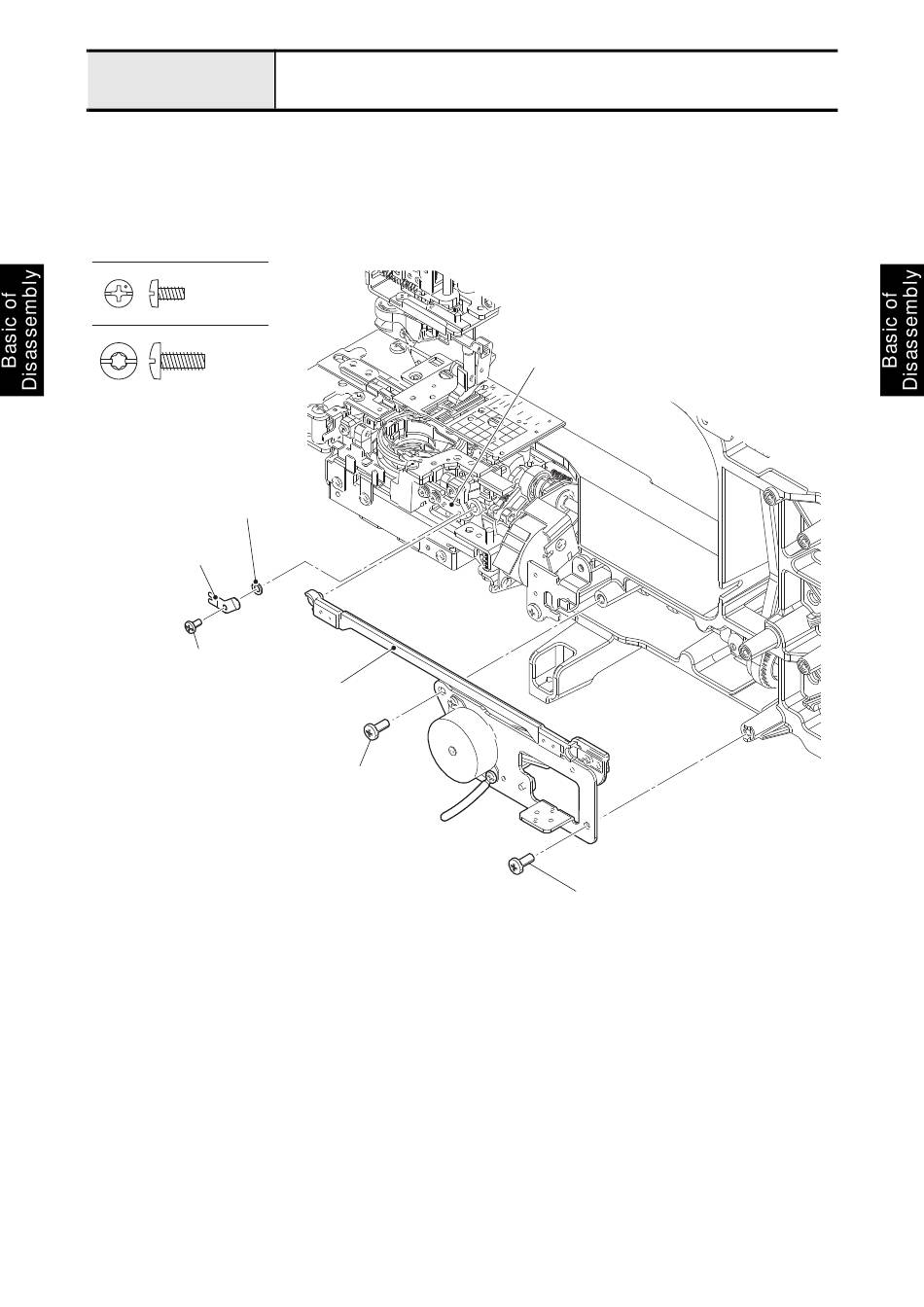

Removal of Side feed assy
1. Remove the screw (screw, bind M3x6) to remove the spring plate B and the washer from the side feed
adjust plate.
2. Remove the two screws (taptite, bind S M4x10) to remove the side feed assy.
Refer to 3 - 52 "Disassembly of Side feed assy".
Screw, Bind M3X6
Taptite, Bind S M4X10
Washer
Spring plate B
Screw, bind M3x6
Lower driving mechanism
Side feed assy
Taptite, bind S M4x10
2 - 23
Side feed adjust plate
Taptite, bind S M4x10
17
