Basic of Disassembly
1

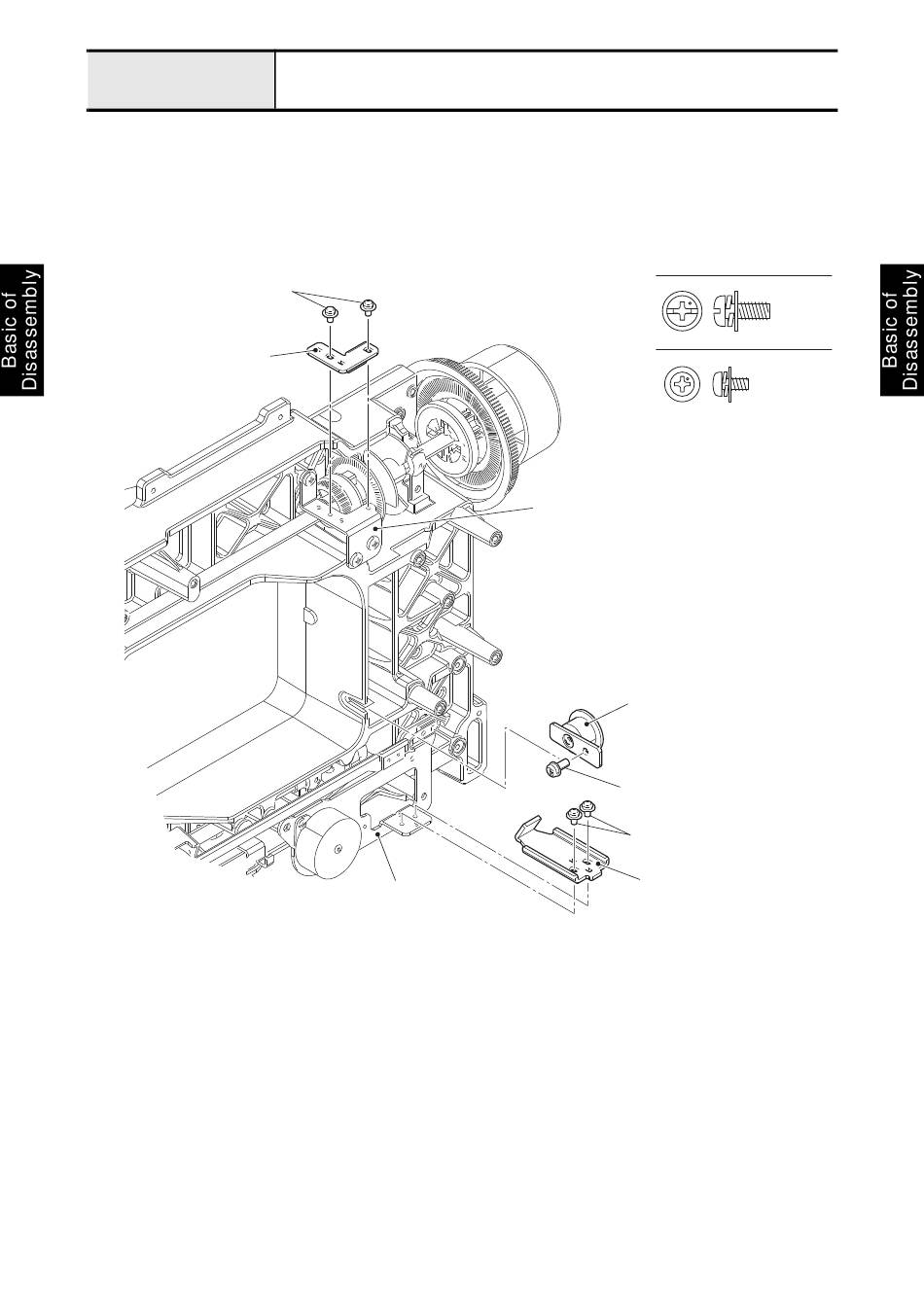

Removal of Tension pulley assembly and Belt supports
1. Remove the screw (screw, pan (S/P washer) M4x10) to remove the tension pulley assembly.
2. Remove the two screws (screw, pan (S/P washer) M3x6) to remove the belt support upper adjust from
the belt support upper.
3. Remove the two screws (screw, pan (S/P washer) M3x6) to remove the belt support lower adjust from
the side feed assy.
Screw, pan (S/P washer) M3x6
Belt support upper adjust
Lower driving mechanism
Side feed assy
2 - 22
16
Screw, Pan (S/P washer) M4X10
Screw, Pan (S/P washer) M3X6
Belt support upper
Tension pulley assembly
Screw, pan (S/P washer) M4x10
Screw, pan (S/P washer) M3x6
Belt support lower adjust
