Baby Lock Mid-Line Machines Technical Training Manual page 61

Adjustment
[Standard]
In the test mode #23, the needle point should drop into the center of embroidery sheet hole
when the needle is lowered by pressing the
[Adjustment]
1. Remove the presser foot.
2. Attach the size 75/11 needle.
3. Turn off the machine, and then attach the embroidery unit to the
machine.
*Note
• Be sure to remove the embroidery frame from the embroidery unit
beforehand.
4. Start the test mode, and then select the #23 (Embroidery Max Position
mode).
5. Attach the extra large embroidery frame (180 x 130 mm, 7 x 5 inch) to
the embroidery unit.
6. Put the embroidery sheet on the embroidery frame.
7. Press the button on the screen (carriage moves automatically).
8. Turn the pulley by hand to drop the needle point to the embroidery sheet and check the position of the needle
point. (Adjustment completed)
*Key point
• To adjust the needle point position, refer to the next page.

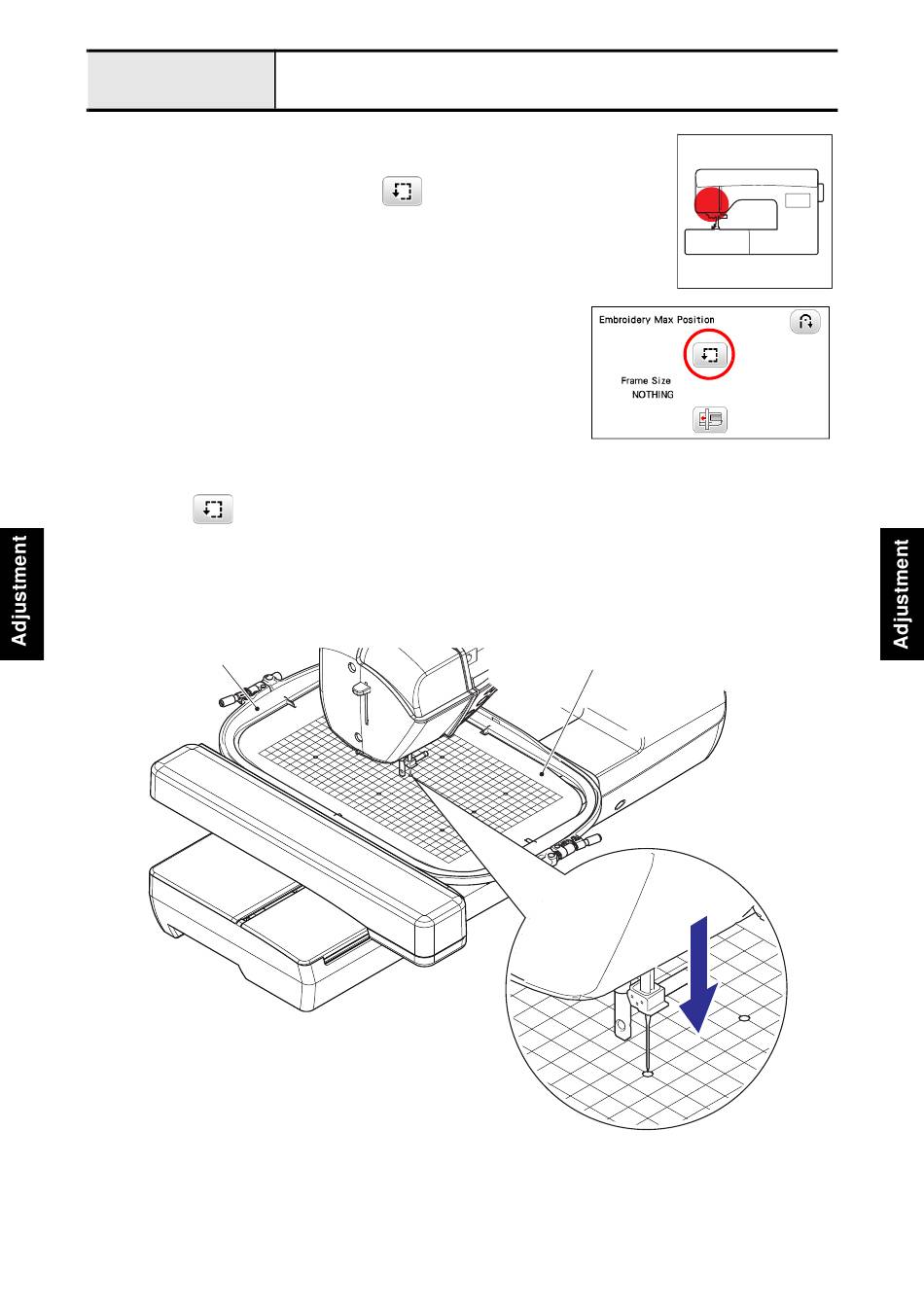

Embroidery frame
<To next page>
Embroidery center position (embroidery unit)
button on the screen.
4 - 34
58
Embroidery sheet
