Baby Lock Mid-Line Machines Technical Training Manual page 22

Basic of Disassembly
4

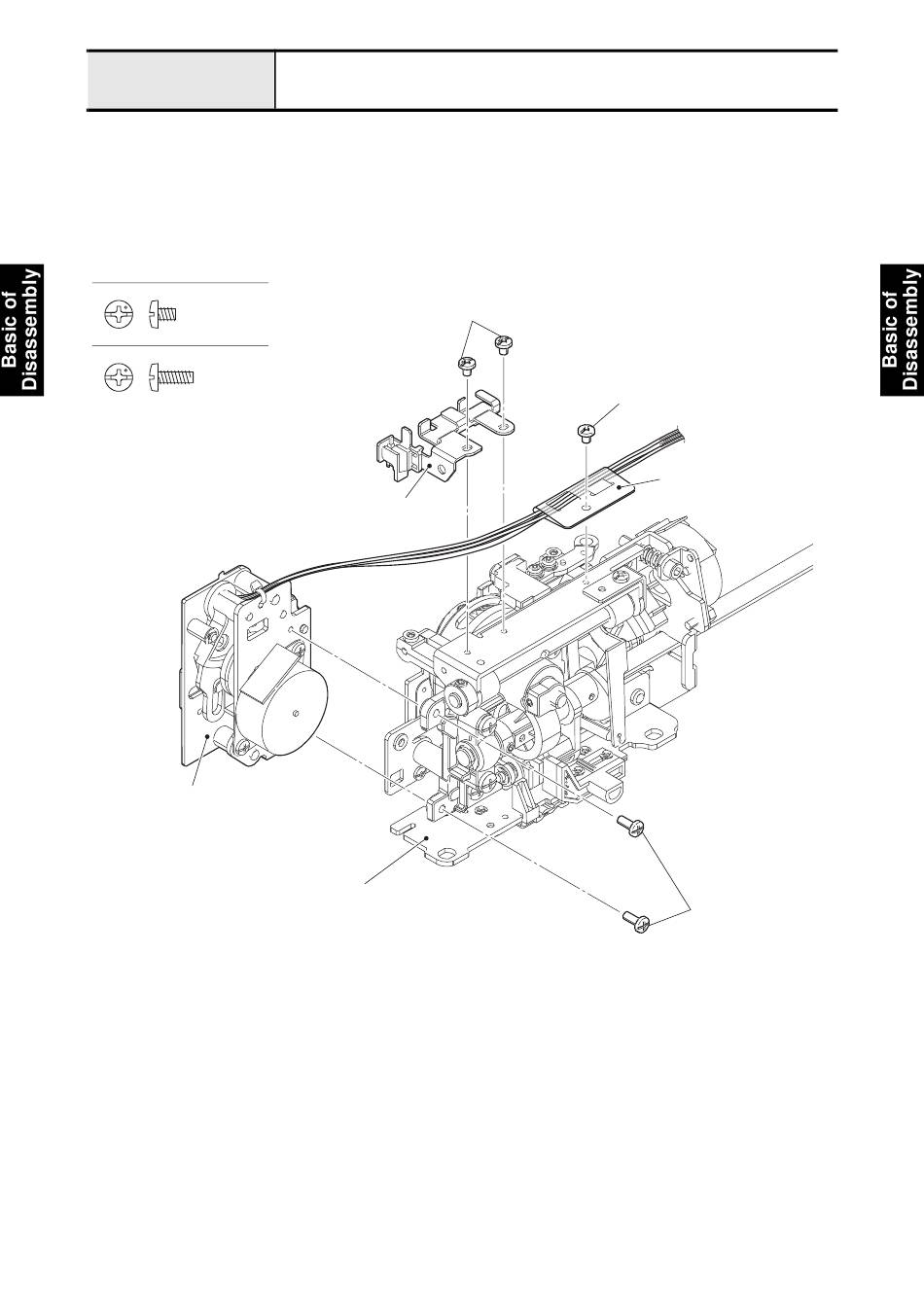

Removal of Thread cutter module
1. Remove the screw (screw, bind M3x4) to remove the feed unit insulation sheet. Release the lead wires
from the feed unit insulation sheet, and release it from the securing fixtures.
2. Remove the two screws (screw, bind M3x8) to remove the thread cutter module from the feed module.

Refer to 3 - 54 "Thread cutter module".
3. Remove the two screws (screw, bind M3x4) to remove the lead wire guide holder from the feed module.
Screw, Bind M3X4
Screw, Bind M3X8
Thread cutter module
Lower driving mechanism
Screw, bind M3x4
Lead wire guide holder
Feed module
2 - 25
19
Screw, bind M3x4
Feed unit insulation sheet
Screw, bind M3x8
