Embroidery Center Position (Embroidery Unit) - Baby Lock Mid-Line Machines Technical Training Manual

Adjustment
<From previous page>


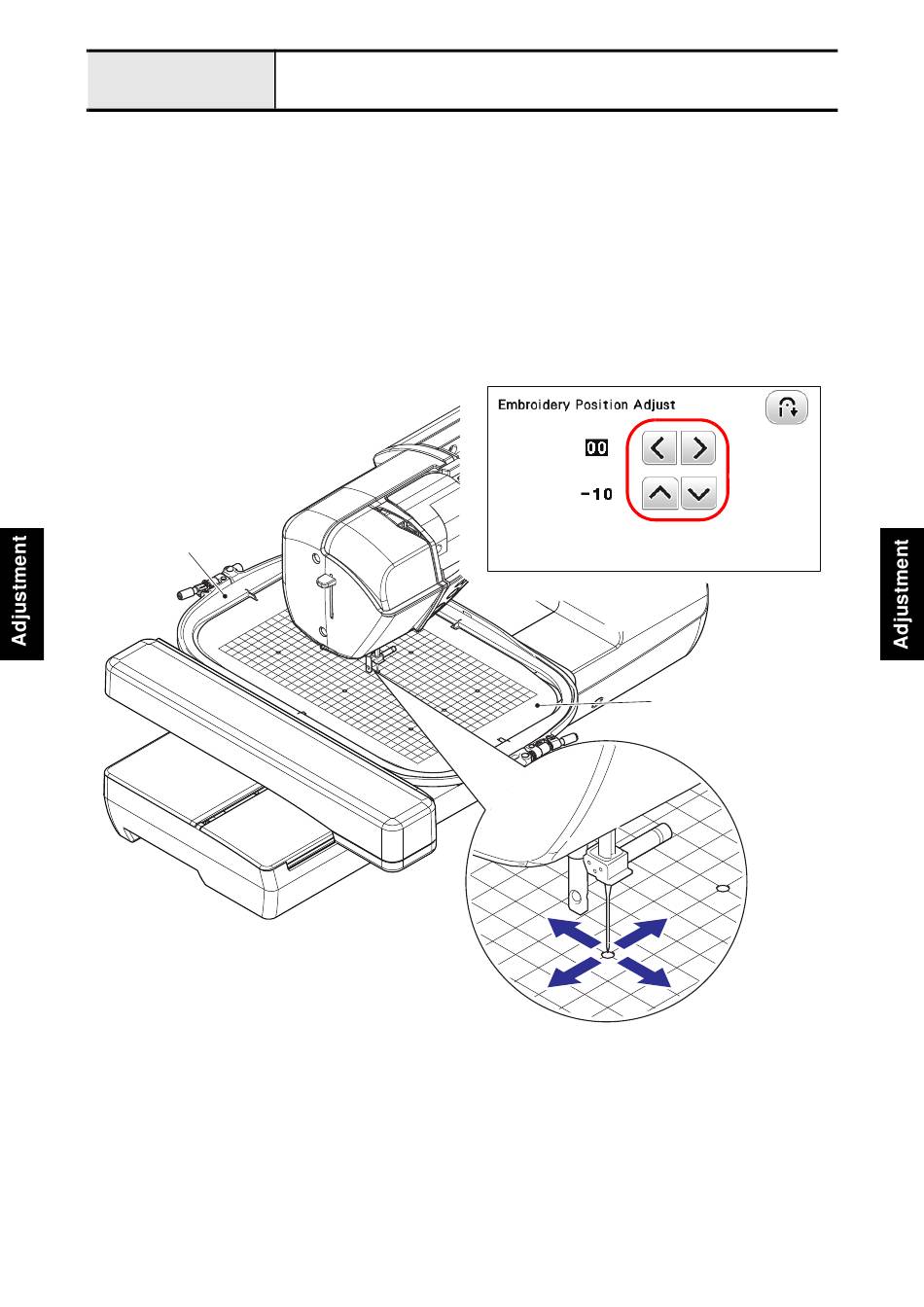

If the needle point doesn't drop into the hole on the center of the embroidery sheet,
adjust the needle point position according to procedures below.
1. Select the #08 (Embroidery Position Adjust mode).
2. Press the position adjustment button on the screen to adjust the needle point position.
3. Turn off the machine to input the set value to the machine.
4. Remove the embroidery frame.
5. Go back to procedure 4 on the previous page and check the needle point position.
Embroidery frame

Embroidery center position (embroidery unit)

4 - 35
59
Embroidery sheet
