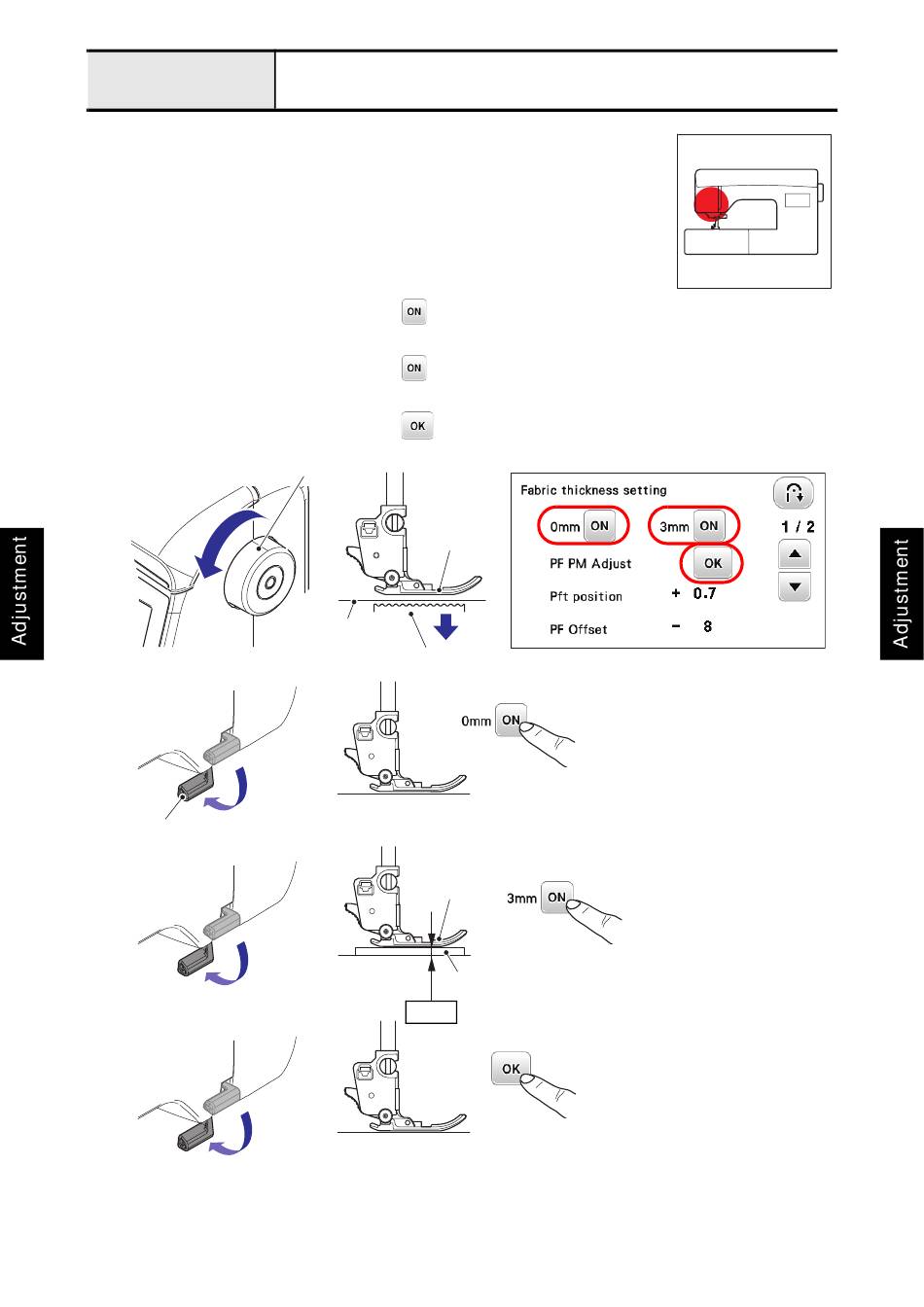

Adjustment
[Standard]
In the test mode #02, set the fabric thickness: 0 mm and 3 mm.
[Adjustment]
1. Remove the needle.
2. Attach the presser foot "J".
3. Start the test mode, and then select the #02 (Fabric thickness setting mode).
4. Turn the pulley by hand to set the feed dog lower than the needle plate A assy.
5. Lower the presser foot lever, and press the
6. Raise the presser foot lever. Insert the gauge (3 mm) under the presser foot "J".
7. Lower the presser foot lever, and press the
8. Raise the presser foot lever. Remove the gauge.
9. Lower the presser foot lever, and press the
Presser foot lever

Fabric thickness setting

button next to the "0mm" on the screen. (Fig.1)
button next to the "3mm" on the screen. (Fig.2)
button next to the "PF PM Adjust" on the screen. (Fig.3)
Pulley
Presser
foot "J"
Needle plate
A assy
Feed dog
Fig.1
Presser
foot "J"
Gauge
Fig.2
3 mm
Fig.3
4 - 20
