Basic of Assembly
2

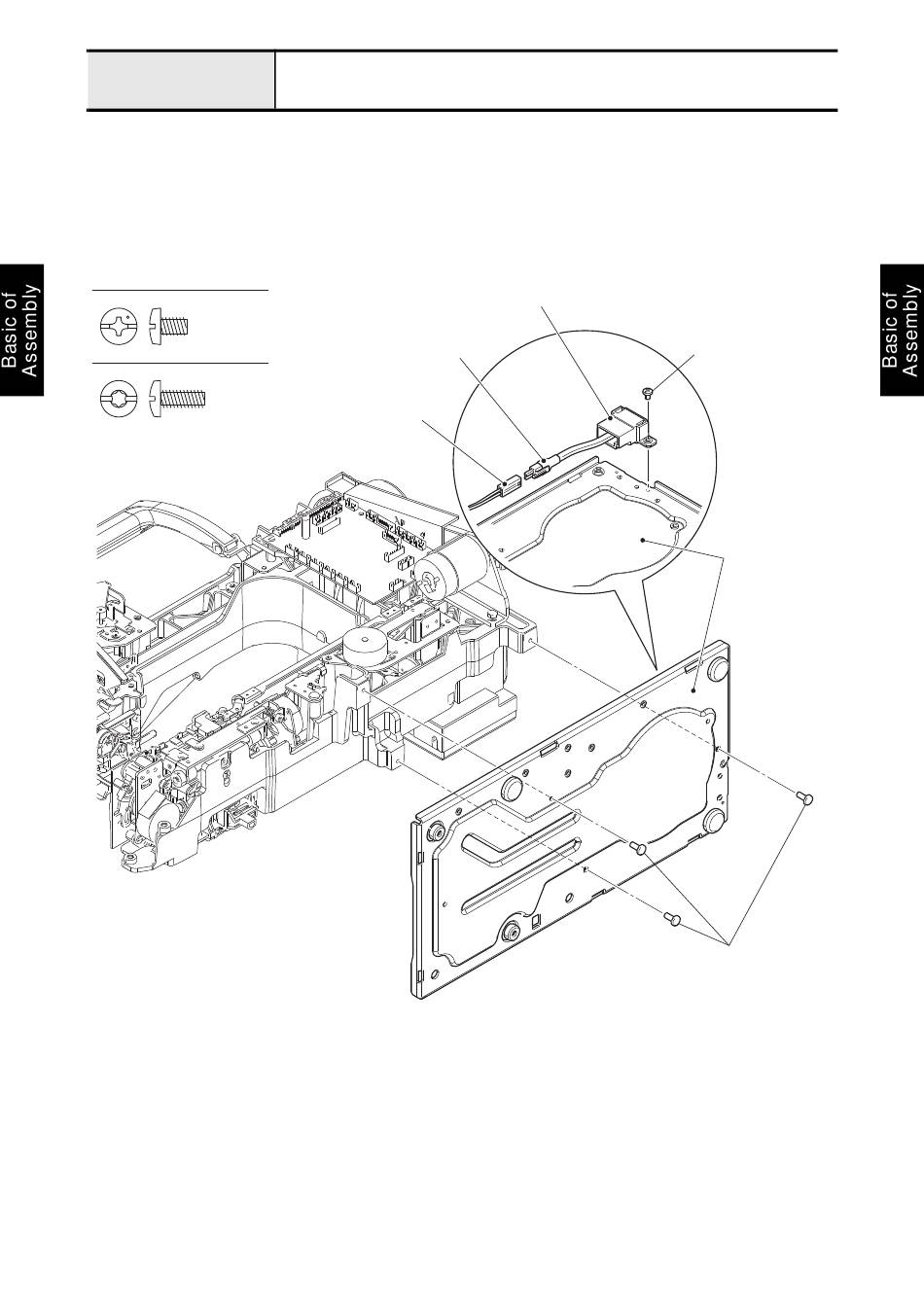

Attachment of Base plate assembly
1. Attach the inlet assy to the base plate assembly with the screw (screw, bind M4x6).
2. Attach the base plate assembly with the three screws (taptite, bind S M4x10).
3. Connect the inlet lead wire to the power unit lead wire.
*Key point
• Refer to
"Wiring of Power
Screw, Bind M4X6
Taptite, Bind S M4X10
Main frame and Covers
unit".
Inlet lead wire
Power unit lead wire
2 - 47
25
Inlet assy
Screw, bind M4x6
Base plate
assembly
Taptite, bind S M4x10
