If the LED indicator doesn't light up during placing on SmartBracket, check the
tamper status in the Ajax app, the integrity of the fastening, and the tightness of the
keypad xation on the panel.
13. Add the keypad to the hub
14. Run the keypad
15. If the tests are passed successfully, remove the keypad from SmartBracket.
16. Fix the SmartBracket panel on the surface with bundled screws. Use all
xing points.
When using other fasteners, ensure they do not damage or deform the panel.
17. Place the keypad on the SmartBracket mounting panel.

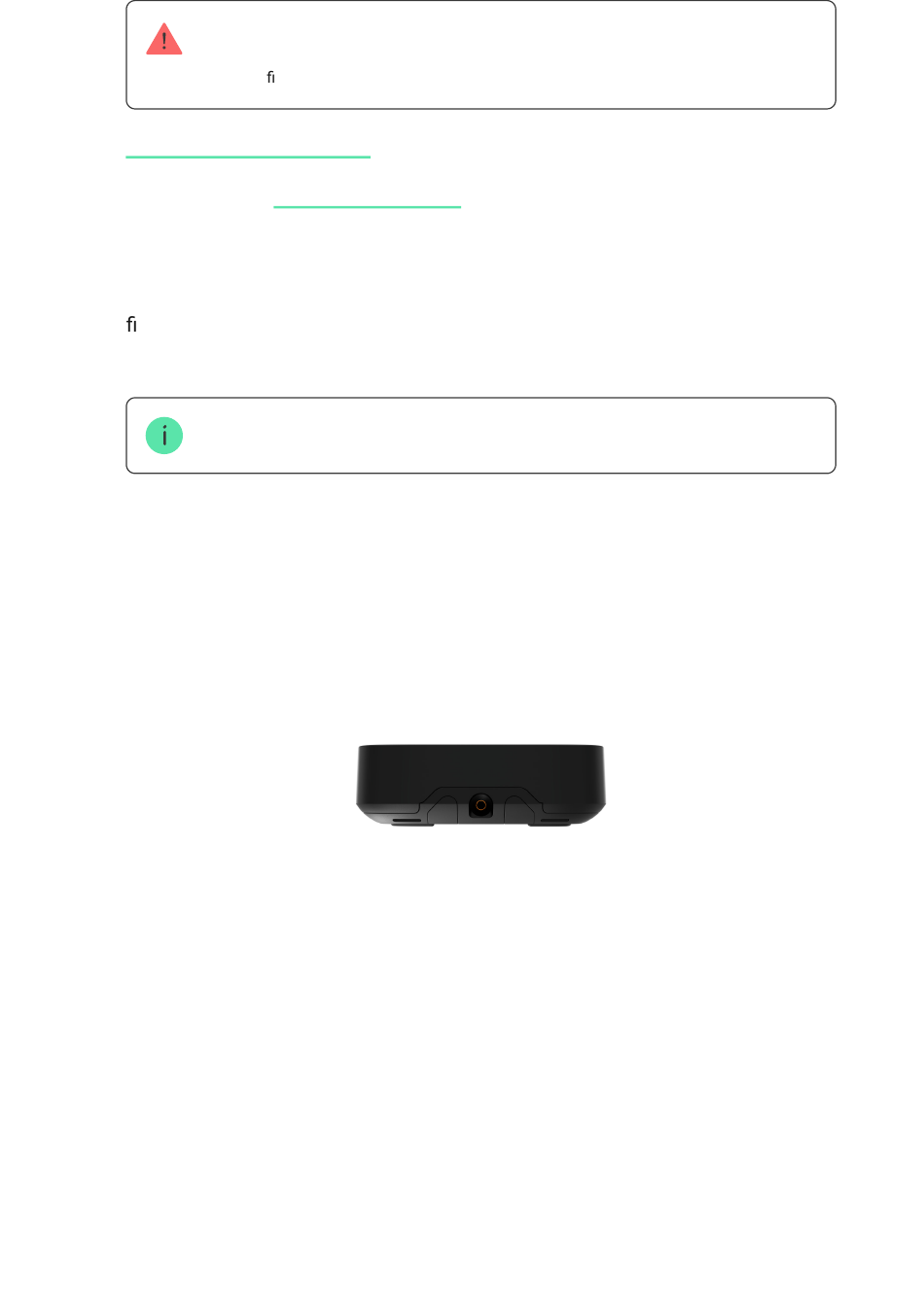

18. Tighten the holding screw on the bottom of the keypad's enclosure. The
screw is needed for more reliable fastening and protection of the keypad
from quick dismantling.
Connecting a third-party power supply unit
When connecting a third-party power supply unit and using KeyPad
TouchScreen, follow the general electrical safety regulations for using electrical
appliances, as well as the requirements of regulatory legal acts on electrical
safety.
KeyPad TouchScreen is equipped with terminals for connecting a 10.5–14 V⎓
power supply unit. Recommended electrical parameters for the power supply
unit are: 12 V⎓ with a current from 0.5 A.
.
functionality testing .
