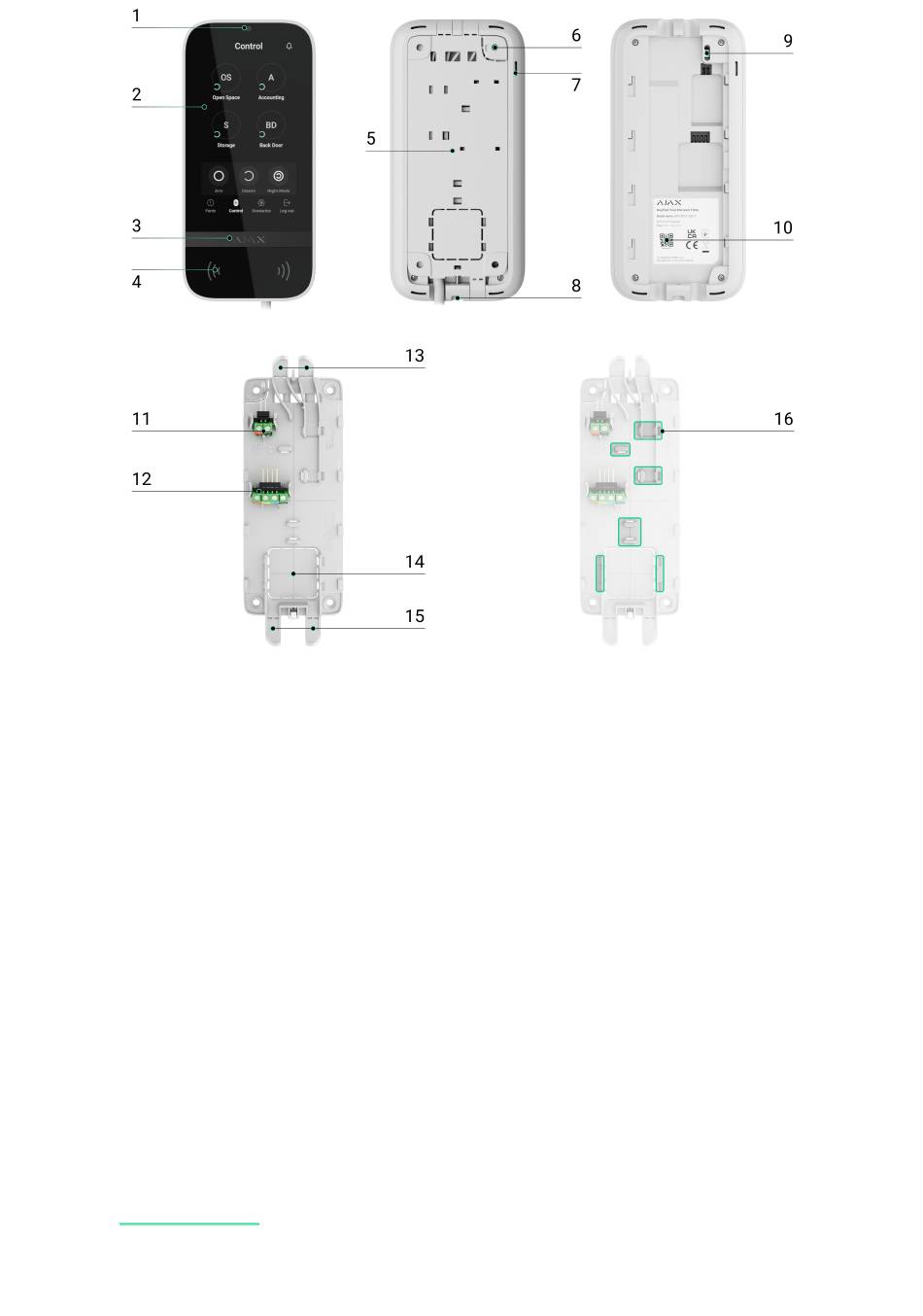

AJAX KeyPad TouchScreen Fibra User Manual page 2

1. Ambient light sensor for automatically adjusting the backlight brightness.
2. IPS touchscreen display with a 5-inch diagonal.
3. Ajax logo with an LED indicator.
4. Cards/key fobs/Bluetooth reader.
5. The SmartBracket mounting panel. To remove the panel, slide it down.
6. Perforated part of the mounting panel for triggering a tamper in case of any
attempt to detach the keypad from the surface. Do not break it off.
7. Built-in buzzer.
8. The hole for attaching the SmartBracket mounting panel with a holding
screw.
9. Tamper button
10. QR code with the device ID for adding the keypad to the Ajax system.
.
