User Manual PROFINET / Modbus Slave
Document code: MN674-A007_ENG
Revision 1.000 Page 12 of 34
Page 12 of 34
Industrial Electronic Devices

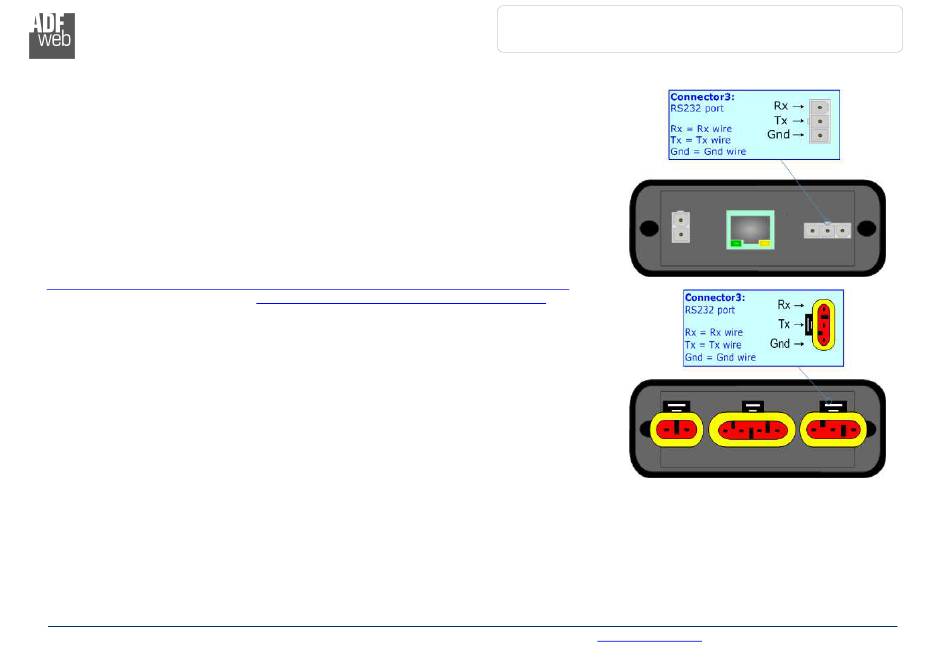

RS232:
The connection of the RS232 in the HD674-A007-2-E4x-xx device must be made with a 3way
MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of
the page.
The connection of the RS232 in the HD67-A007-2-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of
the page.
The maximum length of the cable should be 15m.
Link for Mini-Fit® connectors:
http://www.molex.com/molex/products/group?key=minifit_products&channel=products
Link for SuperSeal 1.5 connectors:
http://www.te.com/catalog/cinf/en/c/10876/956
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
