Troubleshooting

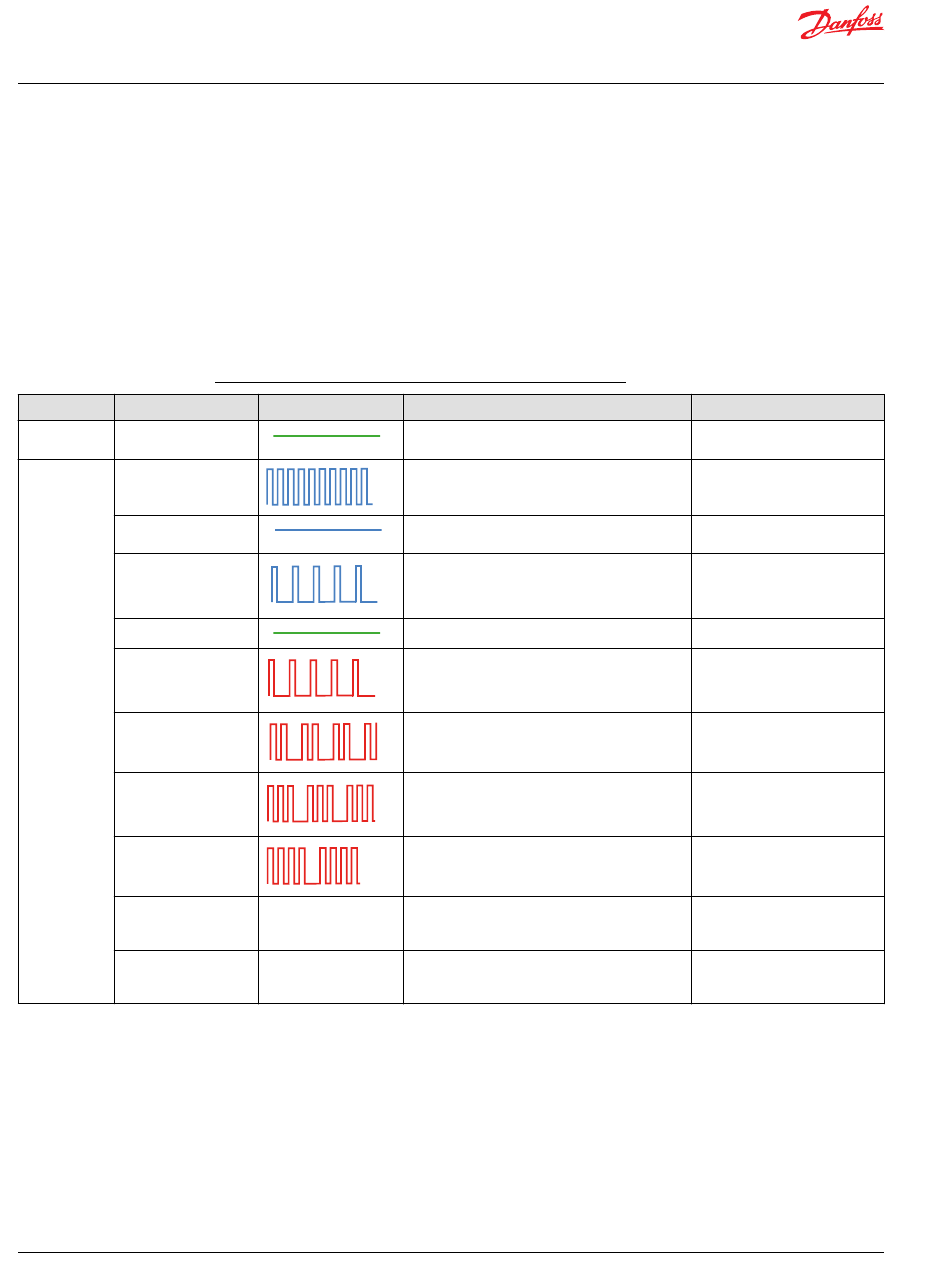

2.4GHz Receiver LED troubleshooting

LED Color and frequency
POWER Green | continuous
STATUS Blue | fast pulses
Blue | continuous
Blue | slow pulses
Green | continuous
Red | slow pulses
Red | double pulses
Red | triple pulses
Red | 4 pulses
Red | 5 pulses
Red | 1 Long + 1 short
pulse
©
10 | Danfoss | July 2024
The troubleshooting LEDs are located on the receiver board or accessible on the outside. Use the
following table to identify faults and corrective action.
In order to reach the internal signaling, the receiver must be accessible, connected and the screws
located on the receiver lid must be unscrewed using the proper screw driver whenever the LEDs are not
externally visible.
The LEDs on the receiver board are POWER, STATUS, DIAG1, DIAG2, ORDER, RELAY, CANERR and CANRUN
in that order.
Please do check the following website for further information:
https://troubleshooting.dps-rct.com/en/customer-service-center
Pulse frequency Description
Switched ON if powered
System is starting; establishing connection with
radio and EEPROM
Waiting for transmitter communication, coming
from ACTIVE STOP
Waiting for transmitter communication, coming
from PASSIVE STOP
Working
EEPROM module missing or corrupt
Radio communication error
Secondary micro error or error between micro
communication
ERROR
After 15 sec Not all expansion boards have been
initialized
CAN Signature ERROR
Action
Check power supply if LED is
switched off.
Wait
Release STOP button and press
START on the transmitter.
Press Start on the Transmitter
Operate
Check EEPROM and reprogram
if necessary
Replace receiver
Replace receiver
Check DIAG1 LED
Check CAN wiring and
Configuration(EEP or Expansion
ID#), Check Bus Termination.
Check Signature in Compliance
Block and EEPROM are the
same.
