- Page 1 User Manual Remote Control IKORE B Transmitter www.danfoss.com...
- Page 2 User Manual IKORE B Transmitter Revision history Table of revisions Date Changed May 2021 Battery information updated, technical information corrected 0201 January 2019 Rebranded to Danfoss Power Solutions 0101 © Danfoss | May 2021 BC292582855621en-000201...
-
Page 3: Table Of Contents
Safety instructions General safety....................................4 Safety warnings....................................4 FCC rules......................................5 Technical description Dimensions and identification..............................6 Startup........................................7 IKORE B detailed description................................8 Maintenance Maintenance tips....................................9 Troubleshooting 2.4GHz................................9 Charger and battery Charger and battery..................................10 BC70K and BT11K specifications...............................10 BC70K Battery Charger Set-up..............................10 BC70K Charger LEDs Status ...............................11... -
Page 4: Safety Instructions
Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Quick reference precautions Cr 1 Tx Cr 1... -
Page 5: Fcc Rules
User Manual IKORE B Transmitter Safety instructions FCC rules This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. Changes or modifications not expressly approved by the manufacturer can void the user's authority to operate the equipment. -
Page 6: Technical Description

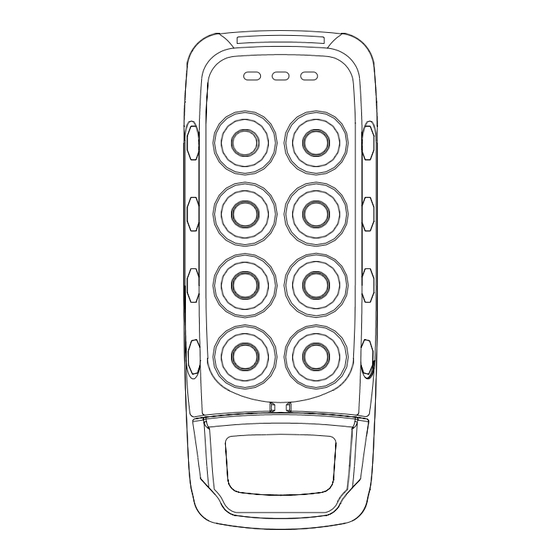

User Manual IKORE B Transmitter Technical description IKORE dimensions and identification Dimensions in mm Status LEDs Hoist selection LEDs Maneuver push buttons STOP button External and extractable EEPROM module Rechargeable Li-Ion batteries BT11K START push button Hoist selection push button ©... -
Page 7: Startup
User Manual IKORE B Transmitter Technical description IKORE startup 1. Insert the EEPROM and fully charged rechargeable BT11K battery. 2. Push and pull out the STOP button. The status LED will blink in blue until it reaches the stand-by mode and then it will turn into a fixed blue. -
Page 8: Ikore B Detailed Description
User Manual IKORE B Transmitter Technical description IKORE B detailed description Technical data Description Value Stop function Cat. 3-Ple EN12849-1 and SIL 3 IEC 61508 / IEC 62061 Ingress Protection rating IP65/NEMA4 Anti-condensation system Frequency band 2405MHz to 2475MHz 20dBm/100mW... -
Page 9: Maintenance
User Manual IKORE B Transmitter Maintenance IKORE B maintenance tips This product is designed for use in an industrial environment that may shorten the product's lifespan. Use these tips to maximize the lifespan of the product. • Use the hook/belt provided with the transmitter to prevent the transmitter from falling •... -
Page 10: Charger And Battery
User Manual IKORE B Transmitter Charger and battery Charger and battery Disposal note: This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical equipment. -
Page 11: Bc70K Charger Leds Status
(keys, coins, etc.) • Always keep contacts clean • Caution! Risk of Explosion if Battery is Replaced by an incorrrect type. Non Danfoss Battery use may void warranty © Danfoss | May 2021 BC292582855621en-000201 | 11... -
Page 12: Bc70K Battery Charger Dimensions
User Manual IKORE B Transmitter Charger and battery BC70K Battery Charger Dimensions Dimensions (mm) 2.57 97.15 103.31 12 | © Danfoss | May 2021 BC292582855621en-000201... - Page 13 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
