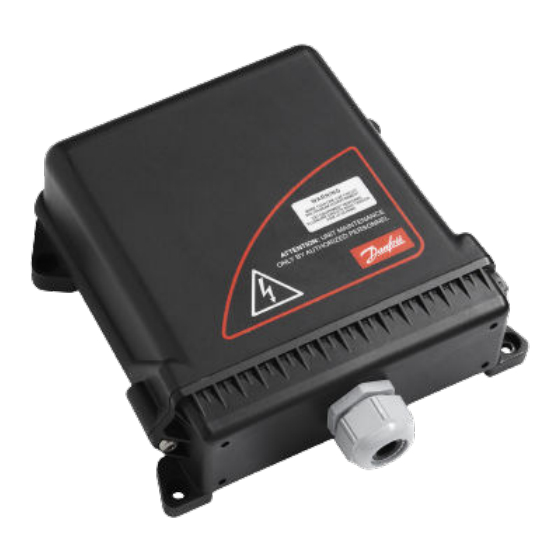

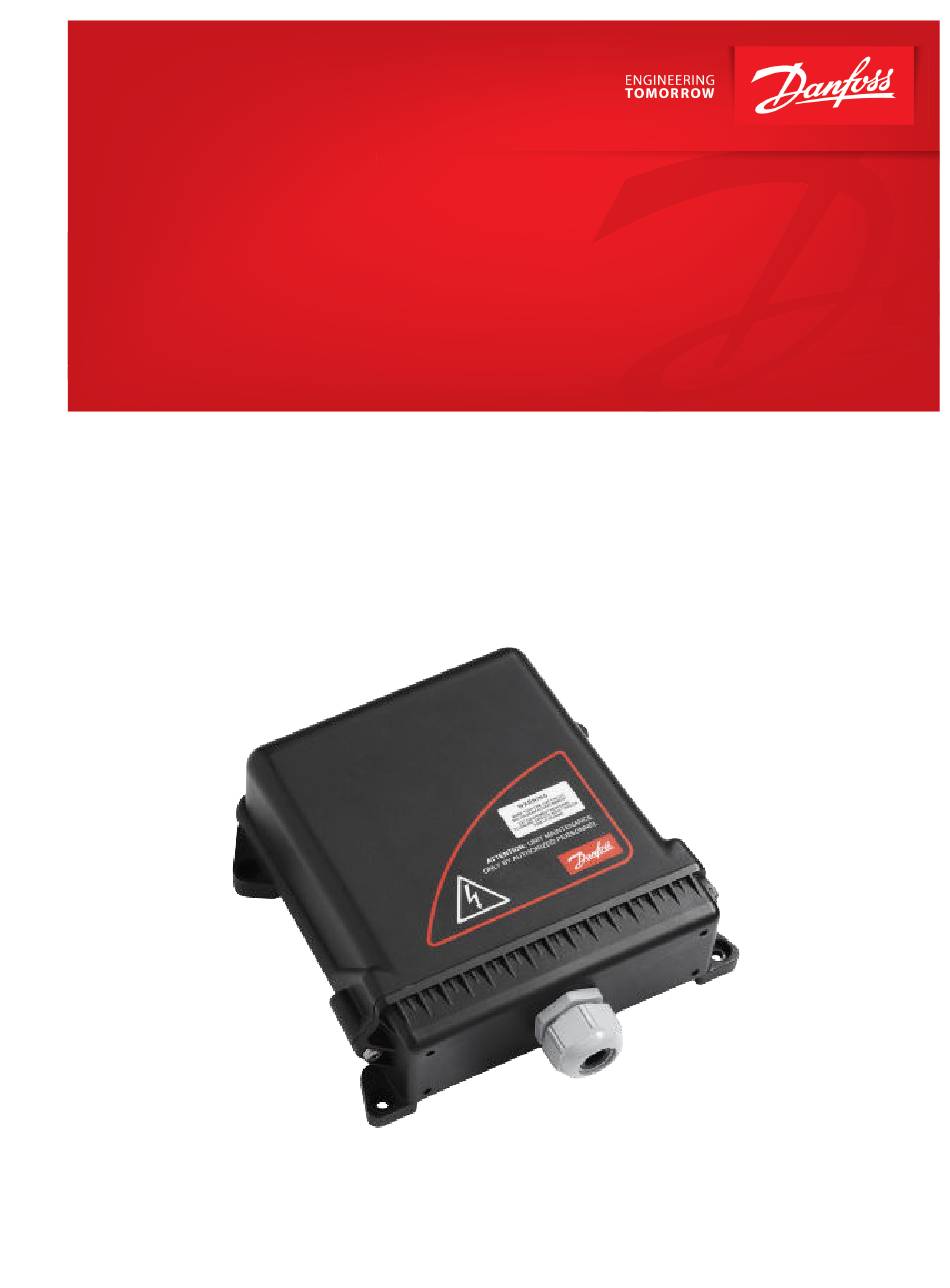

- Page 1 User Manual Remote Control R11 Receiver www.danfoss.com...
- Page 2 User Manual R11 Receiver Revision history Table of revisions Date Changed July 2024 Updated cover manual, safety information, technical description, and pinout information 0201 January 2019 Rebranded to Danfoss Power Solutions 0101 © Danfoss | July 2024 BC293063716706en-000201...
-
Page 3: Table Of Contents
R11 Receiver Contents Safety instructions FCC rules......................................4 General safety....................................4 Safety warnings....................................5 Technical description Dimensions and identification..............................6 R11 detailed description................................7 Installation Receiver installation..................................8 R11 Pinout......................................8 Troubleshooting 2.4GHz Receiver LED troubleshooting........................... 10 © Danfoss | July 2024 BC293063716706en-000201 | 3... -
Page 4: Safety Instructions
The following safety instructions must be read carefully to install and use the product properly, and to keep it in perfect working condition, and to reduce the risk of miss use. • Danfoss recommends the use of ESD PPEs (electrostactic discharge personal protection equipment). •... -
Page 5: Safety Warnings
Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Quick reference precautions Cr 1 Tx Cr 1... -
Page 6: Technical Description
User Manual R11 Receiver Technical description R11 dimensions and identification Dimensions in mm 163.50 Fixing slots (fixed assembly or anti-vibration with magnets M25 cable gland Power supply LR11 logic board Removable EEPROM Signaling LEDs 2.4 GHz radio Wiring connection The use of the anti-vibration kit is recommended in any case ©... -
Page 7: R11 Detailed Description
User Manual R11 Receiver Technical description R11 detailed description Technical data Specification Value Stop function (2.4 GHz) Cat. 4-PLe Ingress protection IP65/NEMA4 Frequency band - ERP 2405MHz to 2475MHz 20dBm/100mW Range Line of sight (guaranteed) 100m AC power supply 48 - 240 Vac / 18 - 30 Vac (500mA) -
Page 8: Installation
User Manual R11 Receiver Installation R11 receiver installation Risk of shock Completely shut down the machine when installing the receiver. Check the power supply and shut off the main switch to disconnect the interface cable between the receiver and the machine's electrical box. - Page 9 K12 Common K6, K7, K8 K12 NC Contact Common K6 NO Contact K12 NO Contact K7 NO Contact K13 Common K8 NO Contact K13 NC Contact K9, K10, K11 K13 NO Contact Common © Danfoss | July 2024 BC293063716706en-000201 | 9...
-
Page 10: Troubleshooting
Check CAN wiring and initialized Configuration(EEP or Expansion ID#), Check Bus Termination. Red | 1 Long + 1 short CAN Signature ERROR Check Signature in Compliance pulse Block and EEPROM are the same. © 10 | Danfoss | July 2024 BC293063716706en-000201... - Page 11 Green | fast pulses Pre operational Status, Receiver waiting for the Controller must send the controller. Operational code to the Receiver. Green | continuous Receiver connected to the CAN network and operational © Danfoss | July 2024 BC293063716706en-000201 | 11...
- Page 12 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
