Installation Guide

Remote Control

IKORE B and R11

Danfoss does not take responsibility for incorrect installation or

any frequency interference.

Chance of unintended machine movement on start up.

Ensure the machine is stopped for the entire duration of the

assembly process.

Keep the work area free and wear protective clothing.

To maximize product life, it is essential to use Danfoss original

BT11K batteries.

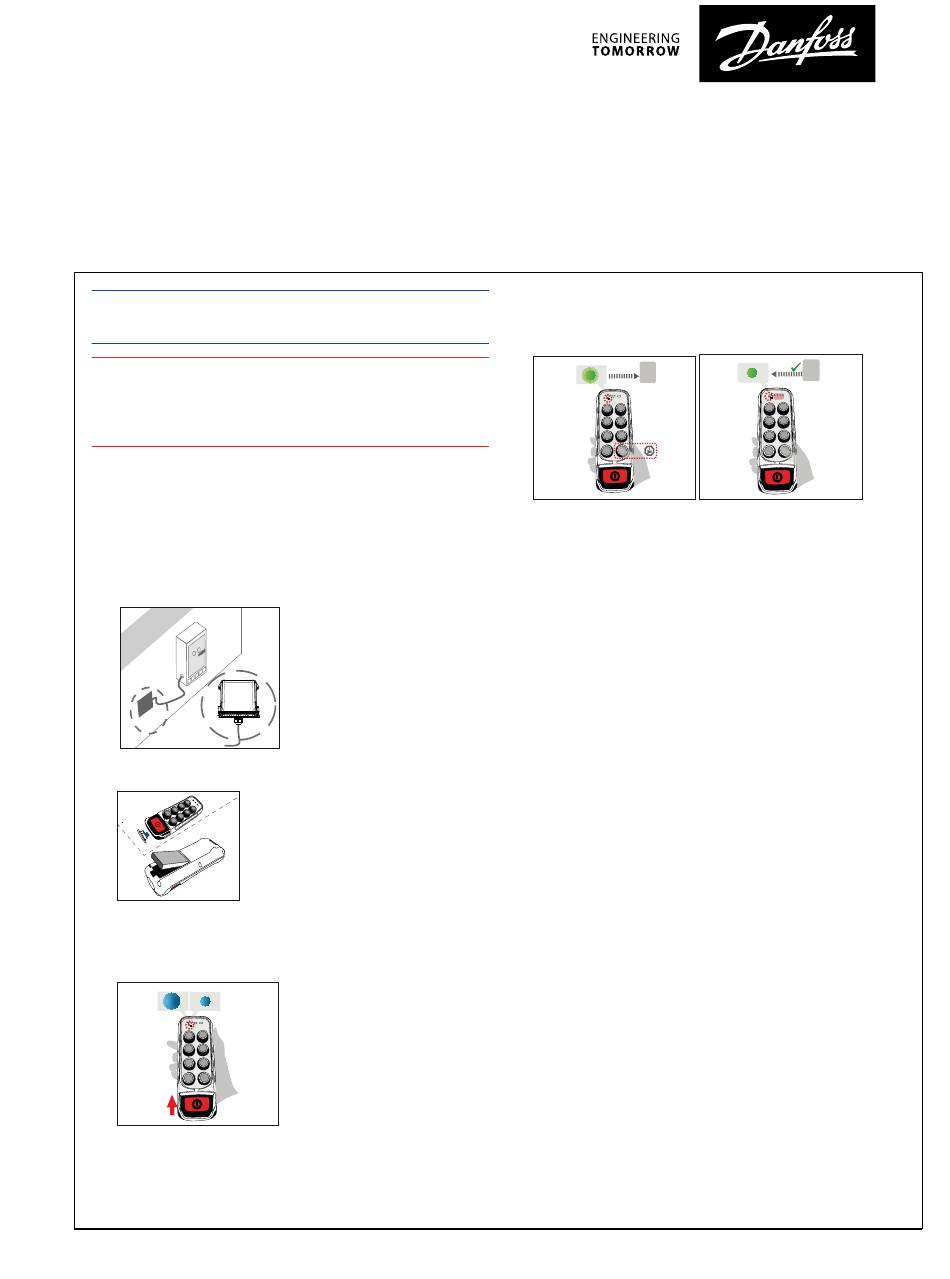

1. Connect the power supply and the outputs according to

the connection block diagram provided with the system.

The configuration of the radio node can last up to 1 minute.

2. Insert the EEPROM and the batteries.

3. Push and pull out the STOP button.

The status LED will pulse blue until the stand by mode is

reach, then it will turn into a continuous blue.

[3]

[2]

[1]

4. Press the start button.

Danfoss | September 2021

The status LED will pulse green until the transmitter is

linked with the receiver. The LED will turn into a continuous

green when the receiver confirms the link.

The system is now fully operational.

AN293564394817en-000201 | 1
