R11 Receiver

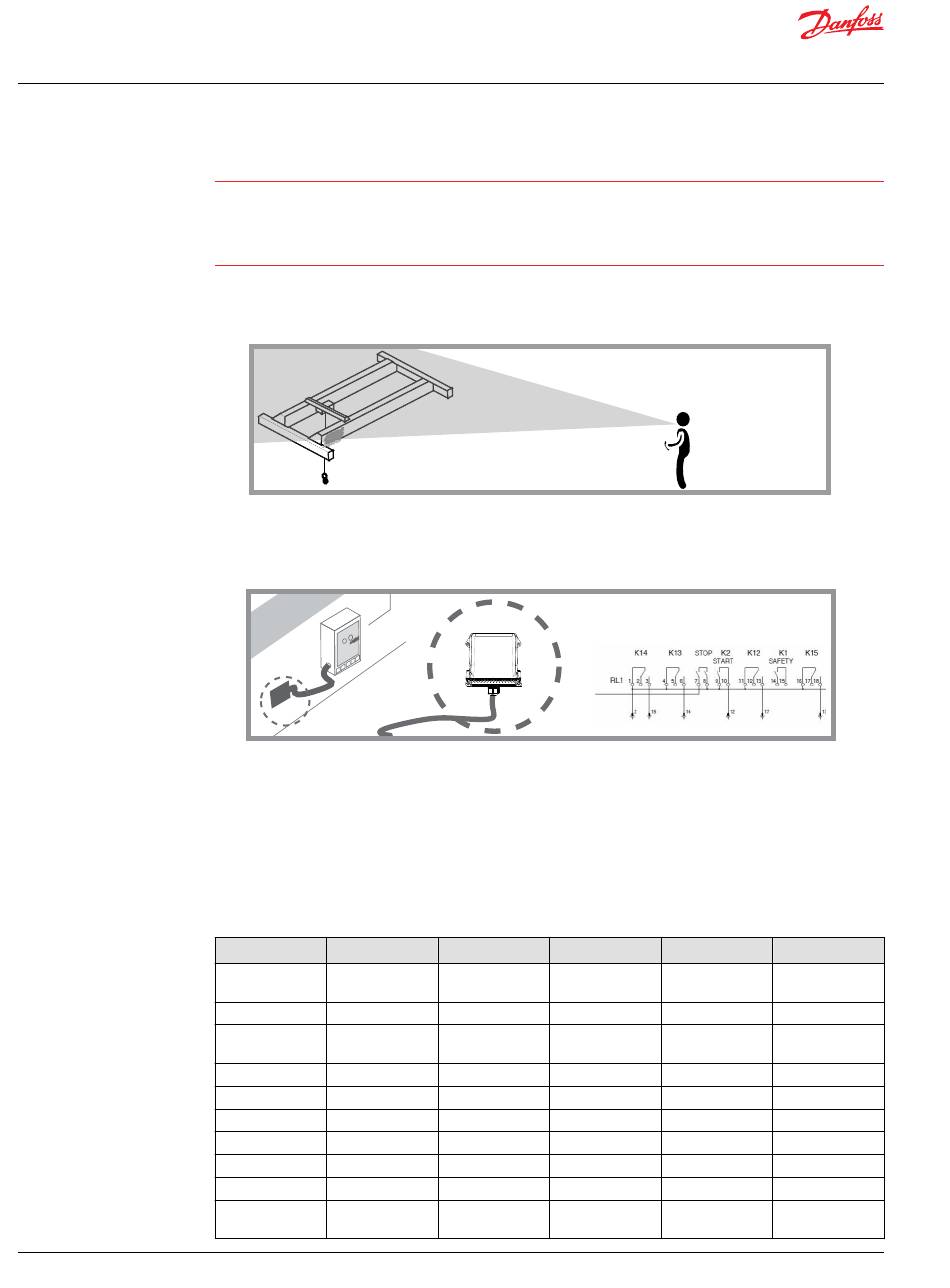

Installation
R11 receiver installation
R11 Pinout
©
8 |
Danfoss | July 2024
Risk of shock
Completely shut down the machine when installing the receiver.
Check the power supply and shut off the main switch to disconnect the interface cable between the
receiver and the machine's electrical box.
1. Find an easily accessible and clear location with a direct vision between the receiver's antenna and
the transmitter's working area.
It is strongly advised to avoid installing the receiver inside a closed metal enclosure.
2. Optional: If high levels of vibration is expected, ensure shock-absorbers are being used.
3. Connect the power supply and the receiver's outputs using the connection block diagram provided
with the system.
4. Check the electrical installation and verify if there is an option to connect the neutral or the ground
cable. In that case, be sure to connect the ground cable.
To guarantee a reliable connection, apply a torque between 0.5 and 0.5 Nm to screw the connection
terminals.
Pin out Description
Connector
Pin
I5
1
2
3
I1
1
Description
Connector
GND
I3
VAC
K3, K4, K5
I2
Common
Pin
Description
1
STOP1 NO
Contact
2
STOP1 Common
3
STOP2 NO
Contact
4
STOP2 Common
5
K1 NO Contact
6
K1 Common
7
K2 Common
8
K2 NC Contact
9
K2 NO Contact
1
K9 NO Contact
