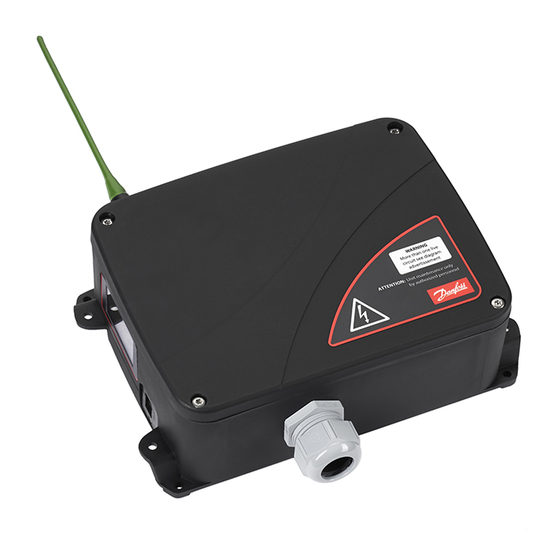

Danfoss R13 F User Manual

Danfoss R13 F User Manual

Receiver
Hide thumbs Also See for R13 F:

Advertisement

Quick Links

User Manual
Remote Control
R13 F Receiver
www.danfoss.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R13 F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Danfoss R13 F

  • Page 1 User Manual Remote Control R13 F Receiver www.danfoss.com...
  • Page 2 User Manual R13 F Receiver Revision history Table of revisions Date Changed July 2024 Updated Technical Description, Installation and Troubleshooting 0201 January 2019 Rebranded to Danfoss Power Solutions 0101 © Danfoss | July 2024 BC292382016572en-000201...
  • Page 3: Table Of Contents

    User Manual R13 F Receiver Contents Safety instructions FCC rules......................................4 General safety....................................4 Safety warnings....................................5 Technical description Dimensions......................................6 Hardware description..................................7 R13F Detailed description................................7 Installation Receiver installation..................................9 Recommended Mechanical Installation...........................9 Recommended Wiring Dimensions............................10 Receiver Pin out....................................10 Troubleshooting 400 - 900MHz Receiver icon troubleshooting........................
  • Page 4: Safety Instructions

    The following safety instructions must be read carefully to install and use the product properly, and to keep it in perfect working condition, and to reduce the risk of miss use. • Danfoss recommends the use of ESD PPEs (electrostactic discharge personal protection equipment). •...
  • Page 5: Safety Warnings

    Avoid knocking or dropping the product. • Do not use the product if a failure is detected. Changes or modifications not approved by Danfoss can void the user's authority to operate this product. Quick reference precautions © Danfoss | July 2024...
  • Page 6: Technical Description

    User Manual R13 F Receiver Technical description R13 F dimensions Dimensions in mm 232.00 216.00 R 2.60 R 2.60 81.55 60.69 219.73 37.50 248.93 Fixing slots (fixed assembly or anti-vibration) M32 cable gland © Danfoss | July 2024 BC292382016572en-000201...
  • Page 7: Hardware Description

    User Manual R13 F Receiver Technical description R13 F hardware description 12 13 External antenna Connector RS232 / RS485 socket Switching Power supply LR13 logic board Data logger connection INXX card socket External EEPROM LCD connection RF Module CAN connector...
  • Page 8 User Manual R13 F Receiver Technical description Technical data (continued) Description Value Frequency band - ERP 433.050 to 434.040 MHz; ERP<1mW 434.040 to 434.790 MHz; ERP<10mW 869.700 to 870.000 MHz; ERP<5mW 902.000 to 928.000 MHz; ERP<1mW 2405MHz to 2475MHz 20dBm/100mW...
  • Page 9: Installation

    User Manual R13 F Receiver Installation R13 F receiver installation The below information describes hazards to be aware of during installation and steps to locate the receiver. Risk of shock Completely shut down the machine when installing the receiver. Check the power supply and shut off the main switch to disconnect the interface cable between the receiver and the machine's electrical box.
  • Page 10: Recommended Wiring Dimensions

    User Manual R13 F Receiver Installation Receiver Receiver Model Hole Diameter(mm) Recommended Screw Comments 5 mm DIN 7985 M5x25 R13, MP20 5 mm DIN 7985 M5x25 5 mm DIN 7985 M5x25 9 mm DIN 7985 M8x25 M6 screw with washer...
  • Page 11 User Manual R13 F Receiver Installation © Danfoss | July 2024 BC292382016572en-000201 | 11...
  • Page 12: Troubleshooting

    User Manual R13 F Receiver Troubleshooting 400 - 900MHz Receiver icon troubleshooting The troubleshooting Display is located on the receiver side, accessible from the outside. Use the following table to identify faults and corrective action. Please do check the following website for further information: https://troubleshooting.dps-rct.com/en/customer-service-center...
  • Page 13 User Manual R13 F Receiver Troubleshooting Icon Description Action Power Fail Check power supply Hardware Error Replace Receiver CAN Error Verify CAN connections and Status. Standby State due to Active STOP Release STOP button and press START on the transmitter.
  • Page 14 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
