Danfoss R11 User Manual page 9

User Manual
R11 Receiver
Installation
©
Danfoss | July 2024

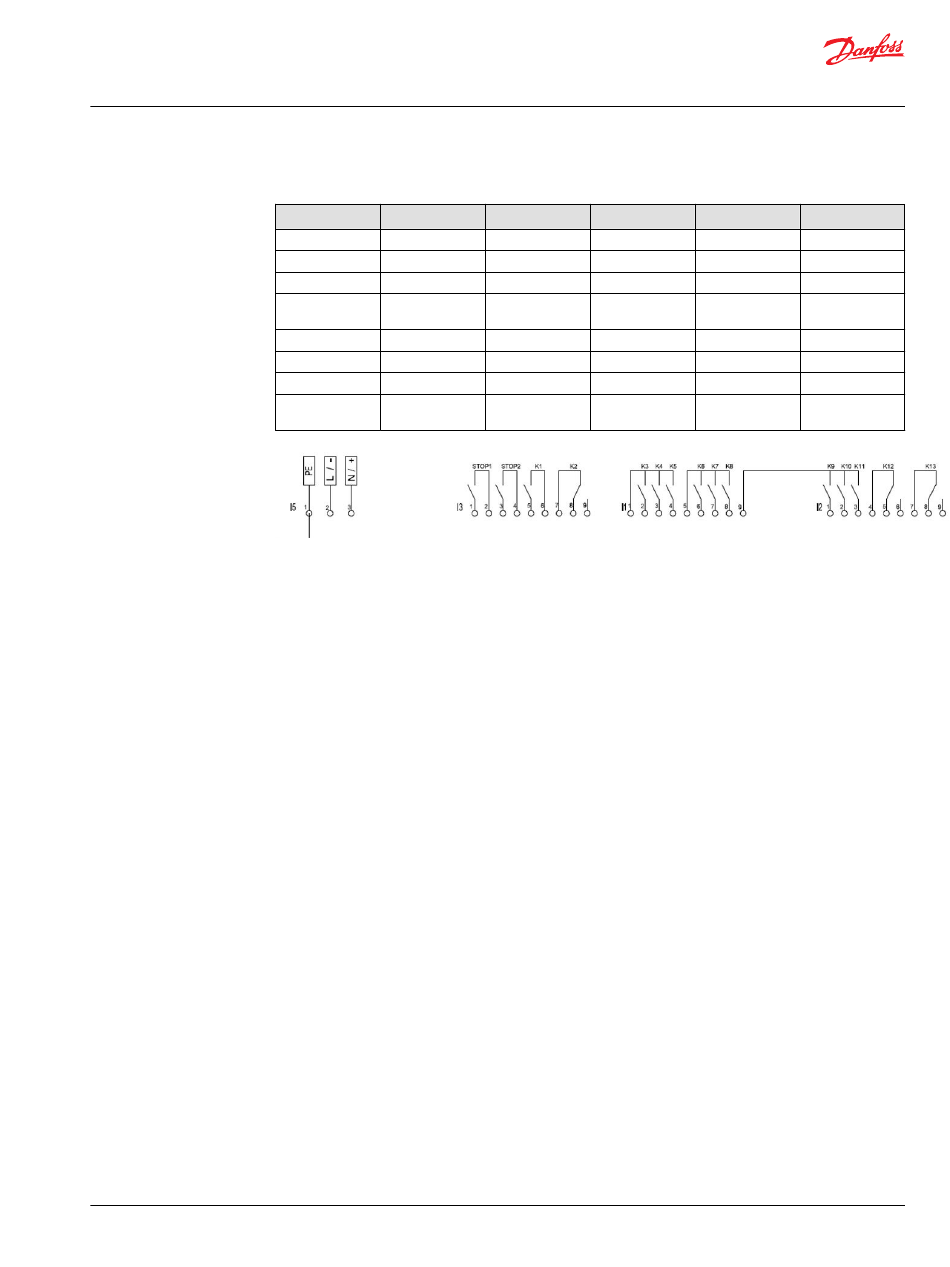

Pin out Description (continued)
Connector Pin
2
3
4
5
6
7
8
9
Description Connector
K3 NO Contact
K4 NO Contact
K5 NO Contact
K6, K7, K8
Common
K6 NO Contact
K7 NO Contact
K8 NO Contact
K9, K10, K11
Common
Pin Description
2 K10 NO Contact
3 K11 NO Contact
4 K12 Common
5 K12 NC Contact
6 K12 NO Contact
7 K13 Common
8 K13 NC Contact
9 K13 NO Contact
BC293063716706en-000201 | 9
