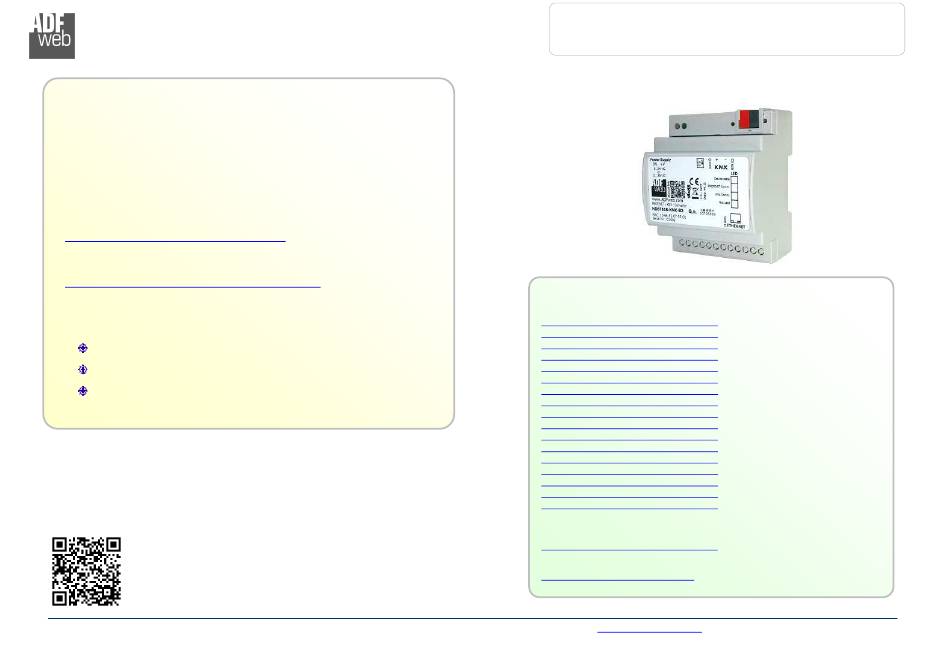

Industrial Electronic Devices
User Manual
Revision 1.001
English

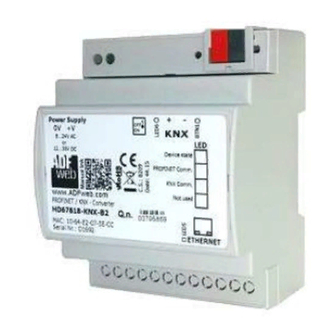

J1939 / KNX - Converter
(Order Code: HD67810-KNX-B2)
for Website information:
www.adfweb.com?Product=HD67810
for Price information:
www.adfweb.com?Price=HD67810-KNX-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual J1939 / KNX
Document code: MN67810_ENG
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67802
www.adfweb.com?Product=HD67803
www.adfweb.com?Product=HD67804
www.adfweb.com?Product=HD67807
www.adfweb.com?Product=HD67808
www.adfweb.com?Product=HD67809
www.adfweb.com?Product=HD67811
www.adfweb.com?Product=HD67812
www.adfweb.com?Product=HD67813
www.adfweb.com?Product=HD67814
www.adfweb.com?Product=HD67815
www.adfweb.com?Product=HD67818
www.adfweb.com?Product=HD67820
www.adfweb.com?Product=HD67821
www.adfweb.com?Product=HD67822
www.adfweb.com?Product=HD67825
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.001
Pagina 1 di 26
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(EtherNet/IP)
(DeviceNet Master)
(DeviceNet Slave)
(M-Bus Master/wM-Bus)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(PROFINET)
(SNMP)
(DMX)
(DALI)
(Ethernet)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67810-KNX-B2
Summary of Contents for ADF Web HD67810-KNX-B2
- Page 1 Pagina 1 di 26 Industrial Electronic Devices User Manual Revision 1.001 English J1939 / KNX - Converter (Order Code: HD67810-KNX-B2) for Website information: www.adfweb.com?Product=HD67810 for Price information: www.adfweb.com?Price=HD67810-KNX-B2 For others KNX products, see also the following links: Converter KNX to www.adfweb.com?Product=HD67801...
-
Page 2: Table Of Contents
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 2 di 26 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 3 di 26 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 4 di 26 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 5 di 26 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67810-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 6 di 26 Industrial Electronic Devices CHARACTERISTICS: The HD67810 is a J1939 / KNX Converter. It has the following characteristics: Up to 1440 bytes in reading and 1440 bytes in writing; Triple isolation between KNX - Power Supply, KNX –... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67810-KNX-B2 Caution: Not reverse the polarity power HD67810-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 8 di 26 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 9 di 26 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Can
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 10 di 26 Industrial Electronic Devices J1939: For terminate the J1939 line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position. Cable characteristics: DC parameter: Impedance... -
Page 11: Knx
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 11 di 26 Industrial Electronic Devices KNX: KNX is the standard that allows the automated and decentralized management of the technologic plans of a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on. KNX can be used in all the applications and functions for the building automations: from lighting to control dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms, to energy management and so on. -
Page 12: Ethernet
The Ethernet ports are used for programming the device. The Ethernet connection must be made using Connector2 of HD67810-KNX-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 13: Use Of Compositor Sw67810
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 13 di 26 Industrial Electronic Devices USE OF COMPOSITOR SW67810: To configure the Converter, use the available software that runs with Windows called SW67810. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 14: New Project / Open Project
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 14 di 26 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “J1939 / KNX - Converter”... -
Page 15: Software Options
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 15 di 26 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... -
Page 16: Set Communication
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 16 di 26 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, KNX and J1939. By Pressing the “Set Communication” button from the main window for SW67810 (Fig. 2) the window “Set Communication”... -
Page 17: Knx Access
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 17 di 26 Industrial Electronic Devices KNX ACCESS: By pressing the “KNX Access” button from the main window for SW67810 (Fig. 2) the “KNX Access” window appears (Fig. 4). The means of the fields are: If the field “Enable”... - Page 18 User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 18 di 26 Industrial Electronic Devices In the field “Poll Time” the delay in ms between two KNX commands is defined (if “On Timer” is checked); In the field “Position” insert the address of the internal array where placing the information; In the field “Bit Mode”...
-
Page 19: Receive Frames
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 19 di 26 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67810 (Fig. 2) the “Receive J1939 Frames” window appears (Fig. The COB inserted in this table contains the Output data of KNX. -
Page 20: Send Frames
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 20 di 26 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67810 (Fig. 2) the “Send Frames” window appears (Fig. 6). The COB inserted in this table contains the Input data of KNX. -
Page 21: Update Device
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 21 di 26 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 22 User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 22 di 26 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67810 device.
-
Page 23: Mechanical Dimensions
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 23 di 26 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67810-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 24: Ordering Informations
Enclosure Type B: 4M, 35mm DIN Rail mounting Device Family HD67810-KNX: J1939 / KNX - Converter Order Code: HD67810-KNX-B2 J1939 / KNX – Converter ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 35mm Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 25: Disclaimer
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 25 di 26 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 26: Warranties And Technical Support
User Manual J1939 / KNX Document code: MN67810_ENG Revision 1.001 Pagina 26 di 26 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
