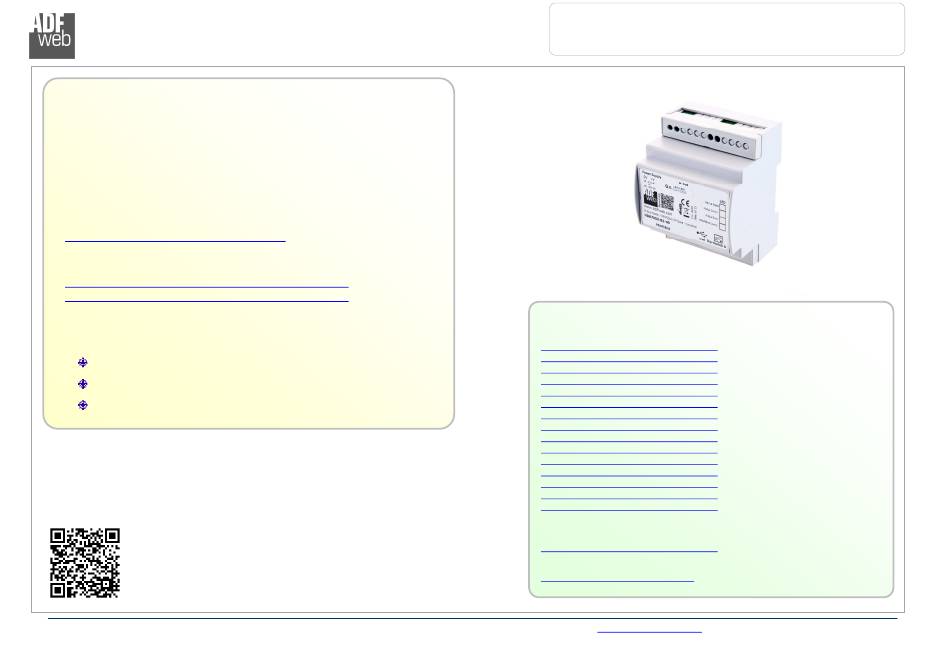

Industrial Electronic Devices
User Manual
Revision 1.002
English
Modbus Master / KNX - Converter
(Order Code: HD67812-KNX-232-B2, HD67812-KNX-485-B2)
for Website information:
www.adfweb.com?Product=HD67812
for Price information:
www.adfweb.com?Price=HD67812-KNX-232-B2
www.adfweb.com?Price=HD67812-KNX-485-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual Modbus Master / KNX
Document code: MN67812_ENG
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67802
www.adfweb.com?Product=HD67803
www.adfweb.com?Product=HD67804
www.adfweb.com?Product=HD67807
www.adfweb.com?Product=HD67808
www.adfweb.com?Product=HD67809
www.adfweb.com?Product=HD67810
www.adfweb.com?Product=HD67811
www.adfweb.com?Product=HD67813
www.adfweb.com?Product=HD67814
www.adfweb.com?Product=HD67815
www.adfweb.com?Product=HD67818
www.adfweb.com?Product=HD67820
www.adfweb.com?Product=HD67821
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.002
Pagina 1 di 28
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(EtherNet/IP)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(M-Bus Master/wM-Bus)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(PROFINET Slave)
(SNMP)
(DMX)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67812-KNX-232-B2
Summary of Contents for ADF Web HD67812-KNX-232-B2
- Page 1 Pagina 1 di 28 Industrial Electronic Devices User Manual Revision 1.002 English Modbus Master / KNX - Converter (Order Code: HD67812-KNX-232-B2, HD67812-KNX-485-B2) for Website information: www.adfweb.com?Product=HD67812 for Price information: www.adfweb.com?Price=HD67812-KNX-232-B2 www.adfweb.com?Price=HD67812-KNX-485-B2 For others KNX products, see also the following links:...
-
Page 2: Updated Documentation
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 2 di 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 3 di 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 4 di 28 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 5 di 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67812-KNX-232-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 6 di 28 Industrial Electronic Devices Figure 1b: Connection scheme for HD67812-KNX-485-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 7 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 7 di 28 Industrial Electronic Devices CHARACTERISTICS: The HD67812 is a Modbus Master / KNX Converter. It has the following characteristics: Up to 1440 bytes in reading and 1440 bytes in writing; Triple isolation between KNX - Power Supply, KNX –...
-
Page 8: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67812-KNX-232-B2 HD67812-KNX-485-B2 Caution: Not reverse the polarity power HD67812-KNX-232-B2 HD67812-KNX-485-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com... -
Page 9: Function Modes
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 9 di 28 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... - Page 10 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 10 di 28 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered...
- Page 11 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 11 di 28 Industrial Electronic Devices RS232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial cable where the pins 2 and 3 are crossed).
- Page 12 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 12 di 28 Industrial Electronic Devices RS485: For terminate the RS485 line with a 220Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;...
- Page 13 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 13 di 28 Industrial Electronic Devices KNX: KNX is the standard that allows the automated and decentralized management of the technologic plans of a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on. KNX can be used in all the applications and functions for the building automations: from lighting to control dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms, to energy management and so on.
- Page 14 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 14 di 28 Industrial Electronic Devices ETHERNET (PROGRAMMING PORT): The Ethernet ports are used for programming the device. The Ethernet connection must be made using Connector2 of HD67812-KNX-xxx-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m.
- Page 15 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 15 di 28 Industrial Electronic Devices USE OF COMPOSITOR SW67812: To configure the Converter, use the available software that runs with Windows called SW67812. It is downloadable on the site www.adfweb.com and its operation is described in this document.
-
Page 16: New Configuration / Open Configuration
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 16 di 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “Modbus Master / KNX - Converter”... -
Page 17: Software Options
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 17 di 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 18: Set Communication
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 18 di 28 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, KNX and Modbus. By Pressing the “Set Communication” button from the main window for SW67812 (Fig. 2) the window “Set Communication”... - Page 19 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 19 di 28 Industrial Electronic Devices KNX ACCESS: By pressing the “KNX Access” button from the main window for SW67812 (Fig. 2) the “KNX Access” window appears (Fig. 4). The means of the fields are: If the field “Enable”...
- Page 20 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 20 di 28 Industrial Electronic Devices In the field “Position” insert the address of the internal array where placing the information; In the field “Bit Mode” insert the start bit of the first byte of the field “Position” where start to insert the data read; In the field “Lenght”...
-
Page 21: Set Access
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 21 di 28 Industrial Electronic Devices SET ACCESS: By pressing the “Set Access” button from the main window for SW67812 (Fig. 2) the window “Set Access” appears. This window is divided in two parts, the "Modbus Read" (Fig. 6) and the "Modbus Write " (Fig. 7). The first part "Modbus Read"... - Page 22 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 22 di 28 Industrial Electronic Devices ODBUS RITE The means of the fields are: If the field “Enable” is checked, the Modbus Request is enabled; In the field “Slave ID”...
-
Page 23: Update Device
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 23 di 28 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 24 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 24 di 28 Industrial Electronic Devices If you know the actual IP address of the device, you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
-
Page 25: Mechanical Dimensions
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 25 di 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10: Mechanical dimensions scheme for HD67812-KNX-xxx-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 26: Ordering Informations
Serial Type 232: RS232 485: RS485 Device Family HD67812-KNX: Modbus Master / KNX - Converter Order Code: HD67812-KNX-232-B2 Modbus Master / KNX – Converter (Modbus port: RS232) Order Code: HD67812-KNX-485-B2 Modbus Master / KNX – Converter (Modbus port: RS485) ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... - Page 27 User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 27 di 28 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
-
Page 28: Warranties And Technical Support
User Manual Modbus Master / KNX Document code: MN67812_ENG Revision 1.002 Pagina 28 di 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
