Industrial Electronic Devices
User Manual
Revision 1.003
English

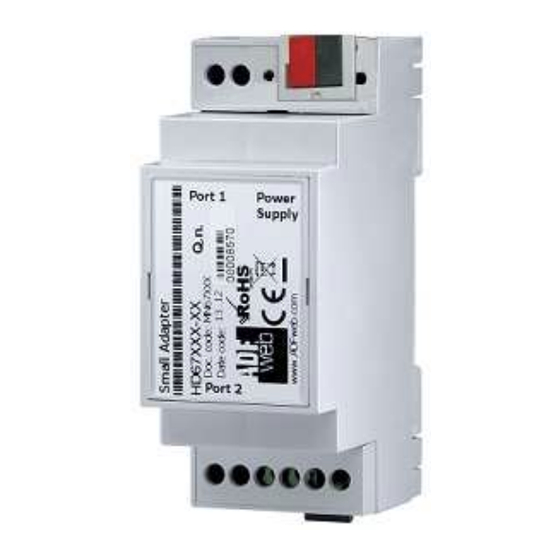

Modbus TCP Master / KNX - Converter
(Order Code: HD67814-KNX-B2)
for Website information:
www.adfweb.com?Product=HD67814
for Price information:
www.adfweb.com?Price=HD67814-KNX-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual Modbus TCP Master / KNX
Document code: MN67814_ENG
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com?Product=HD67628
www.adfweb.com?Product=HD67746
www.adfweb.com?Product=HD67773
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67802
www.adfweb.com?Product=HD67803
www.adfweb.com?Product=HD67804
www.adfweb.com?Product=HD67806
www.adfweb.com?Product=HD67807
www.adfweb.com?Product=HD67808
www.adfweb.com?Product=HD67809
www.adfweb.com?Product=HD67810
www.adfweb.com?Product=HD67811
www.adfweb.com?Product=HD67812
www.adfweb.com?Product=HD67813
www.adfweb.com?Product=HD67815
www.adfweb.com?Product=HD67818
www.adfweb.com?Product=HD67820
www.adfweb.com?Product=HD67821
www.adfweb.com?Product=HD67825
www.adfweb.com?Product=HD67830
www.adfweb.com?Product=HD67947
www.adfweb.com?Product=HD67B18
www.adfweb.com?Product=HD67B41
www.adfweb.com?Product=HD67B79
www.adfweb.com?Product=HD67C67
www.adfweb.com?Product=HD67D27
www.adfweb.com?Product=HD67F27
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.003
Pagina 1 di 27
(S7comm)
(IEC 61850 Server)
(IEC 61850 Client)
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(EtherNet/IP Master)
(EtherNet/IP)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(M-Bus Master)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Slave)
(PROFINET)
(SNMP)
(DMX)
(Ethernet)
(NMEA 2000)
(MQTT)
(OPC UA Client)
(OPC UA Server)
(PROFINET Master)
(EnOcean)
(LoRaWAN)
(LoRaWAN Gateway)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67814-KNX-B2
Summary of Contents for ADF Web HD67814-KNX-B2
- Page 1 Pagina 1 di 27 Industrial Electronic Devices User Manual Revision 1.003 English Modbus TCP Master / KNX - Converter For others KNX products, see also the following links: (Order Code: HD67814-KNX-B2) Converter KNX to www.adfweb.com?Product=HD67628 (S7comm) for Website information: www.adfweb.com?Product=HD67746 (IEC 61850 Server) www.adfweb.com?Product=HD67814...
-
Page 2: Table Of Contents
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 2 di 27 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 3 di 27 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 4 di 27 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 5 di 27 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67814-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 6 di 27 Industrial Electronic Devices CHARACTERISTICS: The HD67814 is a Modbus TCP Master / KNX Converter. It has the following characteristics: Up to 1440 bytes in reading and 1440 bytes in writing; Triple isolation between KNX - Power Supply, KNX –... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67814-KNX-B2 Caution: Not reverse the polarity power HD67814-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 8: Function Modes
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 8 di 27 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 9 di 27 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Knx
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 10 di 27 Industrial Electronic Devices KNX: KNX is the standard that allows the automated and decentralized management of the technologic plans of a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on. -
Page 11: Ethernet
The Ethernet port is used for the Modbus TCP communication and for programming the device. The Ethernet connection must be made using Connector2 of HD67814-KNX-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 12: Use Of Compositor Sw67814
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 12 di 27 Industrial Electronic Devices USE OF COMPOSITOR SW67814: To configure the Converter, use the available software that runs with Windows called SW67814. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Project / Open Project
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 13 di 27 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “Modbus TCP Master / KNX - Converter”... -
Page 14: Software Options
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 14 di 27 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 15: Set Communication
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 15 di 27 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, KNX and Modbus TCP. By Pressing the “Set Communication” button from the main window for SW67814 (Fig. 2) the window “Set Communication”... -
Page 16: Knx Access
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 16 di 27 Industrial Electronic Devices KNX ACCESS: By pressing the “KNX Access” button from the main window for SW67814 (Fig. 2) the “KNX Access” window appears (Fig. 4). Figure 4: “KNX Access”... - Page 17 User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 17 di 27 Industrial Electronic Devices In the field “Priority” the Priority of the KNX message is defined. You can choose between the following: System (Highest); Urgent; Normal;...
-
Page 18: Set Access
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 18 di 27 Industrial Electronic Devices SET ACCESS: By pressing the “Set Access” button from the main window for SW67814 (Fig. 2) the window “Set Access” appears. This window is divided in two parts, the "Modbus Read"... - Page 19 User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 19 di 27 Industrial Electronic Devices In the field “Type” insert the data type of the register you would like to read. You can choose between the following: Coil Status;...
- Page 20 User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 20 di 27 Industrial Electronic Devices ODBUS RITE Figure 6: “Set Access Modbus Write” window The means of the fields are: If the field “Enable” is checked, the Modbus Request is enabled; In the field “Slave IP Address”...
- Page 21 User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 21 di 27 Industrial Electronic Devices In the field “Max Error” is the number of errors continues that the gateway waits before suspending the poll until the next reboot. If is set to zero this function is disabled;...
-
Page 22: Update Device
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 22 di 27 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 23 User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 23 di 27 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67814 device. Warning: If Fig.
-
Page 24: Mechanical Dimensions
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 24 di 27 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67814-KNX-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 25: Ordering Informations
Enclosure Type B: 4M, 35mm DIN Rail mounting Device Family HD67814-KNX: Modbus TCP Master / KNX - Converter Order Code: HD67814-KNX-B2 - Modbus TCP Master / KNX – Converter ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 35mm Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 26: Disclaimer
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 26 di 27 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 27: Warranties And Technical Support
User Manual Modbus TCP Master / KNX Document code: MN67814_ENG Revision 1.003 Pagina 27 di 27 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
