- Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P24 ENG Rev. 12/2023...

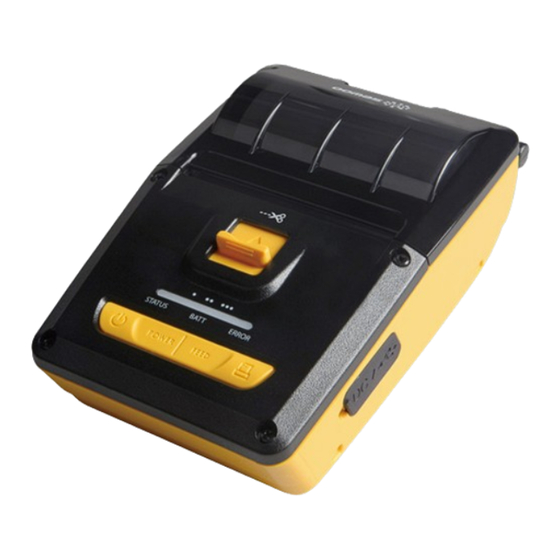

- Page 2 MOBILE PRINTER MODEL : LK-P24 USER’S MANUAL All specifications are subject to change without notice...
- Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including 2) T his device must accept any interference received, interference that may cause undesired operation. Tim Kloeker 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA NA_Sales@miniprinter.com...
- Page 4 Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 5: Table Of Contents
Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. AMC(Advanced Manual Cutter) BUTTON 5. Usage and Installation 5-1. Control Panel Usage 5-2. Battery Installation 5-3. Charging Battery 5-4. Charging Cradle (Optional) 5-5. Set Cradle Usage (Optional) 5-6. Battery Removal 5-7. - Page 6 5-11. Self Test 6. Peripheral Connection 6-1. Bluetooth Connection (Optional) 6-2. Wi-Fi Connection (Optional) 6-3. NFC Connection (Optional) 6-4. Interface Cable Connection 7. Cleaning the Printer 8. JAM Error 9. Roll Media Specification 10. Black Mark 11. Printer Specification 12. Utilities 13.
-
Page 7: Safety Precautions
1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands... - Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.
-
Page 9: Unpacking
2. Unpacking Standard Printer Battery Belt Strap+Bracket Quick Manual Charger USB Cable Roll paper Optional Set Cradle Leather Case Belt Clip (Charging Cradle) AC Cord Adaptor Shoulder Strap... -
Page 10: Product Overview
3. Product overview Front AMC Button - Button Up: Cutting the paper - Button down: Opening the cover Control Panel Power Button Paper Feed Button DC Power Bottom Battery Belt Clip Hole... -
Page 11: Amc(Advanced Manual Cutter) Button
4. AMC BUTTON (Advanced Manual Cutter) AMC Button AMC function gives the convenient way for users to cut papers. Button Up Press the button up to cut the paper. Button Down Press the button down to open the cover. Please press the button down and open the cover in situations such as cleaning the head, replacing a paper, and having a paper jam error. -
Page 12: Usage And Installation
5. Usage and Installation 5-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. Button When you press this button while the printer is powered on, the printer will turn off. -
Page 13: Battery Installation
5-2. Battery Installation HOOK OPEN Please make sure you hear the closing sound of the upper cover. CLOSE 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer. -
Page 14: Charging Battery
5-3. Charging Battery LAMP 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. The charging status LED Status charging charging complete Charging Lamp... -
Page 15: Charging Cradle (Optional)
5-4. Charging Cradle Optional 1 Place the printer into the charging cradle as shown above. 2 Connect the DC JACK to the charging cradle. 3 Plug the power cord into an electrical outlet. 4 Once the charging is completed, remove the printer from the charging cradle. The charging status LED Status charging... -
Page 16: Set Cradle Usage (Optional)
5-5. Set Cradle Usage Optional Press the PUSH button to pop out the cradle connector. Align the second cradle with the connector of the existing cradle, and connect the cradles by pressing down. (To disassemble, repeat these steps in reverse order) -
Page 17: Battery Removal
5-6. Battery Removal OPEN REMOVE Remove the battery as shown. -
Page 18: Paper Roll Installation
5-7. Paper Roll Installation CAUTION Make sure to be careful of the HOT head. AMC BUTTON Press the AMC button down to open Place the paper roll as shown. Make the paper cover. sure the paper is placed in the right direction. -
Page 19: Belt Clip & Strap
5-8. Belt Clip & Strap Belt Strap+Bracket Usage Prepare the belt strap, bracket, and 2 Put the strap into the hole on the top of screws. the belt bracket. Slide the strap into the loop on the Make sure the strap is fastened tight back side. - Page 20 After connecting the strap and bracket, insert the screws into the bracket hole. Use a screw driver to tighten the bracket.
-
Page 21: Belt Clip Usage (Optional)
5-9. Belt clip Usage Optional Insert the belt clip screw into the hole of the belt clip. Tighten the screw with a screwdriver as shown in the picture above. -
Page 22: Leather Case Usage (Optional)
5-10. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Connect the shoulder strap to leather Velcro. case rings. -
Page 23: Self Test
5-11. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To enter hex dump mode, press the FEED button once more. 02 If the FEED button is not pressed, the self-test will automatically finish after 3 seconds. - Page 24 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.
-
Page 25: Peripheral Connection
6. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 6-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities (PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer. -
Page 26: Nfc Connection (Optional)
6-3. NFC Connection Optional The printer can be connected to devices equipped with NFC communication capabilities. Use the NFC connection function supported by the device to connect to the printer. NOTE - Please refer to the configuration manual for details. - NFC is only compatible with Bluetooth. -
Page 27: Interface Cable Connection
6-4. Interface Cable Connection COVER 1 Flip over the connector cover and connect USB cable to the printer connector. NOTE Only use cables included with the printer. (USB) 2 Connect the interface cable to the USB port of the device (PDA, PC, etc.). -
Page 28: Cleaning The Printer
7. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning. -
Page 29: Jam Error
8. JAM Error CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button down to open the printer cover. NOTE NOTE Please make sure you hear If the cover is not shut down the closing sound of the completely, the printer may... -
Page 30: Roll Media Specification
9. Roll Media Specification Core Diameter (A) 12.5 mm Roll Max.Diameter (B) 40 mm Max.Media Width (C) 58 mm Min.Media Thickness 0.06 mm Protect the printhead from sand, grit, and other hard particles during printing and storage. Keep the cover closed. Even very small foreign particles may cause severe harm to the printhead. -
Page 31: Black Mark
10. Black Mark 10 ~ 58 48 (PRINT WIDTH) 58 (MAX PAPER WIDTH) -
Page 32: Printer Specification
11. Printer Specification Printing Method Direct Thermal Printing Speed 100mm/s Resolution 203 DPI FontA(12x24), FontB(9x17), Font0/1/2/4/5/6/7, TTF Font0, FontA~H, FontGS Font1~8, Character Asian Font(KOR, JPN, CHN_GB2312, CHN_BIG5), Resident TTF, Downloadable TTF, Downloadable Bitmap EAN-8, EAN-8(+2+5), EAN-13, EAN-13(+2+5), Codabar, Code11, Code39, Code93, Code128, ITF, UPC-A(+2+5), UPC-E, UPC-E(+2+5), Planet, Barcode QR, PDF417, MicroPDF417, Maxicode,... - Page 33 Standard Interface Wi-Fi(802.11a/b/g/n), Bluetooth Smart Option Ready(Bluetooth4.2+BLE + NFC Tag) Input AC100 ~ 240V, 50 / 60Hz Battery Charger Output 8.4V, 800 ~ 1400mA Battery type Li-ion Battery Output 7.4V, 1450mAh Charging time 1.7Hrs (36Hrs stand-by) Cutter AMC(Advanced Manual Cutter) Size (W x L x D) 81.5 x 121.4 x 45.3 mm IP43...
-
Page 34: Utilities
This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication, (ESC/POS) and able to printer settings. -
Page 35: S/W
Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS. - Page 36 QR Page...
