Summary of Contents for SEWOO LK-P21
- Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P21B ENG Rev. F 01 / 2021...
- Page 2 MOBILE PRINTER MODEL � LK�P21 USER’S MANUAL All specifi cations are subject to change without notice...
- Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including 2) T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...
- Page 4 Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronics equipment.
-
Page 5: Table Of Contents
Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control Panel Usage 4-2. Battery Installation 4-3. Charging Battery 4-4. Charging Cradle (Optional) 4-5. Car Charger Usage (Optional) 4-6. Battery Removal 4-7. Belt Clip Usage 4-8. - Page 6 4-11. MSR Usage (Optional) 5. Peripheral Connection 5-1. Bluetooth Connection (Optional) 5-2. Interface Cable Connection 6. Printer Specification 7. Certification 8. Utilities 9. S/W...
-
Page 7: Safety Precautions
1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands... - Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.
-
Page 9: Unpacking
2. Unpacking Standard Printer Battery Belt Clip Charger USB Cable Serial Cable Roll Paper Quick Manual Optional Battery Cradle Car Adapter Leather Case Shoulder Strap... -
Page 10: Product Overview

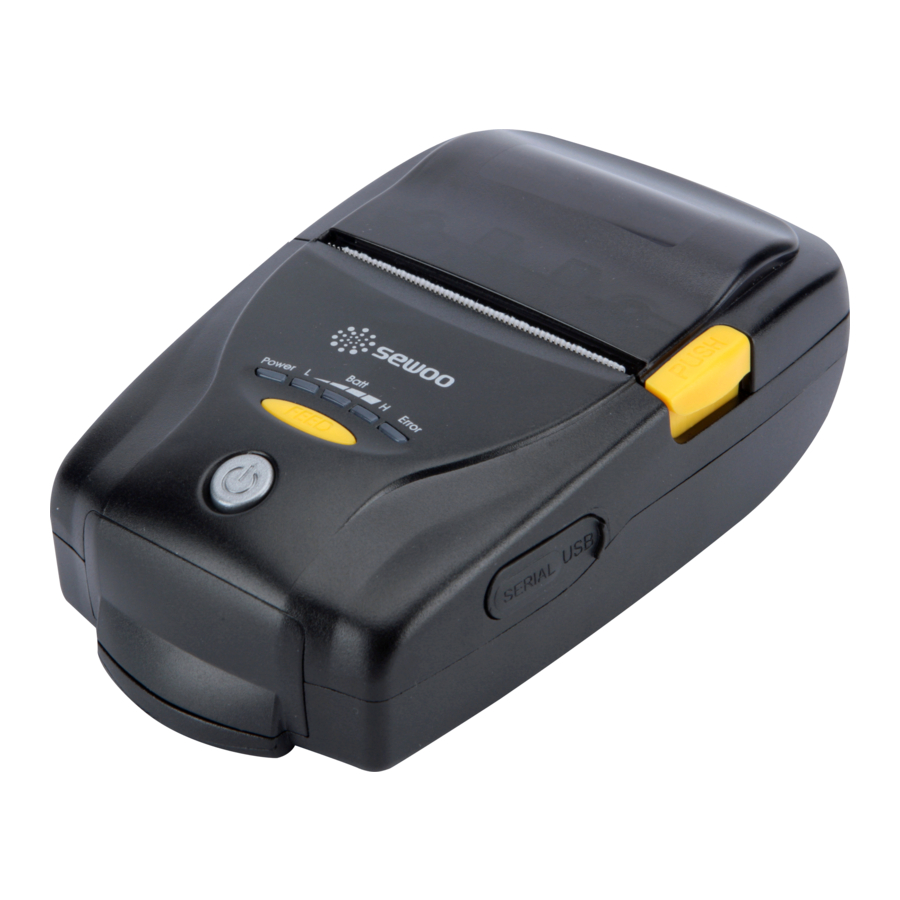

3. Product overview Front Paper Feed Button Power switch Open Button SERIAL Bottom Battery Belt Clip Hole DC Power... -
Page 11: Usage And Installation
4. Usage and Installation 4-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power Button on. -
Page 12: Battery Installation
4-2. Battery Installation Hook 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer. -
Page 13: Charging Battery
4-3. Charging Battery 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. The charging status LED Status charging charging complete Charging Lamp Green... -
Page 14: Charging Cradle (Optional)
4-4. Charging Cradle Optional DC Jack Lamp 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the electrical outlet. 3 Plug the power cord into the electrical outlet. 4 Once the charging is completed, remove the battery from the charger. The charging status LED Status charging... -
Page 15: Car Charger Usage (Optional)
4-5. Car Charger Usage Optional Printer Battery holder Connect the car charger into the printer or battery cradle. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Only use the car charger included with the printer. -
Page 16: Battery Removal
4-6. Battery Removal ˚ Rotate the Belt clip 180 degrees so it points upward. After flipping the belt clip up, remove the battery as shown above. -
Page 17: Belt Clip Usage
4-7. Belt clip Usage Insert the belt clip screw into the hole of the belt clip. Tighten the screw with a screwdriver as shown in the picture above. -
Page 18: Paper Roll Installation
4-8. Paper Installation Press the PUSH button to open the Insert the paper in the correct direction. paper cover. See the image above. Pull a short length of paper out of the Tear off the additional paper using tear printer and close the cover. bar. -
Page 19: Leather Case Usage (Optional)
4-9. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Fasten to the belt by using the clip at the Velcro. rear of the leather case. -
Page 20: Self Test
4-10. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To print ASCII pattern additionally, press the Feed button once more. 02 After printing ASCII pattern, the self test will be finished automatically. - Page 21 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.
-
Page 22: Msr Usage (Optional)
4-11. MSR Usage Optional Insert and swipe the card in the direction of the arrow as shown in the picture. -
Page 23: Peripheral Connection
5. Peripheral Connection This product can communicate with other devices via Bluetooth, a communication cable. 5-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities(PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer. -
Page 24: Interface Cable Connection
5-2. Interface Cable Connection Serial 1 Connect USB or Serial cable to the connector on the printer. NOTE - Only use cables included with the printer. 2 Connect the interface cable to the USB port of the device(PDA, PC, etc.). -
Page 25: Printer Specification
6. Printer Specification Printing Method Direct Thermal Printing Speed 80 mm/s Resolution 203 DPI FontA(12x24), FontB(9x17), Asian Font(KOR, ESC/POS JPN, CHN_GB2312, CHN_BIG5) Font0/1/2/4/5/6/7, 24x24 Asian Font(KOR, Character CPCL JPN, CHN_GB2312, CHN_BIG5), Resident TTF, Downloadable TTF FontA~H, FontGS, Resident TTF(Font0), Downloadable TTF - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS UPC-E, Codabar, Code93, Code128... - Page 26 Paper type Thermal paper Width Max. 58 mm Thickness 0.06 mm ~ 0.09 mm Paper Roll Max 48 mm Diameter Roll Core 12.5 mm ± 0.5 mm 50 km Continuous printing: 29min Reliability Battery Stand by: 19hours Printing length: 130m Communications Standard Serial(RS-232C), USB, Bluetooth Class2...
-
Page 27: Certification
7. Certification FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions: 01 This Device may not cause harmful interface, and 02 This device must accept any interference received, including interference that may cause undesired operation. - Page 28 WARNING Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. CAUTION Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.
-
Page 29: Utilities
This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication, (ESC/POS) and able to printer settings. -
Page 30: S/W
Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS. - Page 31 PATENT...
