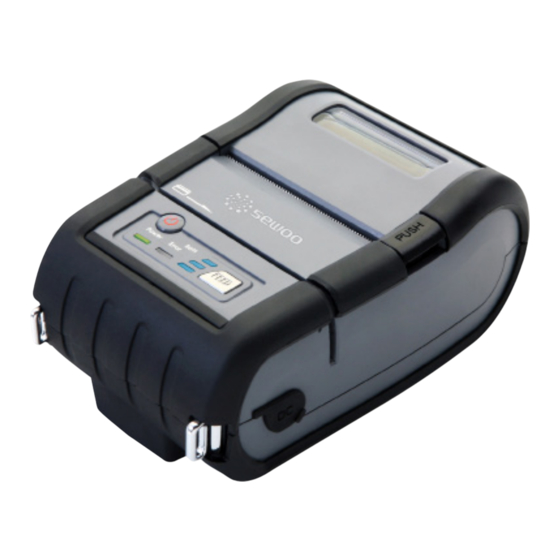

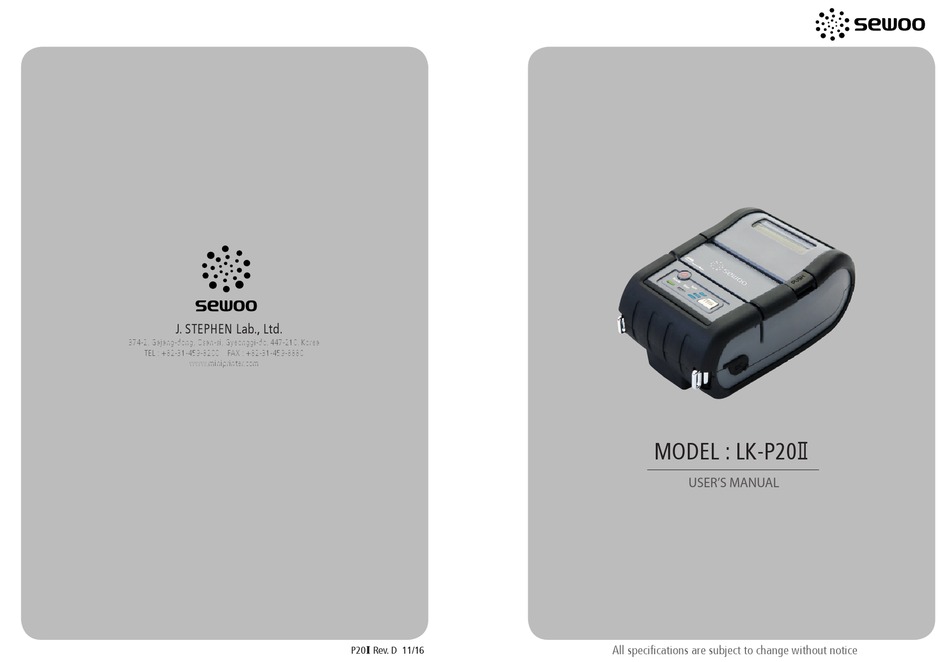

- Page 1 J. STEPHEN Lab., Ltd. 374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P20 Ⅱ USER’S MANUAL P20 Ⅱ Rev. D 11/16 All specifications are subject to change without notice...
-
Page 2: Table Of Contents
Table of Contents RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION 1. Safety Caution 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control panel usage 4-2. Battery installation 4-3. -
Page 3: Safety Caution
1. Safety Caution For higher reliability and safety, consider the following precautionary measures. WARNING Read and follow the instructions carefully before running of the product. Failure to follow these instructions could result in fire, electric shock, or other injuries, or property damage Indication Prohibition Must follow... -
Page 4: Unpacking
2. Unpacking 3. Product Overview Front Standard MSR slot (Optional) Power switch Open button Printer Battery Belt Buckle Roll Paper Paper feed button IC Card Slot (Optional) Charger USB Cable Quick Manual DC power Rear Belt clip hole Battery Optional Battery Recharger Cigar Jack Charger Serial Cable... -
Page 5: Usage And Installation
4. Usage and Installation 4-2 Battery Installation 4-1 Control panel usage Hook Button Name function This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 seconds button and it will turn on the power. -
Page 6: Charging Battery
4-3 Charging battery 4-4 Battery charger usage Optional Lamp Lamp 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. 3. Plug the power code to electrical outlet. 1. -
Page 7: Usage Of Cigar Jack For Charging (Optional)
4-6 Battery removal 4-5 Usage of Cigar Jack for charging Optional Printer Rotate the belt clip as shown Battery holder Connect the car cigar JACK charger into the printer or battery holder. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Remove the battery as shown Use the Cigar Jack offered by the manufacturer... -
Page 8: Belt Clip Usage
4-7 Belt Clip usage 4-8 Loading the media. Insert screw into belt clip. Place the paper roll as shown. Make sure the paper is placed in Press the cover open button and open right direction. Tighten the screw with driver as shown. Pull a short length of paper out of the printer and close the cover. -
Page 9: Shoulder Strap Usage Optional
4-9 Shoulder Strap Usage 4-10 Leather case usage Optional Optional Place the end of strap into the hook of Insert the strap into the hook on shoulder strap. the printer. Open the leather case Place the printer into the leather case Close the Velcro and stick the cover. -
Page 10: Self Test
4-11 Self Test The sample of self test printout When the printer is installed initially or when you face a problem, you can run the self test and check the information about -Control Circuit, Mechanism, Print Quality, ROM Version After checking with self-test and no issues are found, you can examine other devices and software. -
Page 11: Msr Usage (Optional)
4-13 IC CARD usage 4-12 MSR usage Optional Optional Insert the card in the direction of the arrow as shown in the picture. Insert and swipe the card in the direction of the arrow as shown in the picture. -
Page 12: Peripherals Connection
5. Peripherals Connection This product can communicate with other devices via 5-3 Interface Cable Connection Bluetooth or Wi-Fi communication and cable. Serial 5-1 Bluetooth connection Optional 1. The Printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.) 2. -
Page 13: Printer Cleaning
7. Standard roll media specification 6. Printer cleaning If the interior of the printer is dusty, printing quality can lowered. In such a case, follow the instructions below to clean up the printer. NOTE 1. Make sure to turn the printer power off prior to cleaning 2. -
Page 14: Black Mark
9. Printer Specification 8. Black Mark 9-1. Specification Printing Method Direct Thermal Printing Speed 80mm/sec Resolution 203 DPI Character ESC/POS FontA(12x24), FontB(9x17), Asian Font(KOR, JPN,CHN_GB2312,CHN_BIG5) CPCL Font0/1/2/4/5/6/7, 24x24 Asian Font(KOR, JPN,CHN_GB2312,CHN_BIG5), Resident TTF, 10~58 Downloadable TTF 14.7 FontA~H, FontGS,Resident TTF(Font0), Download- able TTF Font1 ~ 8 Barcode... - Page 15 Paper Paper type Thermal Paper 340g (With Battery : 440g) Weight Max. 58mm Width Environmental sealing IP42, IP54 (With Protection case) 65μm Thickness Temperature Operation -10~50℃ External Diameter Max. Φ 48mm Storage -20~60℃ Internal Diameter 12.5mm +/-0.5mm Humidity Operation 10 ~ 80% Reliability 50km storage...
-
Page 16: Certification
10.Certification FCC Information CAUTION Antenna shall be mounted in such a manner to minimize the potential This device complies with part 15 of the FCC Results. Operation is subject to for human contact during normal operation. The antenna should not the following two conditions: be contacted during operation to avoid the possibility of exceeding the (1) This Device may not cause harmful interface, and... -
Page 17: Setting Up The Software
11. Setting up the software Please refer to the programming manual included in CD. P A T E N T...
