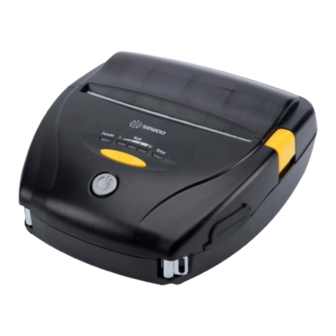

SEWOO LK-P41 User Manual

Hide thumbs Also See for LK-P41:
Table of Contents

Advertisement

Quick Links

Download this manual
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
P41 ENG Rev. 04/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P41 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P41

Summary of Contents for SEWOO LK-P41

  • Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P41 ENG Rev. 04/2024...
  • Page 2 MOBILE PRINTER MODEL : LK-P41 USER’S MANUAL All specifications are subject to change without notice...
  • Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, interference that may cause undesired operation. Tim Kloeker 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA NA_Sales@miniprinter.com...
  • Page 4 For USA Information to user; Caution: The user that changes or modifications not expressly approved by the Aroot Co., Ltd., responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 For Canada This class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la class B est conforme la norme NMB-003 du Canada The antenna cannot be removed (and changed) by user. NOTE This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).

  • Page 6: Table Of Contents

    Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control Panel Usage 4-2. Battery Installation 4-3. Charging Battery 4-4. Charging Cradle (Optional) 4-5. Car Charger Usage (Optional) 4-6. Paper Installation 4-7. Leather Case Usage (Optional) 4-8.

  • Page 7: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
  • Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.
  • Page 9 BATTERY SAFETY For better safe use, reliability and performance of the battery,  please review the following instructions carefully. 1 Storage of battery The battery is requested to be stored under the following conditions : a. Indoor storage in a cool environment without direct sun light on the battery. b.
  • Page 10 4 For Safety a. Do not disassemble battery. b. Do not use battery when something abnormal found such as smells, deformation, discoloration, and so on. c. When the electrolyte leakage occurs, do not touch the liquid. d. Once watered, battery may have potential malfunctions. Do not use this battery. e.

  • Page 11: Unpacking

    2. Unpacking Standard Printer Battery Quick Manual Charger USB Cable Serial Cable Roll Paper Optional Battery Cradle Car Adapter Leather Case Shoulder Strap (Charging Cradle)

  • Page 12: Product Overview

    3. Product overview Front Paper Feed Button Power switch Open Button SERIAL Bottom DC Power Battery...

  • Page 13: Usage And Installation

    4. Usage and Installation 4-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power Button on.

  • Page 14: Battery Installation

    4-2. Battery Installation Hook 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the  battery prior to using the printer.

  • Page 15: Charging Battery

    4-3. Charging Battery Lamp 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. The charging status LED Status charging charging complete Charging Lamp...

  • Page 16: Charging Cradle (Optional)

    4-4. Charging Cradle Optional Lamp DC Jack 1 Insert the battery into the battery charger as shown above. 2 Connect the DC JACK to the charging cradle. 3 Plug the power cord into the electrical outlet. 4 Once the charging is completed, remove the battery from the charging cradle. The charging status LED Status charging...

  • Page 17: Car Charger Usage (Optional)

    4-5. Car Charger Usage Optional Printer Battery holder Connect the car charger into the printer or battery cradle. Input 12 ~ 24V Output 8.4V 0.8 ~ 1.2A NOTE Only use the car charger included with the printer.

  • Page 18: Paper Installation

    4-6. Paper Installation Press the PUSH button to open the Insert the paper in the correct direction. paper cover. See the image above. Pull a short length of paper out of the Tear off the additional paper using tear printer and close the cover. bar.

  • Page 19: Leather Case Usage (Optional)

    4-7. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Velcro.

  • Page 20: Self Test

    4-8. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To print ASCII pattern additionally, press the Feed button once more. 02 After printing ASCII pattern, the self test will be finished automatically.
  • Page 21 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.

  • Page 22: Cleaning The Printer

    5. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning.

  • Page 23: Peripheral Connection

    6. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 6-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities(PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 24: Interface Cable Connection

    6-3. Interface Cable Connection Serial 1 Connect USB or Serial cable to the connector on the printer. NOTE - Only use cables included with the printer. 2 Connect the interface cable to the USB port of the device(PDA, PC, etc.).

  • Page 25: Printer Specification

    7. Printer Specification Printing Method Direct Thermal Printing Speed 80 mm/sec Resolution 203 DPI Font A(12x24), Font B(9x17), Asian Font(KOR, ESC/POS JPN, CHN_GB2312, CHN_BIG5) Font0/1/2/4/5/6/7, 24x24 Asian Font(KOR, Character CPCL JPN, CHN_GB2312, CHN_BIG5), Resident TTF, Downloadable TTF Font A~H, FontGS, Resident TTF(Font0), Downloadable TTF - 1D: EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS...
  • Page 26 Paper Type Thermal Receipt / Label Width 50 mm ~ 112 mm Thickness 0.06 mm ~ 0.16 mm Paper Roll Max Max. Ø 56mm Diameter Roll Core 12.5 mm ± 0.5 mm 50km Reliability Battery Standby: 180Hrs Stand-by(6700mAh) Standard Serial(RS-232C), USB Interface Wi-Fi(802.11a/b/g/n), Bluetooth Smart Optional...

  • Page 27: Cpcl Command Compatibility

    8. CPCL Command Compatibility NOTE Compatible Compatible with only Partially Not Compatible commanders provided Compatible by the manufacturer. ○ ● △ Printer Commands Compatibility PRINT ○ FORM ○ JOURNAL ○ UNITS ○ Comments ○ TEXT Compatibility TEXT ○ FONT-GROUP(FG) ○ TEXT CONCATENATION ○...
  • Page 28 GRAPHICS Compatibility ○ LINE ○ INVERSE-LINE ○ PATTERN ○ GRAPHICS ○ ○ Advanced Commands Compatibility CONTRAST ○ TONE ○ JUSTIFICATION ○ PAGE-WIDTH ○ PACE ○ NO-PACE ○ WAIT ○ REWIND TENSION SPEED ○ SETSP ○ ON-OUT-OF-PAPER ON-FEED ○ PREFEED ○ POSTFEED ○...
  • Page 29 Line Print Mode Compatibility SETLP ○ SETLF ○ Moving With X and Y Coordinates ○ LMARGIN ○ SETBOLD ○ SETSP ○ Special ASCII Characters ○ SETFF ○ SET-TOF ○ SETLP-TIMEOUT ○...

  • Page 30: Utilities

    This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 31: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
  • Page 32 QR Page...
