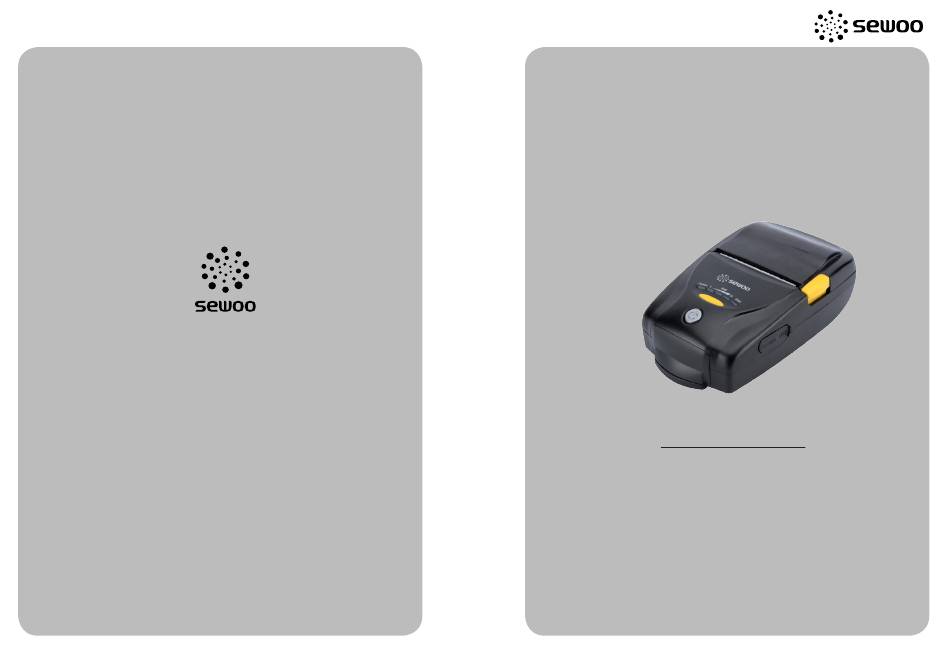

SEWOO TECH CO.,LTD.
374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea
TEL : +82-31-459-8200 FAX : +82-31-459-8880
www.miniprinter.com

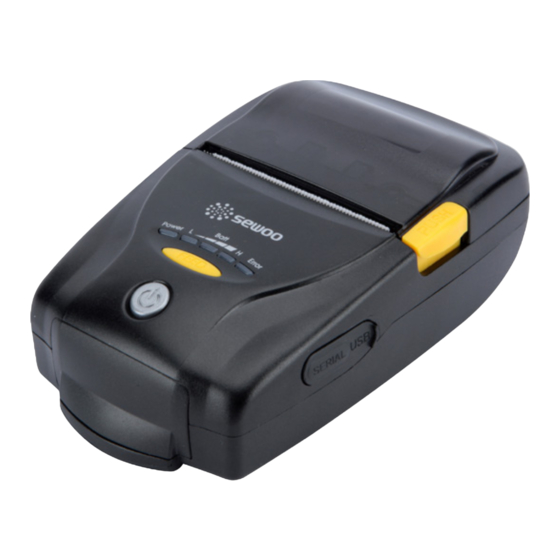

MODEL : LK-P21B
MOBILE PRINTER
All specifications are subject to change without notice
P21B Rev. C 11/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P21B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P21B

Summary of Contents for SEWOO LK-P21B

  • Page 1 SEWOO TECH CO.,LTD. 374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MODEL : LK-P21B MOBILE PRINTER All specifications are subject to change without notice P21B Rev. C 11/14...

  • Page 2: Table Of Contents

    Table of Contents “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, 1. Unpacking and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and 2.

  • Page 3: Usage And Installation

    3. Usage and Installation 3-1 Control panel usage 3-2 Battery Installation Hook Button Name function This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 1. Align battery hook as shown in the picture button seconds and it will turn on the power.

  • Page 4: Battery Removal

    3-4 Battery charging 3-3 Battery removal 180˚ Lamp 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. Put up the Belt clip hole turning 180 degree. 3. Plug the power code to electrical outlet. 3-4-1 The status of lamp in charging Status Charging...

  • Page 5: Battery Charger Usage

    3-6 Usage of Cigar Jack for charging 3-5 Battery charger usage Optional Optional Lamp Printer DC Jack 1. Insert the battery into the battery holder as shown above 2. Connect the DC JACK to the power electrical outlet. 3. Plug the power code into the electrical outlet. 4.

  • Page 6: Belt Clip Usage

    3-7 Belt Clip usage 3-8 Roll Paper installation Insert the belt clip screw into the hole of Belt clip Press the PUSH button to open Insert the paper in the right direction the paper cover Pull a short length of paper out of the Tear off the additional paper using As shown in the picture, tighten the screw with a screw driver.

  • Page 7: Leather Case Usage

    3-10 Self Test 3-9 Leather case usage Optional Turn off the power pressing the While you are pressing the FEED power button for approximately button, press the power button Open the leather case Place the printer into the leather case 3 seconds.

  • Page 8: Msr Usage

    3-11 MSR usage The sample of self test printout Optional Insert and swipe the card in the direction of the arrow as shown in the picture. When the printer is installed initially or when you face a problem, you can run the self test and check the information about -Control Circuit, Mechanism, Print Quality, ROM Version After checking with self-test and no issues are found, you can examine other...

  • Page 9: Peripherals Connection

    4. Peripherals connection 4-2 Interface Cable Connection This printer can communicate with Peripherals device via Bluetooth and cables. 4-1 Bluetooth Connection Serial 1. Connect USB or Serial cable into the cable connector on the printer. NOTE 1. Printer can be connected to the PDA and PC which can do wireless Use the cable offered by the manufacturer (USB, Serial) communication.

  • Page 10: Specification

    5. Pritner Specification 6.Certification 5-1 Specification FCC Information Printing Method Direct Thermal This device complies with part 15 of the FCC Results. Operation is Printing Speed 80mm/sec subject to the following two conditions: Resolution 203 DPI X 203 DPI Character Font A (12X24), Font B (9X17) (1) This Device may not cause harmful interface, and Character per line...

  • Page 11: Setting Up The Software

    7. Setting up the software Please refer to the programming manual included in CD. CAUTION Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.
