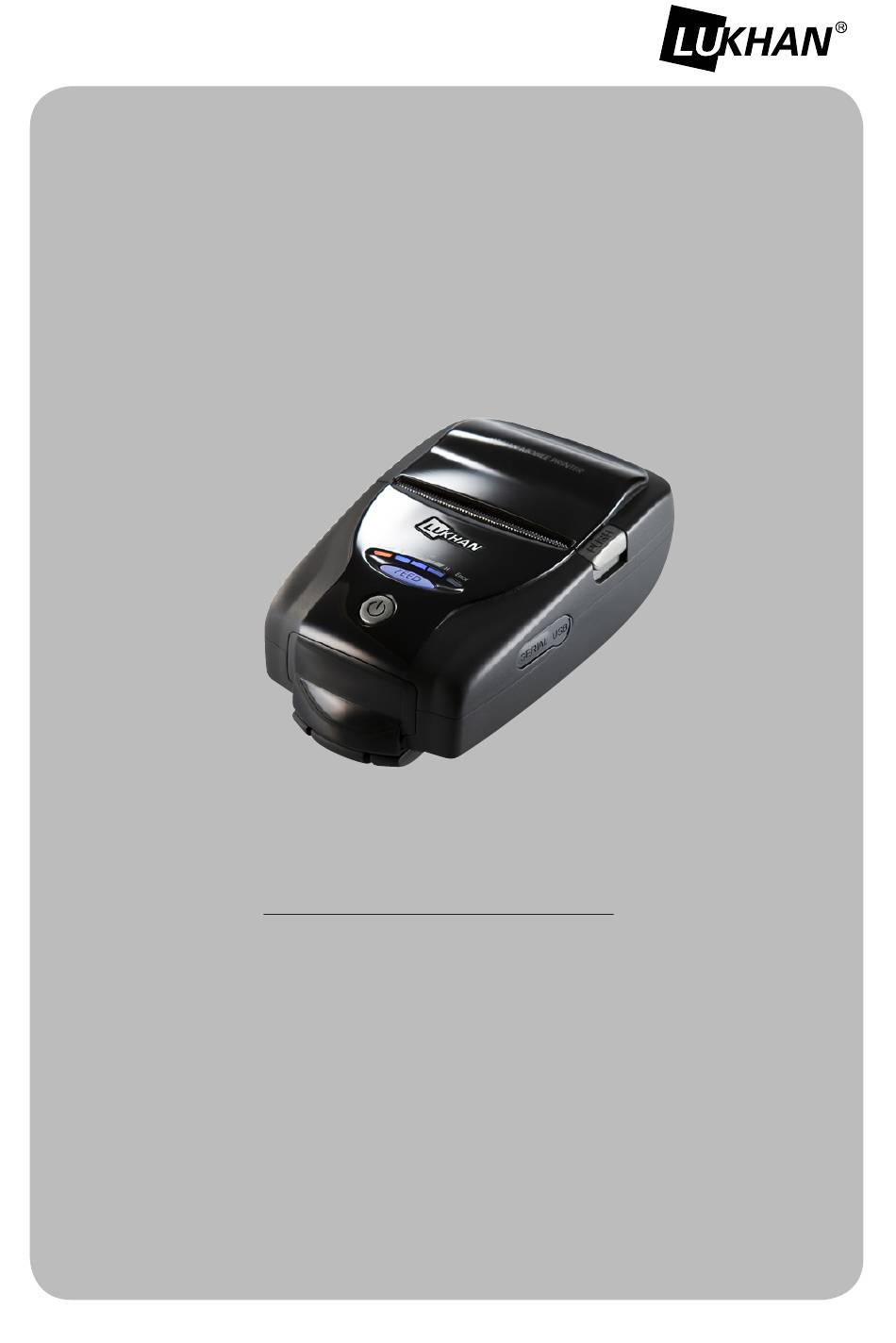

MODEL : LK-P21B
MOBILE PRINTER
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUKHAN LK-P21B and is the answer not in the manual?

Questions and answers

Related Manuals for SEWOO LUKHAN LK-P21B

Summary of Contents for SEWOO LUKHAN LK-P21B

  • Page 1 MODEL : LK-P21B MOBILE PRINTER All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    1. Unpacking Table of Contents Standard 1. Product overview 2. Unpacking 3. Usage and Installation 3-1. Control panel usage 3-2. Battery Installation Printer Battery Belt Buckle 3-3. Battery removal 3-4. Battery charging 3-5. Battery charger usage 3-6. Usage of Cigar Jack for charging Charger Serial Cable USB Cable Shielded...

  • Page 4: Product Overview

    2. Product overview 3. Usage and Installation 3-1 Control panel usage Paper feed button Open Button Power switch Button Name function SERIAL This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 2 seconds button and it will turn on the power.

  • Page 5: Battery Installation

    3-2 Battery Installation 3-3 Battery removal 180˚ Hook Put up the Belt clip hole turning 180 degree. 1. Align battery hook as shown in the picture 2. Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer (Battery charger or Cradle can be used to charge) After putting up the belt clip, remove the battery holding it up as shown above.

  • Page 6: Battery Charging

    3-4 Battery charging 3-5 Battery charger usage lamp 1. Be sure that the printer is turned off 1. Insert the battery into the battery holder as shown above 2. After open the DC JACK cover, insert DC JACK into the printer. 2.

  • Page 7: Usage Of Cigar Jack For Charging

    3-6 Usage of Cigar Jack for charging 3-7 Belt Clip usage Printer Insert the belt clip screw into the hole of Belt clip Battery holder Connect the car cigar JACK charger into the printer or battery holder. As shown in the picture, tighten the screw with a screw driver.

  • Page 8: Roll Paper Installation

    3-8 Roll Paper installation 3-9 Leather case usage Press the PUSH button to open Insert the paper in the right Open the leather case Place the printer into the leather paper cover direction case Close the Velcro and stick the Fasten to the belt by using the clip Pull a short length of paper out of Tear off the additional paper using...

  • Page 9: Self Test

    3-10 Self Test <The sample of self test printout> Turn off the power pressing the While you are pressing the FEED power button for approximately button, press the power button 2 minutes. NOTE 1. To print ASCII pattern additionally, press the Feed button once more 2.

  • Page 10: Msr Usage

    4. Peripherals connection 3-11 MSR usage This printer can communicate with Peripherals device via Bluetooth and cables. 4-1 Bluetooth Connection Insert and swipe the card in the direction of the arrow as shown in the picture. 1. Printer can be connected to the PDA and PC which can do wireless communication.

  • Page 11: Specification

    5. Pritner Specification 4-1 Bluetooth Connection 5-1 Specification Printing Method Direct Thermal Printing Speed 80mm/sec Resolution 203 DPI X 203 DPI Character Font A (12X24), Font B (9X17) Character per line Font A : 32 columns , Font B : 42 columns Character set ALPHA NUMERIC Charactor, Extension grapic Barcode...
  • Page 12 Battery Charger input AC100~240V, 50/60 Hz output 8.4V , 800~1200mA Battery Charger Battery type Li-on output 7.4V, 1130mAh Charging time 2 Time Size W X D X H(mm) 96 X 136 X 58 W X D X H” 3.7 X 5.3 X 2.2 Weight 0.4kg Temperature...
  • Page 13 This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions: (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules.
  • Page 14 SEWOO TECH CO.,LTD. ADDRESS Doosung Bd, 689-20, Kumjung-dong, Kunpo-si, Kyunggi-do, Korea TEL 82-31-459-8200 FAX 82-31-459-8880 URL http://www.miniprinter.com Rev. 1.0...
