Summary of Contents for SEWOO LK-P25II

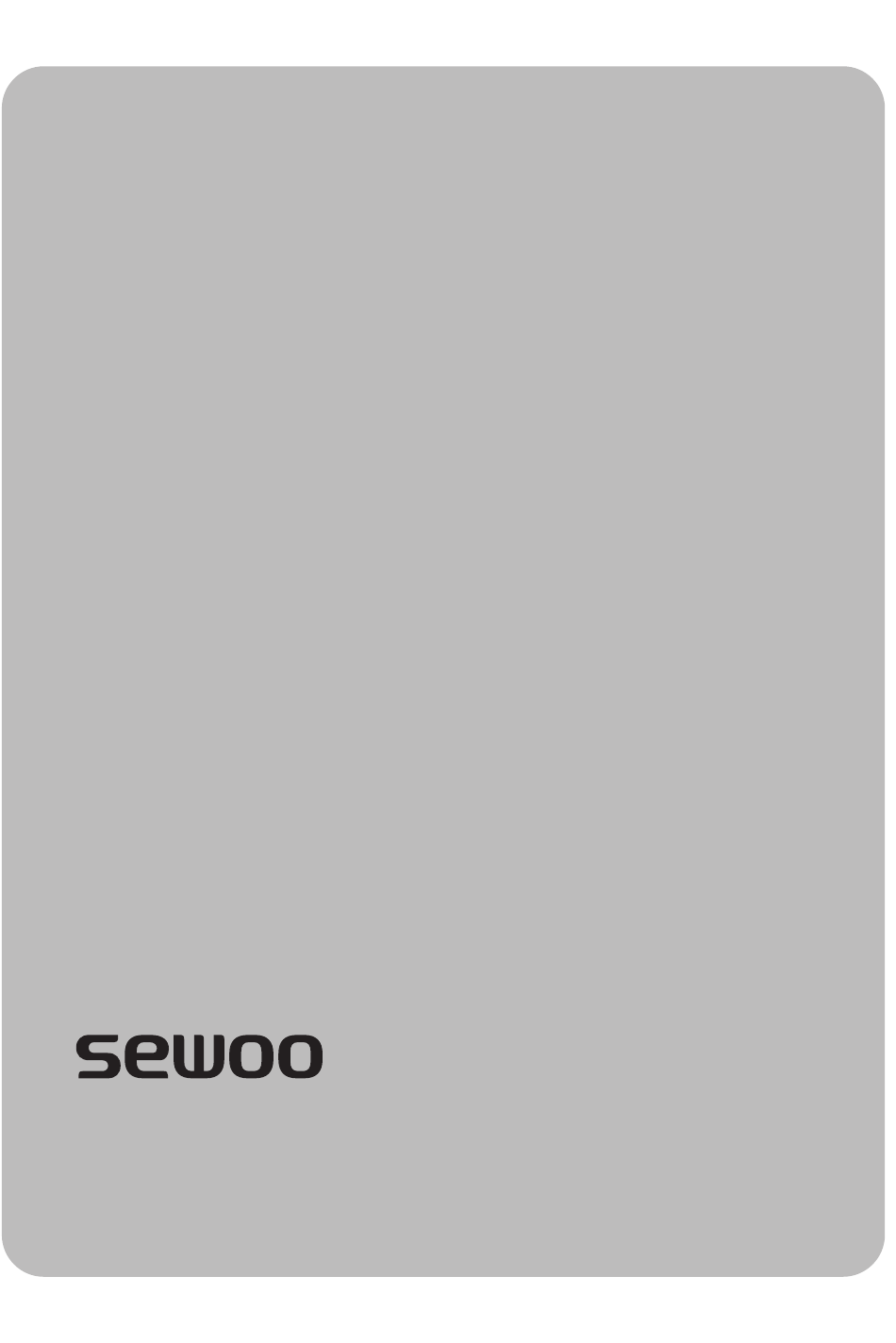

- Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P25II ENG Rev. 12/2023...

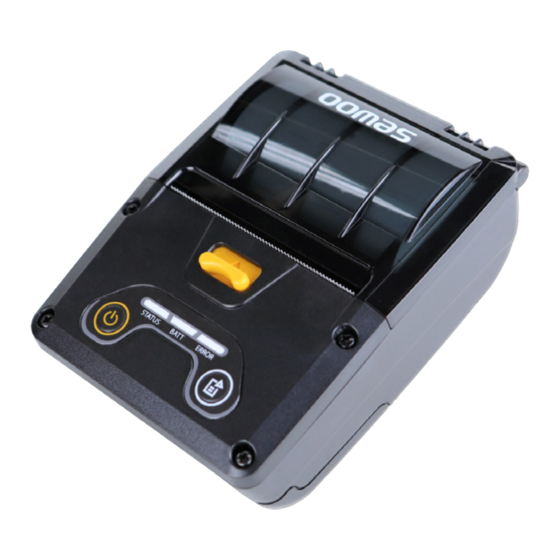

- Page 2 MOBILE PRINTER MODEL : LK-P25II USER’S MANUAL All specifications are subject to change without notice...
- Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including 2) T his device must accept any interference received, interference that may cause undesired operation. Tim Kloeker 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA NA_Sales@miniprinter.com...
- Page 4 For USA nformation to user; Caution: The user that changes or modifications not expressly approved by the Aroot Co., Ltd., responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 For Canada This class B digital apparatus complies with Canadian ICES-003 Cet appareil num rique de la class B est conforme la norme NMB-003 du Canada The antenna cannot be removed (and changed) by user. NOTE This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
- Page 6 Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
- Page 7 Battery Safety Precautions Make sure to review the user manual carefully prior to product use. Neglecting to heed the following instructions can result in battery overheating, combustion, explosion, damage and/or decline in performance and product life. Danger 1 Do not allow water, seawater or moisture to enter or leak into the battery. If the safety mechanism within the battery becomes oxidized, the battery may overcharge with abnormal electrical current and/or voltage so that it may overheat, ignite and/or explode.
- Page 8 10 heavy object, such as a hammer, and take care not to step on the battery. There is a potential risk of battery overheating, combustion, and/or explosion caused by an internal short circuit. 11 Do not solder the battery directly. Doing so may melt the insulating materials and/or damage the safety mechanism or safety equipment, resulting in battery overheating, combustion, and/or explosion.
- Page 9 Caution 1 Do not use or leave the battery in a location exposed to high temperatures or intense direct sunlight, such as within an automobile. Doing so can cause battery overheating and/or combustion. In addition, battery performance and product life may be reduced.
-
Page 10: Table Of Contents
Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control Panel Usage 4-2. Paper Roll Installation 4-3. Charging Battery 4-4. Leather Case Usage 4-5. Self Test 5. Peripheral Connection 5-1. Bluetooth Connection 5-2. NFC Connection 6. - Page 11 7. JAM Error 8. Roll Media Specification 9. Black Mark 10. Printer Specification 11. Utilities 12. S/W...
-
Page 12: Safety Precautions
1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands... - Page 13 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.
-
Page 14: Unpacking
2. Unpacking Standard Printer Quick Manual Charger (USB Cable) Roll paper Optional Leather Case & Shoulder Strap IP54 Case... -
Page 15: Product Overview
3. Product overview Front Open Button - Button Up : Opening the cover USB C Type Power Button Paper Feed Button Bottom Battery Cover... -
Page 16: Usage And Installation
4. Usage and Installation 4-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. Button / When you press this button while the printer is powered Stand-by... -
Page 17: Paper Roll Installation
4-2. Paper Roll Installation CAUTION Make sure to be careful of the HOT head. Open Button Press the Open button up to open Place the paper roll as shown. the paper cover. Make sure the paper is placed in the right direction. -
Page 18: Charging Battery
4-3. Charging Battery How to charge with power cord 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. CAUTION After opening the DC cover, pull the cover slightly. Be careful not to pull too hard. - Page 19 How to charge with PC Disconnect the USB cable from the power cord adapter. Connect the USB cable to the PC to charge the printer.
-
Page 20: Leather Case Usage
4-4. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Connect the shoulder strap to leather Velcro. case rings. -
Page 21: Self Test
4-6. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To enter hex dump mode, press the FEED button once more. 02 If the FEED button is not pressed, the self-test will automatically finish after 3 seconds. - Page 22 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: Ⅱ - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.
-
Page 23: Peripheral Connection
5. Peripheral Connection This product can communicat with oher devices via Bluetooth or a communication cable. 5-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities(PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer. -
Page 24: Nfc Connection
5-2. Interface Cabel Connection COVER 1 Flip over the connector cover anf connect USB cabel to the printer connerctor. NOTE Only use cables included with the printer.(USB) 2 Connect the interface cabel to the USB port of the device (PDA, PC, etc.). -
Page 25: Cleaning The Printer
6. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning. -
Page 26: Jam Error
7. JAM Error CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button up to open the printer cover. NOTE NOTE Please make sure you hear If the cover is not shut down the closing sound of the completely, the printer may... -
Page 27: Roll Media Specification
8. Roll Media Specification Core Diameter (A) 12.5 mm Roll Max.Diameter (B) 40 mm Max.Media Width (C) 58 mm Min.Media Thickness 0.06 mm Protect the printhead from sand, grit, and other hard particles during printing and storage. Keep the cover closed. Even very small foreign particles may cause severe harm to the printhead. -
Page 28: Black Mark
9. Black Mark 10 ~ 58 12.5 48 (PRINT WIDTH ) 58 (MAX PAPER WIDTH) -
Page 29: Printer Specification
10. Printer Specification Printing Method Direct Thermal Printing Speed Max. 80mm/s Resolution 203 DPI FontA(12x24), FontB(9x17), Asian Font (KOR, JPN, CHN_GB2312,CHN_BIG5), Character Font0/1/2/4/5/6/7, Resident TTF, Downloadable TTF, FontA~H, FontGS, Resident TTF(Font0), Font1~8 UPC-A, UPC-E, EAN-8, Code39, ITF, Codabar, Code93, Code128, EAN-13,Code128 Barcode QR, PDF417, Maxicode, Datamatrix Emulation... - Page 30 Battery type Li-ion Battery Output 3.6V, 3250mAh Charging time Adaptor : 4 Hrs / USB : 6 Hrs Size 79 x 44.4 x 103.2 [W x D x H (mm)] Weight 189g (with battery) Operation -10 ~ 50℃ Temperature Storage -20 ~ 60℃...
-
Page 31: Utilities
※ Please refer to PrinterGear Manual for detailed information. This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and able to printer settings (ESC/POS) etc. -
Page 32: S/W
Mac Driver printer in the Mac OS environment. Android Plugin This is a print service plug-in that allows you (Sewoo Print Service Plugin) to print documents, images, and web pages (ESC/POS) without installing additional apps. This is library for communication and data Windows SDK output with Mobile printer in Windows OS.
