J. STEPHEN Lab., Ltd.
374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea
TEL : +82-31-459-8200 FAX : +82-31-459-8880
www.miniprinter.com

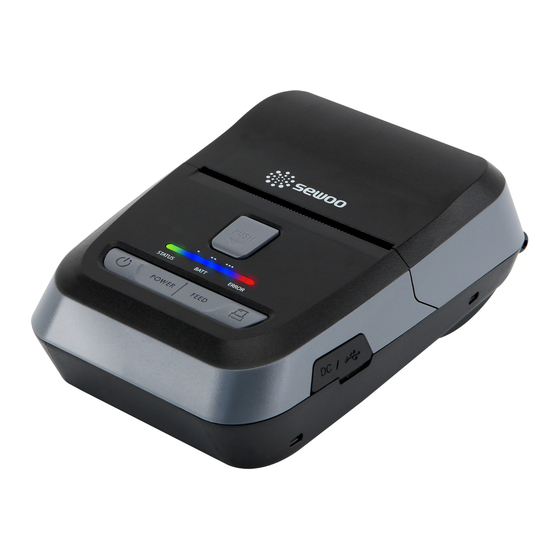

MOBILE PRINTER
MODEL : LK-P22
Wi-Fi & Bluetooth
P22 Rev. C 11/16
All specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P22

Summary of Contents for SEWOO LK-P22

  • Page 1 J. STEPHEN Lab., Ltd. 374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea TEL : +82-31-459-8200 FAX : +82-31-459-8880 www.miniprinter.com MOBILE PRINTER MODEL : LK-P22 Wi-Fi & Bluetooth P22 Rev. C 11/16 All specifications are subject to change without notice...

  • Page 3: Table Of Contents

    Table of Contents 6. Roll media specification 1. Safety Caution 7. Black Mark 2. Unpacking 8. Printer cleaning 3. Product overview 4. Usage and Installation 9. Printer specification 9-1. Specification 4-1. Control panel usage 10. Emulation Command Compatibility 4-2. Battery Installation 11.

  • Page 4: Safety Caution

    1. Safety Caution For higher reliability and safety, consider the following precautionary measures. WARNING Read and follow the instructions carefully before running of the product. Failure to follow these instructions could result in fire, electric shock, or other injuries, or property damage Indication Prohibition Must follow...

  • Page 5: Unpacking

    2. Unpacking 3. Product overview Standard Front Control Panel Power Button Open Button Printer Battery Quick Manual Belt Strap+Bracket Paper feed Button Charger CD (Manual) USB Cable Roll paper MSR & IC CARD (Optional) DC Power Optional Rear Set Cradle Leather case Belt Clip (Standard or MSR &...

  • Page 6: Usage And Installation

    4. Usage and Installation 4-1 Control panel usage 4-2 Battery Installation Hook Button Name function This button is used to turn the printer on and off. Power When the printer is off, press this button for approximately 3 seconds Button and it will turn on the power.

  • Page 7: Battery Removal

    4-4 Battery charging 4-3 Battery removal 4-4-1 charging usage OPEN Lamp 1. Be sure that the printer is turned off. Remove the battery as shown 2. After open the DC JACK cover, insert DC JACK into the printer. 3. Plug the power cord to electrical outlet. 4-4-1 The status of lamp in charging Status charging...

  • Page 8: Charging Set Cradle (Optional)

    4-4-2 charging set cradle 4-5 Set Cradle usage Optional Optional Press the PUSH button to pop 1. Place the printer into the set cradle as shown above. the cradle slide out. 2. Connect the DC JACK to the set cradle. 3.

  • Page 9: Belt Clip & Strap

    4-6 Belt Clip & Strap 4-6-1 Belt Strap+bracket usage After connecting the strap and bracket, insert the screws Prepare a belt strap, bracket Put the strap into the hole on the in the bracket fixed hole. and 2 screws. top of the belt bracket. Use a screw driver to tighten the bracket.

  • Page 10: Belt Clip Usage Optional

    4-7 Roll Paper installation 4-6-2 Belt clip usage Optional Insert the belt clip screw into the hole of Belt clip. Press the PUSH button to open Insert the paper in the right the paper cover. direction. Pull a short length of paper out of Tear off the additional paper using the printer and close the cover.

  • Page 11: Leather Case Usage (Optional)

    4-8 Leather case usage 4-9 Self Test Optional Turn off the power pressing the While you are pressing the FEED power button for approximately button, press the power button. Open the leather case. Place the printer into the leather 3 seconds. case.

  • Page 12: Msr Usage Optional

    4-10. MSR usage The sample of self test printout Optional When the printer is installed initially or when you face a problem, you can run the self test and check the information about -Control Circuit, Mechanism, Print Quality, ROM Version After checking with self-test and no issues are found, you can examine other devices and software.

  • Page 13: Ic Card Usage Optional

    5. Peripherals connection This product can communicate with other devices via 4-11. IC CARD usage Bluetooth communication and cable. Optional 5-1. Bluetooth connection Optional 1. The Printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.) 2.

  • Page 14: Nfc Connection Optional

    This product can communicate with other devices via Optional 5-1-1. NFC connection Wi-Fi communication and cable. This product can communication with other devices via NFC communication. 5-2. Wi-Fi(802.11 a/b/g/n) connection Optional 1. The Printer can be connected to devices equipped with Wi-Fi(802.11a/b/g/n) 1.

  • Page 15: Interface Cable Connection

    6. Roll media specification 5-3. Interface Cable connection Core Diameter(A) 12.5mm +/-0.5mm Roll Max.diameter(B) Max. Φ40mm 1. Connect USB cable into the cable connector on the printer. Max.Media Width (C) Max. 58 ± 0.5mm Min.media Thickness 0.06mm NOTE Use the cable offered by the manufacturer (USB) 2.

  • Page 16: Black Mark

    7. Black Mark 8. Printer cleaning If the interior of the printer is dusty, printing quality can lowered. In such a case, follow the instructions below to clean up the printer. NOTE 1. Make sure to turn the printer power off prior to cleaning 2.

  • Page 17: Printer Specification

    9. Printer Specification 9-1 Specification Printing Method Direct Thermal Reliability 50km Printing Speed Max. 100mm/s Pulse Activation 50,000,000 pulse or more(12.5% Print Ratio) Resolution 203 DPI Interface Standard Character ESC/POS FontA(12x24), FontB(9x17), Asian Font(KOR, Option Bluetooth Smart Ready Ver 4.2 JPN,CHN_GB2312,CHN_BIG5) or Wi-Fi(802.11a/b/g/n) CPCL...

  • Page 18: Emulation Command Compatibility

    10. Emulation Command Compatibility NOTE ESC D Set horizontal tab positions ○ Compatible with only Partially ESC E Turn emphasized mode on/off ○ commanders provided Compatible Compatible Compatible by the manufacturer. ESC G Turn double-strike mode on/off ○ ESC J Print and feed paper ○...
  • Page 19 CPCL Command GS W Set printing area width ○ Command Function Compatibility Set relative vertical print position in page PRINTER COMMANDS GS ＼ ○ mode PRINT Terminate and print the file. ○ GS ^ Execute macro ○ Instruct the printer to feed to top of FORM ○...
  • Page 20 Is used to label bar codes with the ADVANCED COMMANDS BARCODE-TEXT same data used to create the bar ○ Specify the print darkness for the code. CONTRAST ○ entire label. Is used for printing multiple labels Specify the print darkness for all where a numeric text field or TONE ○...
  • Page 21 LINE PRINT MODE BAUD Set the printer serial port baud rate. ○ Change the font the printer for line COUNTRY / Substitute the appropriate character SETLP ○ ○ print mode. CODE-PAGE set for the specified country. Change the height of each line TIMEOUT Set the system off-time.
  • Page 22 ZPL Command Produce the Data Matrix barcode. ○ Command Function Compatibility Change the default values of barcode Specify the font to use in a text field. ○ ○ fields. Use Font Name to Call Font ○ Produce the POSTNET barcode. ○...
  • Page 23 Draw circles. ○ Select print speed. ○ Draw diagonal line. ○ Reprint. ○ Draw graphic ellipse. ○ Set print width. ○ Download graphic field data. ○ Change the serial communications ○ Change data into graphic symbols. ○ parameters Delete objects, graphics, fonts, and Set the darkness.

  • Page 24: Certification

    11.Certification FCC Information CAUTION Antenna shall be mounted in such a manner to minimize the potential This device complies with part 15 of the FCC Results. Operation is subject to for human contact during normal operation. The antenna should not the following two conditions: be contacted during operation to avoid the possibility of exceeding the (1) This Device may not cause harmful interface, and...
  • Page 25 P A T E N T...
