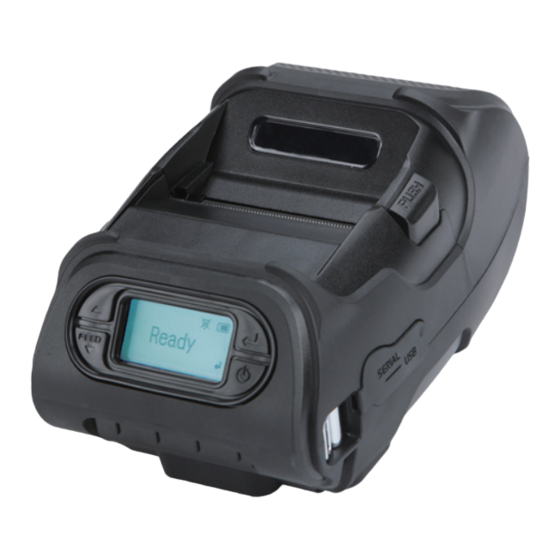

SEWOO LK-P22 User Manual

Mobile printer
Hide thumbs Also See for LK-P22:
Table of Contents

Advertisement

Quick Links

Download this manual
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea
TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com
P22 ENG Rev. I 01 / 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P22

Summary of Contents for SEWOO LK-P22

  • Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P22 ENG Rev. I 01 / 2021...
  • Page 2 MOBILE PRINTER MOBILE PRINTER MODEL � LK�P22 USER�S MANUAL All specifi  cations are subject to change without notice...
  • Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including  2)  T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...
  • Page 4 Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.

  • Page 5: Table Of Contents

    Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control Panel Usage 4-2. Battery Installation 4-3. Charging Battery 4-4. Charging Cradle (Optional) 4-5. Set Cradle Usage (Optional) 4-6. Battery Removal 4-7. Belt Clip & Strap 4-8.
  • Page 6 5. Peripheral Connection 5-1. Bluetooth Connection (Optional) 5-2. Wi-Fi Connection (Optional) 5-3. NFC Connection (Optional) 5-4. Interface Cable Connection 6. Cleaning the Printer 7. Roll Media Specification 8. Black Mark 9. Printer Specification 10. Utilities 11. S/W...

  • Page 7: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands...
  • Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.

  • Page 9: Unpacking

    2. Unpacking Standard Printer Battery Belt Strap+Bracket Quick Manual Charger USB Cable CD (Manual) Roll paper Optional Set Cradle Leather case Belt Clip (Charging Cradle) (Standard or MSR & IC Card) AC Cord Adaptor...

  • Page 10: Product Overview

    3. Product overview Front Open Button Control Panel Power Button Paper Feed Button DC Power Bottom MSR & IC CARD (Optional) Battery Belt Clip Hole...

  • Page 11: Usage And Installation

    4. Usage and Installation 4-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. Button When you press this button while the printer is powered on, the printer will turn off.

  • Page 12: Battery Installation

    4-2. Battery Installation Hook 1 Align battery hook as shown in the picture. 2 Push the battery into the printer until it locks in place. NOTE As the battery is not charged at the time of your purchase, charge the battery  prior to using the printer.

  • Page 13: Charging Battery

    4-3. Charging Battery Lamp 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. The charging status LED Status charging charging complete Charging Lamp...

  • Page 14: Charging Cradle (Optional)

    4-4. Charging Cradle Optional 1 Place the printer into the charging cradle as shown above. 2 Connect the DC JACK to the charging cradle. 3 Plug the power cord into an electrical outlet. 4 Once the charging is completed, remove the printer from the charging cradle. The charging status LED Status charging...

  • Page 15: Set Cradle Usage (Optional)

    4-5. Set Cradle Usage Optional Press the PUSH button to pop out the cradle connector. Align the second cradle with the connector of the existing cradle, and connect the cradles by pressing down. (To disassemble, repeat these steps in reverse order)

  • Page 16: Battery Removal

    4-6. Battery Removal OPEN Remove the battery as shown.

  • Page 17: Belt Clip & Strap

    4-7. Belt Clip & Strap Belt Strap+Bracket Usage Prepare the belt strap, bracket, and 2 Put the strap into the hole on the top of screws. the belt bracket. Slide the strap into the loop on the Make sure the strap is fastened tight back side.
  • Page 18 After connecting the strap and bracket, insert the screws into the bracket hole. Use a screw driver to tighten the bracket.

  • Page 19: Belt Clip Usage (Optional)

    4-8. Belt clip Usage Optional Insert the belt clip screw into the hole of the belt clip. Tighten the screw with a screwdriver as shown in the picture above.

  • Page 20: Paper Roll Installation

    4-9. Paper Roll Installation Press the PUSH button to open the Insert the paper in the correct direction. paper cover. See the image above. Pull a short length of paper out of the Tear off the additional paper using tear bar. printer and close the cover.

  • Page 21: Leather Case Usage (Optional)

    4-10. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Fasten to the belt by using the clip at the Velcro. rear of the leather case.

  • Page 22: Self Test

    4-11. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To enter hex dump mode, press the FEED button once more. 02 If the FEED button is not pressed, the self-test will automatically finish after 3 seconds.
  • Page 23 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.

  • Page 24: Msr Usage (Optional)

    4-12. MSR Usage Optional Insert and swipe the card in the direction of the arrow as shown in the picture.

  • Page 25: Ic Card Usage (Optional)

    4-13. IC CARD Usage Optional Insert the card in the direction of the arrow as shown in the picture.

  • Page 26: Peripheral Connection

    5. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 5-1. Bluetooth Connection Optional 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities(PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 27: Wi-Fi Connection (Optional)

    5.2 NFC Connection Optional This product can communicate with other devices via NFC. 1 The printer can be connected to devices equipped with NFC communication capabilities. 2 Use the NFC connection function supported by the device to connect to the printer. NOTE - NFC is only compatible with Bluetooth.

  • Page 28: Nfc Connection (Optional)

    This product can communicate with other devices via Wi-Fi communication  or an interface cable. 5-3. Wi-Fi Connection Optional 1 The Printer can be connected to devices equipped with Wi-Fi communication capabilities (PDAs, PCs, etc.). 2 Use the Wi-Fi connection function supported by the device to connect to the printer.

  • Page 29: Interface Cable Connection

    5-4. Interface Cable Connection 1 Connect USB cable to the connector on the printer. NOTE - Only use cables included with the printer. 2 Connect the interface cable to the USB port of the device(PDA, PC, etc.).

  • Page 30: Cleaning The Printer

    6. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning.

  • Page 31: Roll Media Specification

    7. Roll Media Specification Core Diameter (A) 12.5 mm ± 0.5 mm Roll Max.Diameter (B) 40 mm Max.Media Width (C) 58 mm ± 0.5 mm Min.Media Thickness 0.06 mm Protect the printhead from sand, grit, and other hard particles during printing and storage. Keep the cover closed. Even very small foreign particles may cause severe harm to the printhead.

  • Page 32: Black Mark

    8. Black Mark 10 ~ 58 48 (PRINT WIDTH) 58 (MAX PAPER WIDTH)

  • Page 33: Printer Specification

    9. Printer Specification Printing Method Direct Thermal Printing Speed Max. 100mm/s Resolution 203 DPI FontA(12x24), FontB(9x17), Asian Font(KOR, ESC/POS JPN, CHN_GB2312, CHN_BIG5) Font0/1/2/4/5/6/7, 24x24 Asian Font(KOR, Character CPCL JPN, CHN_GB2312, CHN_BIG5), Resident TTF, Downloadable TTF FontA~H, FontGS, Resident TTF(Font0), Downloadable TTF - 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, ESC/POS UPC-E, Codabar, Code93, Code128...
  • Page 34 Emulation ESC/POS, CPCL, ZPL Command compatible Windows Driver(10, 2012, 8, 7, 2008, VISTA, 2003, XP, 32bit & 64bit), Window CE & Mobile Driver & SDK(CE 4.2~, Mobile 5.0~), Driver Linux Driver, Mac Driver, OPOS Driver, Java POS Driver, iOS SDK, Android(2.1~) SDK, Blackberry SDK, Symbian Paper End Sensor, Cover Open Sensor, Sensor...
  • Page 35 Card Standard ISO 1&2&3 or ISO 1&2&JIS-II Track ISO Track 1&2&3 EMV II Magnetic 500,000 Passes(minimum) (Optional) Head Life Card Standard ISO 7816 Head Life Cycle 100,000 Passes(minimum) Input AC100~240V, 50/60 Hz Battery Charger Output 8.4V , 800~1400mA Battery type Li-ion Battery Output...

  • Page 36: Utilities

    This program is for label form design and designed LabelMaker(CPCL) label printing. Android Utility It is a utility app that prints text, barcodes, images, (Sewoo M_Utility) etc. through Bluetooth and Wi-Fi communication,  (ESC/POS) and able to printer settings.

  • Page 37: S/W

    Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) (ESC/POS) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS.
  • Page 38 PATENT...
