- Page 1 Aroot Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do ,18103, Republic of Korea TEL +82-31-8077-5000 / FAX +82-31-624-5310 / http://www.miniprinter.com P25 ENG Rev. C 01 / 2021...
- Page 2 MOBILE PRINTER MODEL � LK�P25 USER�S MANUAL All specifi cations are subject to change without notice...
- Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and including 2) T his device must accept any interference received, interference that may cause undesired operation. Vic Barczyk 19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA sales@miniprinter.com...
- Page 4 Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronics equipment.
-
Page 5: Table Of Contents
Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Usage and Installation 4-1. Control Panel Usage 4-2. Paper Roll Installation 4-3. Battery Installation 4-4. Charging Battery 4-5. Leather Case Usage 4-6. Self Test... - Page 6 5. Peripheral Connection 5-1. Bluetooth Connection 5-2. NFC Connection 5-3. Interface Cable Connection 6. Cleaning the Printer 7. JAM Error 8. Roll Media Specification 9. Black Mark 10. Printer Specification 11. Utilities 12. S/W...
-
Page 7: Safety Precautions
1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent Do not handle the product with electric shock wet hands... - Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not disassemble, repair or modify the Do not unplug the product. power cable to turn Potential risk of off the product. malfunction, electric Turn off the power shock, or fire.
-
Page 9: Unpacking
2. Unpacking Standard Printer Battery Quick Manual Charger (USB Cable) Belt Clip (Battery Cover) Roll paper Optional Leather Case & Shoulder Strap... -
Page 10: Product Overview

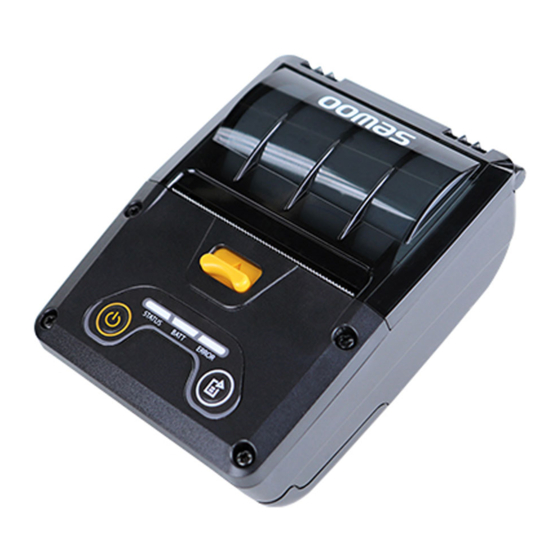

3. Product overview Front Open Button - Button Up: Opening the cover USB & DC Power Power Button Paper Feed Button Bottom Battery Cover... -
Page 11: Usage And Installation
4. Usage and Installation 4-1. Control Panel Usage Button Name function - This button is used to turn the printer on and off. - When the printer is off, press this button for Power approximately 3 seconds and the printer will power on. Button / When you press this button while the printer is powered Stand-by... -
Page 12: Paper Roll Installation
4-2. Paper Roll Installation CAUTION Make sure to be careful of the HOT head. Open Button Press the Open button up to open Place the paper roll as shown. the paper cover. Make sure the paper is placed in the right direction. -
Page 13: Battery Installation
4-3. Battery Installation Standard Remove the screw as shown. Open the battery cover and connect the battery jack to the printer. Insert the battery and close the battery Install the screw. cover. - Page 14 Belt Clip Battery Cover Install in the same order as the battery cover. NOTE As the battery is not charged at the time of your purchase, charge the battery prior to using the printer.
-
Page 15: Charging Battery
4-4. Charging Battery How to charge with power cord 1 Make sure the printer is turned off. 2 After opening the DC JACK cover, connect the DC JACK to the printer. 3 Plug the power cord into the electrical outlet. CAUTION After opening the DC cover, pull the cover slightly. Be careful not to pull too hard. - Page 16 How to charge with PC Disconnect the USB cable from the power cord adapter. Connect the USB cable to the PC to charge the printer.
-
Page 17: Leather Case Usage
4-5. Leather Case Usage Optional Open the leather case. Place the printer into the leather case. Close the cover and press down on the Connect the shoulder strap to leather Velcro. case rings. -
Page 18: Self Test
4-6. Self Test Turn off the power by pressing the While you are holding the FEED button, power button for approximately 3 press the power button. seconds. NOTE 01 To enter hex dump mode, press the FEED button once more. 02 If the FEED button is not pressed, the self-test will automatically finish after 3 seconds. - Page 19 Self-Test Printout Sample Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: - Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with the diagnostic test, examine other devices and software.
-
Page 20: Peripheral Connection
5. Peripheral Connection This product can communicate with other devices via Bluetooth or a communication cable. 5-1. Bluetooth Connection 1 The Printer can be connected to devices equipped with Bluetooth communication capabilities(PDAs, PCs, etc.). 2 Use the Bluetooth connection function supported by your device to connect to the printer. -
Page 21: Nfc Connection
5-2. NFC Connection The printer can be connected to devices equipped with NFC communication capabilities. Use the NFC connection function supported by the device to connect to the printer. NOTE - Please refer to the configuration manual for details. - NFC is only compatible with Bluetooth. -
Page 22: Interface Cable Connection
5-3. Interface Cable Connection COVER 1 Flip over the connector cover and connect USB cable to the printer connector. NOTE Only use cables included with the printer. (USB) 2 Connect the interface cable to the USB port of the device (PDA, PC, etc.). -
Page 23: Cleaning The Printer
6. Cleaning the Printer If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. NOTE 01 Make sure to turn the printer power off prior to cleaning. 02 Regarding printhead cleaning, as the printhead gets very hot during printing, turn off the printer power and wait approximately 10 minutes before cleaning. -
Page 24: Jam Error
7. JAM Error CAUTION Make sure to be careful of the HOT head. When you face with a paper jam error, Please remove the paper. please press the button up to open the printer cover. NOTE NOTE Please make sure you hear If the cover is not shut down the closing sound of the completely, the printer may... -
Page 25: Roll Media Specification
8. Roll Media Specification Core Diameter (A) 12.5 mm Roll Max.Diameter (B) 40 mm Max.Media Width (C) 58 mm Min.Media Thickness 0.06 mm Protect the printhead from sand, grit, and other hard particles during printing and storage. Keep the cover closed. Even very small foreign particles may cause severe harm to the printhead. -
Page 26: Black Mark
9. Black Mark 10 ~ 58 12.5 48 (PRINT WIDTH ) 58 (MAX PAPER WIDTH) -
Page 27: Printer Specification
10. Printer Specification Printing Method Direct Thermal Printing Speed Max. 60mm/s Resolution 203 DPI FontA(12x24), FontB(9x17), Asian Font(KOR, Character JPN, CHN_GB2312, CHN_BIG5) UPC-A, UPC-E, EAN-8, Code39, ITF, Codabar, Code93, Code128, EAN-13 Barcode QR, PDF417, Maxicode, Datamatrix Emulation ESC/POS Compatible Windows Driver(10, 2012, 8, 7, 2008, VISTA, 2003, XP, 32bit &... - Page 28 Size 79 x 44.4 x 103.2 [W x D x H (mm)] Weight 189g (with battery) Operation -10 ~ 50℃ Temperature Storage -20 ~ 60℃ Operation 10 ~ 80% Humidity Storage 10 ~ 90%...
-
Page 29: Utilities
Logo in the printer's flash memory, and print test is possible. It is a utility app that prints text, barcodes, images, Android Utility etc. through Bluetooth and Wi-Fi communication, and (Sewoo M_Utility) able to printer settings. -
Page 30: S/W
Mac Driver in the Mac OS environment. Android Plugin This is a print service plug-in that allows you to print (Sewoo Print Service documents, images, and web pages without installing Plugin) additional apps. This is library for communication and data output Windows SDK with Mobile printer in Windows OS. - Page 31 PATENT...
