o Off: disable backlight compensation. Default mode.
o
HWDR: True WDR adjusts the camera to provide a better image when there are both very
bright and very dark areas in the field of view. If enabled, the camera recording will be stopped
for a few seconds while HWDR is turning on.
o
HLC: This option lowers the brightness of the entire image by suppressing the image's bright
area and reducing the size of the halo area.
o
BLC: When enabled, the auto exposure will activate according to the scene so that objects in
the darkest area will be seen clearly.
• HFR: High Frame Rate. If enabled, the system will restart with the mainstream's maximum frame rate
can be set to 60fps.
• Anti-flicker:
o
Off: disable the anti-flicker function. This is used mostly in outdoor installations (default).
o 50Hz: reduce flicker in 50Hz lighting conditions.
o 60Hz: reduce flicker in 60Hz lighting conditions.
• Smart IR: This function avoids image overexposure and underexposure by controlling the brightness of
the IR lights according to the environmental conditions. This feature is disabled by default.
•
White Balance: Adjust the color temperature according to the environment.
o Auto: Adjust the color temperatures automatically based on the current environment (default).
o Indoor: Adjust the color temperature for indoor installations.
o
Outdoor: Set the color temperature for outdoor installations.
o Manual: Set the color temperature manually. If selected, adjust the Red Gain bad Blue Gain
values as needed.
• Frequency: 50Hz and 60Hz can be optional (Default value is 60Hz).
• Day/Night Mode:
o
Auto: The camera will switch between color and B/W modes automatically based on the
lighting conditions (default). Adjust the light sensitivity from the drop-down option (Mild is the
default value). If needed, users can add a delay, in seconds, before the camera switches
between color and B/W.
o Day: The camera will remain in color mode regardless of the lighting conditions.
o
Night: The camera will remain in B/W mode regardless of the lighting conditions.
o Timing: If selected, set the hours when the camera will switch to color (daytime) and B/W
(night-time).
• Infra-red Mode: Choose "Auto", "ON" or "OFF".
•
Exposure Mode:
o Auto: The camera's exposure is adjusted automatically based on the lighting conditions
(default).
o
Manual: Manually dust the digital shutter speed.
• Gain Mode and limit: Select from auto (default) and manual. If the gain mode is set to auto, adjust the
gain limit (default is 50). If "Manual" is selected, adjust the gain value (50 is the default).
• Corridor Pattern: Corridor modes are for situations such as long hallways, where the camera is mounted
at a sharp angle to capture the entire scene. 0°, 90°, 180° and 270° options are available. The default
value is 0. The video resolution should be 2.1MP/1080p or lower if this function is used.
• Image Mirror: Turn the current image horizontally.
•
Image Flip: Turn the current image vertically.

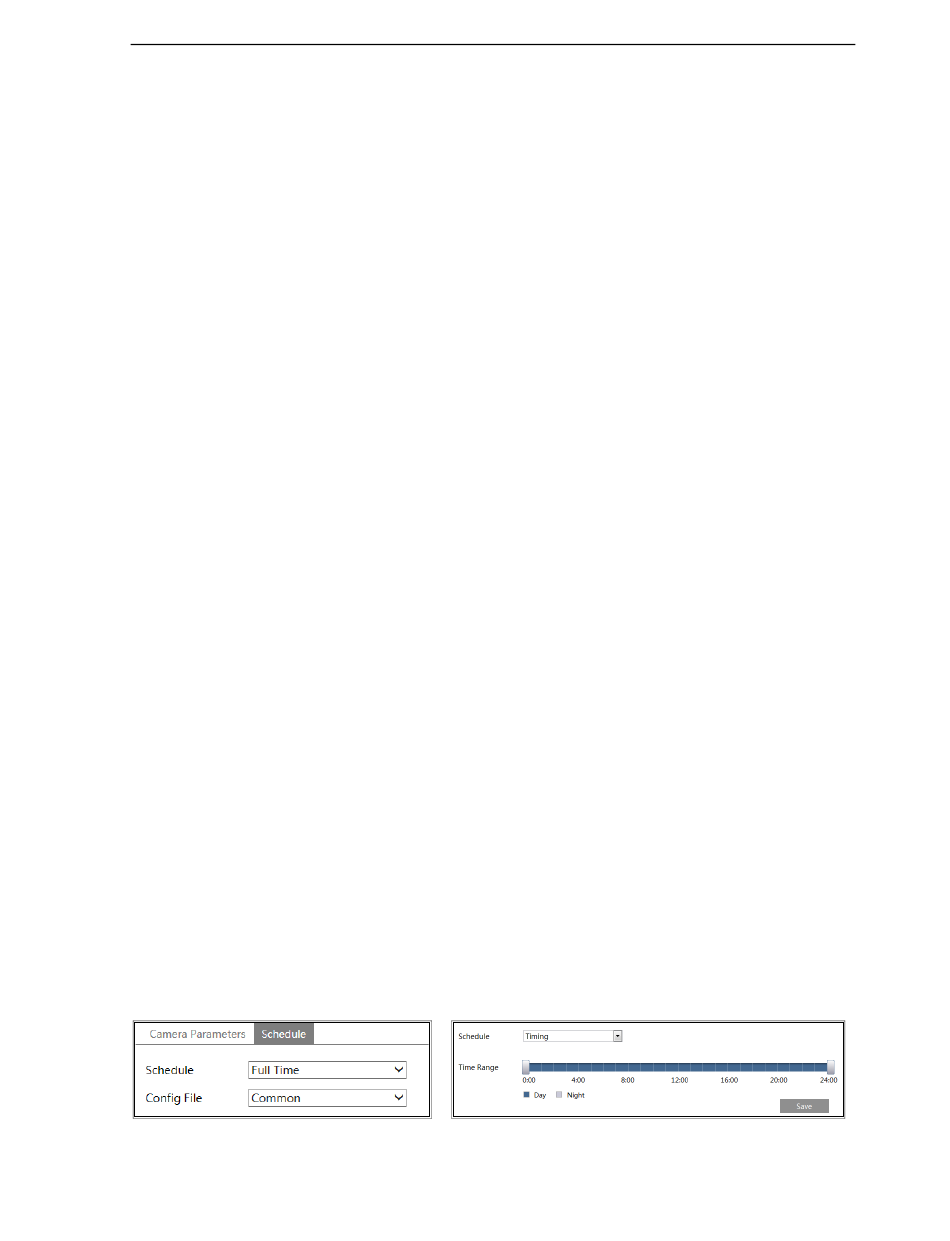

Users can setup a schedule for the different profiles to go into effect. To enable, click on the "Schedule" tab
on the top left and select "Timing" from the Schedule drop-down options.
Drag the time bar icons to set the time of day and night. Blue means day time and blank means night time.
