Image Configuration

The Image Configuration menu includes Display, Video/Audio, OSD, Video Mask and ROI Configuration.
4.2.1

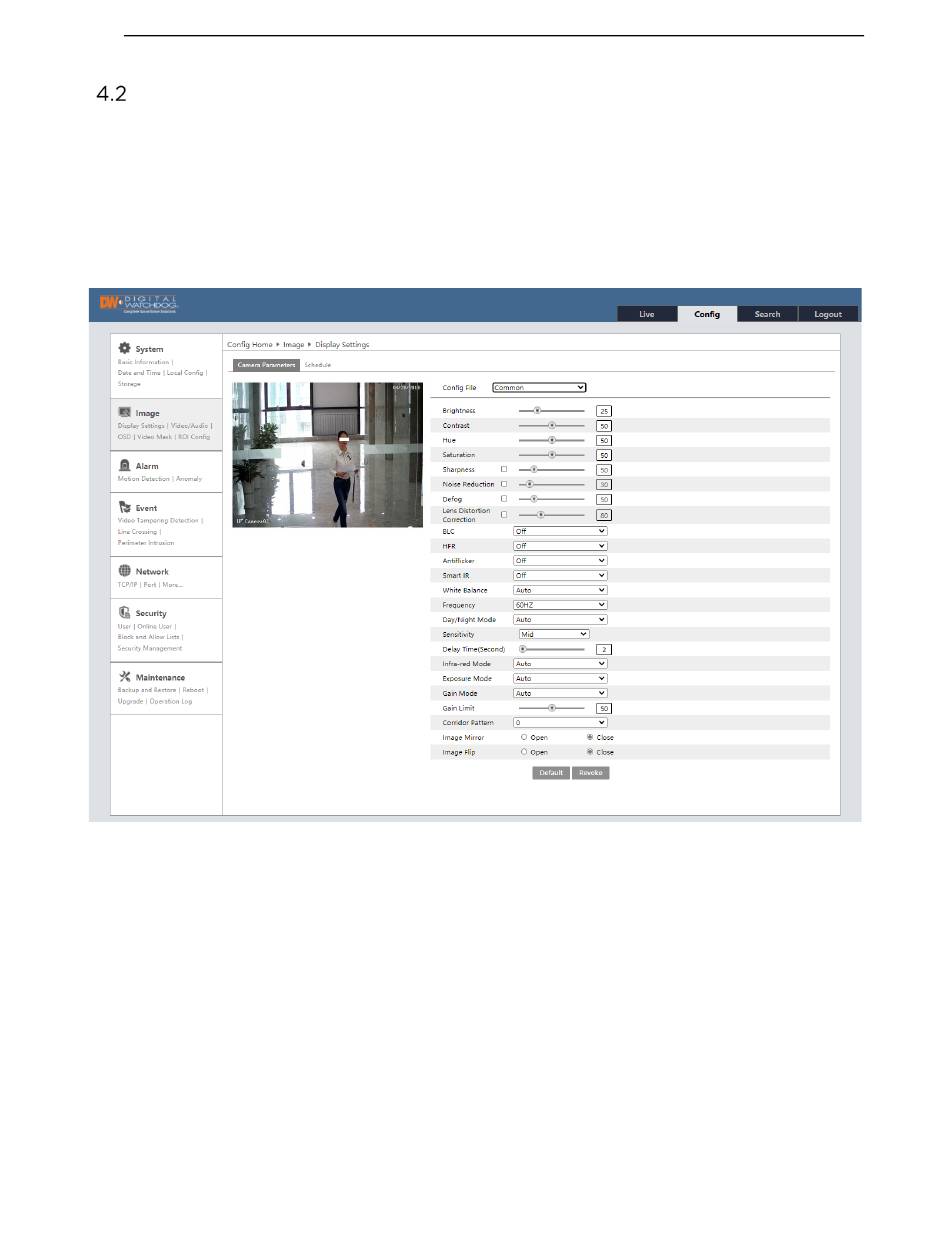

Display Configuration

The image's settings can be adjusted from this screen. The setting screen includes a small preview of the
camera's view to see the applied settings for a more accurate setup.
Users can also set different profiles for day and night modes.
Settings are applied and saved automatically unless indicated otherwise.
• Brightness: The higher the number, the brighter the image will be. The default value is 25.
• Contrast: The higher the number, the more contrast between colors will appear in the image. The default
value is 50.
•
Hue: Set the total color degree of the image. The default value is 50.
• Saturation: Set the degree of color purity. The purer the color, the brighter the image is. The default is
50.
• Sharpness: Check the box to enable. The higher the number, the sharper lines in the image will appear.
The default is 50.
•
Noise Reduction: Check the box to enable. Reduce the digital noise in the camera. The higher the value,
the more noise will be removed from the image, but it will also reduce the image resolution. The default
is 30.
• Defog: Check the box to enable. When enabled, the camera will compensate and improve the image in
case of a foggy, dusty, smoggy, or rainy environment to get clear images. The default value is 50.
• Lens Distortion Correction: Check the box to enable. When the image appears distorted this feature
is used to correct that. The default value is 80 (Available only on supporting models).
• Backlight Compensation (BLC): Select from the following drop-down options:
-14-
