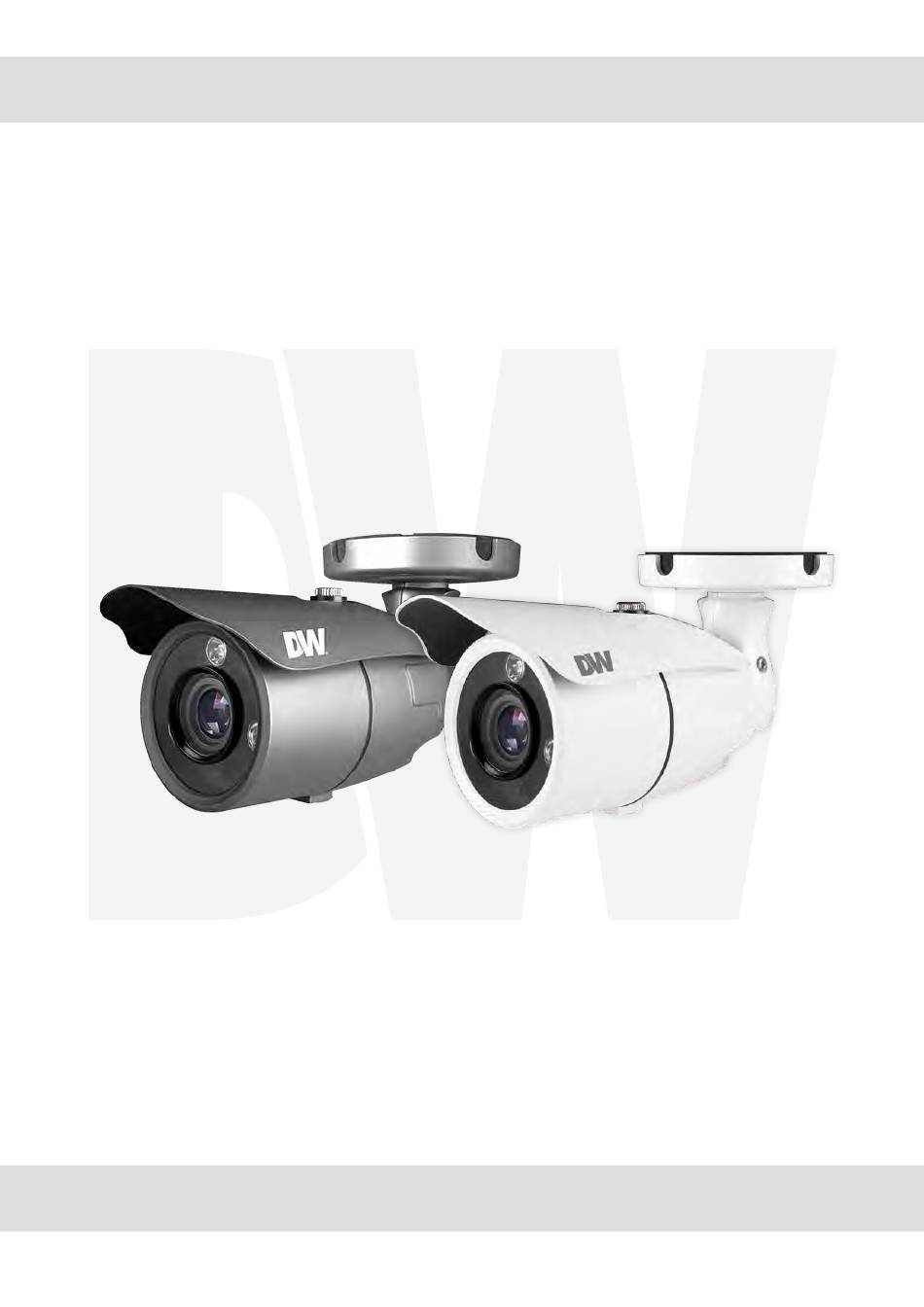

MEGApix ® 2.1MP/1080p bullet IP camera DWC-MB62DiVT DWC-MB62DiVTW User’s Manual Ver. 10/22 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
Page 2
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
Page 3
Important Safety Instructions Read these instructions. - All safety and operating instructions should be read before installation or operation. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions.
Page 4
Table of Contents Introduction Product and accessories..................................5 Parts name......................................6 Installation Disassemble the camera................................7 Factory reset.......................................7 Installation......................................8 Cabling.......................................10 Network Setup DW IP finder.....................................11 Web Viewer Login to the camera..................................12 GUI overview....................................13 Camera Settings Settings>Video and audio setup..............................14 Settings>Camera setup> Image adjustment........................21 Settings>Camera setup>...
Page 5
Introduction - Product and accessories Cables Camera Hex Allan wrench Quick setup guide Screws and plastic anchors-3pcs Moisture absorber Waterproof cap and gasket Mounting template and absorber guide Sunshield cover and adjusting screws...
Page 6
Introduction - Part name Sunshield adjusting screws Mounting bracket Sunshield cover Pan/tilt/rotate stopper screw Lens Reset button Front case RJ-45 connector Waterproof cap DC power jack...
Page 7
Installation - Disassemble the camera Before installing your camera, read the following cautions. 1. Make sure the mounting surface can hold up to five times the weight of your camera. 2. Do not let cables get caught in improper places or the electric line cover get damaged. It may cause a breakdown or fire.
Page 8
Installation - Installation Using the mounting template or the camera itself, mark Mounting template and drill the necessary holes on the mounting surface. Pass the wires through and make all necessary connections. See section 'Installation - Cabling' for more information. To use the camera's waterproof wiring: a.
Page 9
Installation - Adjusting the camera's angle Pan 360˚ Rotate 360˚ Tilt 90˚...
Page 10
Installation - Cabling Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2.
Page 11
Network setup - DW IP Finder Thumbnail view Firmware version Select network to scan Camera's uptime Filter device type to scan Scan devices Show/hide Open device thumbnail view configuration Refresh thumbnail view settings Bulk IP assignment Device's information Firmware upgrade Go to : http://www.digital-watchdog.com and search for ‘IP Finder’...
Page 12
Web viewer screen - Basic screen (default) Password change is required at initial connection in factory reset state. You cannot see the image, and the setup button is disabled. Change the password with the CHANGE PASSWORD button. After changing the default password, you must log in again by pressing the RE-LOGIN button. Password Hint Page - Internet Explorer: Login fail after three failed attempts or click Cancel button.
Page 13
Web viewer screen - Basic screen Web viewer is optimized with IE10 or higher and Firefox. If VLC is not installed or the VLC plugin is not supported (Chrome), live buffering and channel select menu will change to the live viewer menu. If VLC is not installed or updated, you can select HTML5(MJPEG) is under live viewer menu to view live video.
Page 14
Setup - Video and audio setup Video configuration Detail Page – Select an item from the menu tree on the left to open additional sub-categories and settings options. Setup breakdown Video and audio [ VIDEO, OSD, ROI, PRIVACY MASK ] Camera [ IMAGE ADJUSTMENT, EXPOSURE, DAY&NIGHT, BACKLIGHT, WHITE BALANCE, IMAGE, VIDEO ] Network...
Page 15
Setup - Video and audio setup Video configuration Live video channel setup - The camera's video can be configured with a combination of codec and resolution. The camera's performance has to be considered when setting multiple channels. H.265 (HEVC) codec with higher bitrate may cause the unstable live streaming or reload the webpage. Codec - Choose the video codec. According to the selected codec, the subcategories can be changed automatically. Description - Input additional description about the selected channel.
Page 16
Setup - Video and audio setup Video configuration GOP(Group of Pictures) size - Setup the number of frames (P-frame) which contain only changed information based on basic frame (I-frame). For areas with lots of movement, the bigger the GOP value is, only the number of P-frames is bigger. As a result, video resolution will be low but ‘file size’...
Page 17
Setup - Video and audio setup Video configuration Bitrate mode - Select the bit rate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). CBR - To guarantee the designated constant bit rate, the quality of video is controlled in this mode. Therefore, the quality of video is likely to be varying when network traffic is changing.
Page 18
Setup - Video and audio setup OSD configuration Date / Time - Display the current time. User Text - Output the TEXT entered by the user. Support a maximum of 30 characters. Click ‘Apply’ to make above setting effective.
Page 19
Setup - Video and audio setup Region of Interest (ROI) configuration Region of interest function gives much more efficiency picture quality for indicated area to improve picture qualities of movement scene at the same bandwidth. Stream - Select the stream. Currently it supports only H.264, H.265 (HEVC).
Page 20
Setup - Video and audio setup Privacy mask configuration Use this function to mask areas that you want to hide on screen to protect privacy. Activation - The privacy mask function can be enabled or disabled. Area - Select the Area1 ~ Area16 and Set the privacy area. Using your mouse, draw on the camera's preview the size and position of the privacy mask.
Page 21
Setup - Camera setup Image adjustment Sharpness - Adjust the image's sharpness to meet your preference. See the results on the camera's preview. Brightness - Adjust the image's brightness to meet your preference. See the results on the camera's preview. Contrast - Adjust the image's contrast to meet your preference.
Page 22
Setup - Camera setup Exposure settings Auto Exposure - Automatic exposure (AE) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo. Exposure Level - The higher the value, the image becomes brighter. AE metering - AE metering mode refers to the way in which a camera determines the exposure. Shutter speed - If this speed is faster, the moving object can be photographed without the ghost effect.
Page 23
Setup - Camera setup Day and night settings Day and night - Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around. - Day: In this mode, the IR cut filter is applied to the image sensor all the time. The camera's sensitivity is reduced in low light conditions, but the camera can still produce a clear color reproduction.
Page 24
Setup - Camera setup Backlight settings This is a feature used for problematic light conditions where the contrast from light to dark areas is very high. Digital WDR (Digital Wide Dynamic Range) - The digital WDR function can be enabled or disabled. When enabled, the camera will adjust both ever- and under-exposed areas in the camera’s view, resulting in a clearer more visible image.
Page 25
Setup - Camera setup White Balance Activation - Enable or disable White Balance. White Balance mode - Select the appropriate White Balance mode depending on the lighting conditions. RGB gain - The R/G/B gain can be set only when the White Balance mode is set to manual. Click ‘Save’...
Page 26
Setup - Camera setup Image enhancement 3D Digital Noise Reduction - 3DNR reduces digital noise while retaining good video quality in low light conditions. Mirror - Reverse the video from side to side. Flip - Reverse the video from up to down. Click ‘Save’...
Page 27
Setup - Camera setup Video enhancement Flicker - Enable the flicker function to enhance the camera's image in case where flickering is seen. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
Page 28
Setup - Network setup Network status This menu will show a summary of the camera's network settings and information. Settings cannot be changed from this screen.
Page 29
Setup - Network setup Network settings Network type - Set the camera's network type. Select Dynamic or Static IP. Static mode allows you to manually enter the camera's network information, including IP address, subnet mask, gateway, DNS Server and all ports. Dynamic mode allows the camera to get its network settings automatically from the network it is connected to. If you click the Apply button to update changes, the system will be re-booted.
Page 30
Setup - Network setup Auto IP settings General Setting - Auto IP Settings function can be enable or disable. Auto IP Settings Information - It displays the unique id or Auto IP address. Click ‘Apply’ to make above setting effective.
Page 31
Setup - Network setup ONVIF settings Authentication None: Allows access to the camera without ONVIF authentication. WS - Usertoken: Allows access to the camera with WS-User token of ONVIF authentication. WS - Usertoken + Digest: Allows access to the camera with WS-User token and Digest of ONVIF authentication.
Page 32
Setup - Network setup UPNP settings General setting - UPNP function can be enable or disable. Friendly name - Define the friendly name. Support a maximum of 30 characters and special character (/ ~ ! $^ ( ) { } [ ] ; , ) can not be used.
Page 33
Setup - Network setup DDNS settings DDNS disable - If selected, DDNS service does not work. Public DDNS - To use public DDNS service, select a site address listed in the list. After filling out the host name of the site, the setup is completed by entering user name and password registered on that DDNS site. DDNS Provider Site Address DynDNS www.dyndns.com No-IP www.no-ip.com If you setup DDNS properly, the IP address of your camera will be updated automatically whenever IP address is changed...
Page 34
Setup - Network setup FTP settings To send and save images from the camera to an FTP server, an FTP needs to be setup. General setting - Enable or disable the FTP function. FTP server address - Enter the FTP server's IP Address. If the IP address is incorrect, a message box will appear. FTP upload path - Enter the path in the FTP server where the video from the camera will be stored. For the path name, English alphabets, numbers and special characters ( / ~ !@ $ ^ ( ) _ - { } [ ] ;...
Page 35
Setup - Network setup SMTP settings To send images from the camera to an E-mail account, SMTP needs to be setup. General setting - Disable or enable the SMTP function. Mode - Select security mode of SMTP from plain or SSL / TLS. After checking account setup of your SMTP server, you may select one.
Page 36
Setup - Network setup SNMP settings SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of read community and write community. SNMP trap can be used to check periodically for operational thresholds or failures that are defined in the MIB. SNMP trap - SNMP trap can be enabled or disabled.
Page 37
Setup - Network setup RTSP information Target Stream - Select the stream you want to set. Time out - Set the RTSP time out. The session is disconnected after the specified time out. RTP Multicast - Check RTP Multicast On/Off. To activate RTP Multicast. 1. Click “On” button. 2. Enter accessible RTP Multicast IP, port for video stream control, RTP packet TTL. 3.
Page 38
Setup - Trigger action setup Action rules configuration Action rules list - It indicates the custom action rule information added to action rules list. Click ‘Add’ to add custom action rules. Click ‘Modify' to modify selected item from the action rules list. Click 'Delete' to delete selected item from the action rules list.
Page 39
Setup - Trigger action setup Action rules add / modify Name - Define name of action rules. Input text cannot exceed the limit (3~15). Action1 ~ Action5 - Select the action to take If the event occurs. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous menu.
Page 40
Setup - Trigger action setup Image transfer configuration Pre- / post- alarm image - Image transfer due to event is configured by setting up the image transfer rate and pre and post alarm duration. Descriptions Number of images Define Number of images transferred per second. Pre-alarm duration Define duration of the image transfer before an event.
Page 41
Setup - Event setup Event rules configuration Event rules list - It indicates the custom event rule information added to event rules list. Click ‘Add’ to add custom event rules. Click ‘Modify' to modify selected item from the event rules list. Click 'Delete' to delete selected item from the event rules list.
Page 42
Setup - Event setup Event rules configuration Name - Define the event rule name. Event - Select an event type from motion detection, network disconnection, illegal login detected, temperature critical or sensor detection. Click 'Cancel' to return to the previous setting.
Page 43
Setup - Event setup Motion detection configuration Motion Detection - When the camera detects motion, it will show the motion detection icon in orange on the camera's view. Event alert icon( appears if ‘motion detection’ is activated. Area - Set the motion detected area. Select an area from the drop-down list. Using the mouse, click and drag to mark the size and position of the motion detection zone.
Page 44
Setup - Security setup IP address filter configuration IP address filter - Enable or disable IP filter function. If enabled, you can filter and prevent access to the IP camera from specific IP addresses. IP filter type - Select the IP filter type. Click ‘Apply’ to make above setting effective.
Page 45
Setup - Security setup RTSP authentication configuration RTSP authentication - RTSP authentication can be enable or disable. Click ‘Apply’ to make above setting effective.
Page 46
Setup - Security setup IEEE 802.1X configuration The feature is needed when connecting the camera to a network protected by the IEEE 802.1X. IEEE 802.1x - The IEEE 802.1x feature can be enabled or disabled. Protocol - MD5: It provides one-way password-based network authentication of the client. - PEAP: It is similar to TTLS in that it does not require a certificate on the client side.
Page 47
Setup - Security setup HTTPS configuration HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications. Certificate - Select an installed certificate. If you cannot select a certificate, please install the certificate from the security > certificates menu. HTTPS connection policy - Select one of “HTTP”, “HTTPS”, “HTTP and HTTPS” depending on the connected user authority. Click ‘Apply’...
Page 48
Setup - Security setup Certificates configuration Server/client certificates - It show the installed certificates. Create self-signed certificate - A self-signed SSL certificate is an identity certificate signed by its own creator. They are considered to be less trustworthy. Properties - Shows information about the selected certificate. Delete - Delete the selected certificate.
Page 49
Setup - Security setup Certificates configuration Detail for install certification. Certificate from signing request - Select to install signed certificate returned from the CA. Certificate and private key - Select Certificate And Private Key to install a certificate and private key. Certificate name - Enter a unique name to identify certificate. Select file - Choose certification file. OK - Request installing certificate. Cancel - Cancel install certificate and then back to certificates configuration. Detail for install CA certification. Certificate name - Enter a unique name to identify CA certificate. Select file - Choose CA certification file OK - Request installing CA certificate.
Page 50
Setup - Security setup Service configuration SSH - The SSH function can be enable or disable. Click ‘Apply’ to make above setting effective.
Page 51
Setup - System setup System information System Capability information. Device Name - You can define the device name. Click ‘Apply’ to make above setting effective.
Page 52
Setup - System setup System diagnostics Shows basic hardware functions after inspection. Shows SD card, NAND, EEPROM, Audio chip and important file system. Warning: If the camera is abnormally terminated, a download button will appear on the diagnostics page to download a file that allows you to check the error information you can.
Page 53
Setup - System setup Firmware update Version Information - It shows the current Firmware Version in the system. Web Update - Select the Firmware file in your computer by clicking [Select file] button. Start F / W Update - Click this button to start update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong file name, an error message will be shown.
Page 54
Setup - System setup Firmware update FTP Server Address - Define FTP Server IP Address. If IP Address form is incorrect, a Message box will be shown to try again. FTP Port - Define the FTP Server Port. If Port is not appropriate, it is impossible to access to FTP Server. User ID - Define User ID to access to the FTP Server.
Page 55
Setup - System setup Date and time settings Time zone setup - Choose a timezone for the camera. The camera is set by default to PST. Click ‘Apply’ to make the change effective. The timezone must be setup before adjusting the camera's date and time. Time format - Select the time display format from yy-mm-dd or mm/dd/yy.
Page 56
Setup - System setup DST settings Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months, and back again in the fall, in order to make better use of natural daylight. General setting - DST function can be enabled or disabled.
Page 57
Setup - System setup Users management Users - List all the user accounts for authentication. Add - Register a new user. Enter a new user ID except Admin. Password Enter the user password. (Check the Password) Retype password Enter the user password again for verification. Password hint Enter the password hint.
Page 58
Setup - System setup System log Filter - Select a date, time, sort or type of log to filter the log. Click the 'refresh' button to refresh the log list. Click 'filter' to view the filtered log. System log list - The filtered log is displayed.
Page 59
Setup - System setup Factory reset Reset to the factory defaults - Return the setup to the factory default. All - Reset all Settings to the factory defaults. Except network settings and user settings - Reset the camera to it default settings except for the network and user related settings. Click ‘Apply’ to make above setting effective.
Page 60
Setup - System setup Restart If you click the ‘RESTART’ menu, a message box will be shown to confirm. Click the ‘OK’ button to restart.
Page 61
Setup - System setup System open source license This menu shows all system open source licenses in the camera. The data shows the open source's name, version and license information.
Page 62
Appendix Quick start of network connection Please follow the steps below to complete Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP Please do not power on the IP Camera until instructed. 1) Open Internet Explorer.
Page 63
Appendix Network set up DDNS registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. At first, you have to check if you are using dynamic addressing.
Page 64
Appendix Guide to network environment Please configure the IP Camera at the If prompted for ID and Password, use ‘admin’ for both entries. The default web port number is 80. If port 80 is installation site. You must determine your blocked by the ISP, a value between 1025 ~ 60000 should network scenario in order to configure the IP be used.
Page 65
Appendix Network set up case A, B Case A: Configure your IP Camera’s TCP/IP properties Dynamic IP + Personal Router [Most SOHO] as follows: Network Type: STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Internet Address: A private IP address such as Camera 192.168.0.200 (Example)
Page 66
Appendix Network set up case C, D Case C: Case D: Static(Fixed) IP Dynamic IP + DSL/Cable Modem [Dedicated line directly to the IP Camera] [Connected directly to the IP Camera] Camera Camera Cable/xDSL Modem Gateway or Router (ISP Provided) at ISP Phone Line Public Line...
Page 67
Appendix Port forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’ (Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP Camera and to configure ‘Port Forwarding’. IP Camera TCP/IP Settings IP Address Subnet Mask Default Gateway...
Page 68
Appendix Starting the IP camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.
Page 69
Appendix 1. My POWER light is not on? 8. How do I “PING” an IP address? Power is not being supplied to the unit. Please use the 1) Open an MS-DOS (or Command) prompt 2) At the prompt type - “ping xxx.xxx.xxx.xxx” (without the power supply shipped with the unit and verify that a power source is active from the attached power outlet used to quotes and replace the “x”...
Page 72
