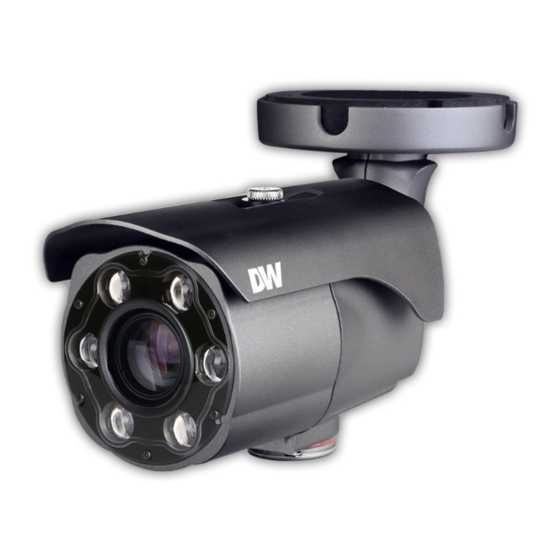

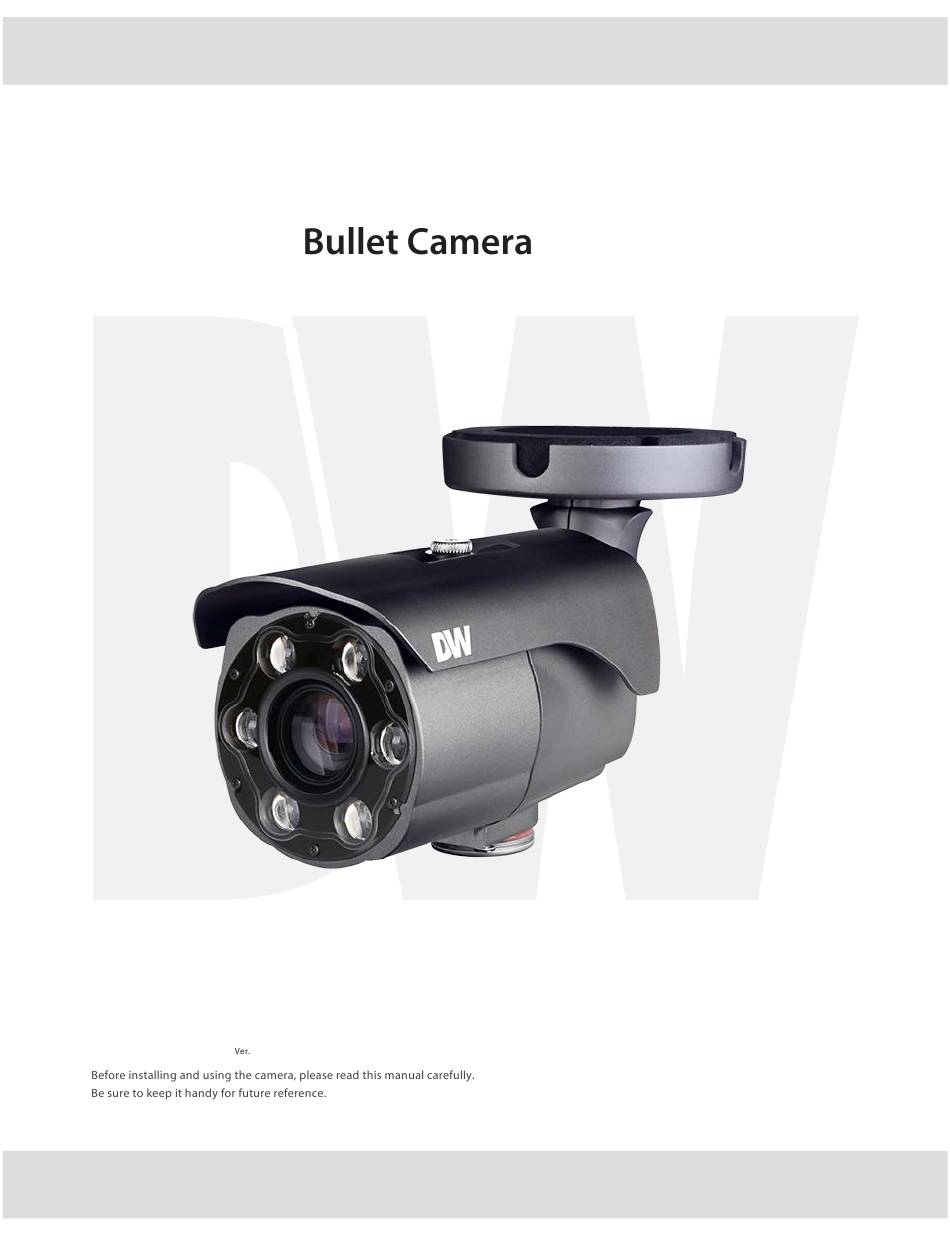

- Page 1 MEGApix® CaaS Long Range DWC-MB44Wi650C6 - 64GB storage DWC-MB44Wi650C1 - 128GB storage DWC-MB44Wi650C2 - 256GB storage User’s Manual 02/20...
- Page 2 Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
- Page 3 Important Safety Instructions Read these instructions. - All safety and operating instructions should be read before installation or operation. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions.
-
Page 4: Table Of Contents
Table of Contents Introduction Product & Accessories..................................5 Parts Name......................................6 Installation Disassembling the Camera................................7 Installation......................................8-11 Factory Reset......................................7 Cabling........................................12 SD Memory Card....................................13 Network Setup DW IP Finder......................................14 Network Connection ..................................15 DDNS Registration..................................16 Network Environments................................17-19 Port Forwarding....................................20 Starting the IP Camera...................................21 Web Viewer GUI Overview....................................22 Camera Settings Setup >... -
Page 5: Introduction
Introduction - Product & Accessories Please check if all the camera and accessories are included in the package. Cables Camera Hex Allen wrench Test video cable DC plug cable Waterproof cap and gasket Mounting template Screws and plastic anchors-4pcs Quick setup guide... -
Page 6: Parts Name
Introduction - Part Name Sunshield adjusting screws Sunshield Lens Pan/tilt stopper screw Control board Bracket Control board cap Alarm in/out RJ-45 connector Waterproof cap Audio in/out DC power jack... -
Page 7: Installation
Installation - Installation Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear ve times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or re. -
Page 8: Cabling
Installation - Cabling Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE Switch or PoE Injector 2. - Page 9 Installation - Cabling Activation Activation Alarm In Red : ALARM_OUT+ Black : ALARM_OUT- Yellow : GND White : ALARM_IN+ Alarm Out Audio Out Audio In Audio In Alarm Out Cable of the sensor/alarm input device should connect to It connects to the alarm lights, siren or lamps and the sensor alarm in+ and alarm in- of the cable slot.
-
Page 10: Sd Memory Card
Installation - Inserting/Removing SD Memory Card The memory card is an external data storage device that has to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC) - Manufacturer: Transcend, Kingston, Toshiba, SanDisk - Capacity: 4GB~128GB - Class: over UHS-I U3 Class 10... -
Page 11: Network Setup
Network setup - DW IP Finder Thumbnail view Firmware version Select network to scan Camera's uptime Filter device type to scan Scan devices Show/hide Open device thumbnail view configuration Refresh thumbnail view settings Bulk IP assignment Device's information Firmware upgrade Go to : http://www.digital-watchdog.com and search for ‘IP Finder’... - Page 12 Network Setup - Quick Start of Network Connection Please follow the steps below to complete 11. Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP 1) Open Internet Explorer.
-
Page 13: Ddns Registration
Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. At first, you have to check if you are using dynamic addressing. - Page 14 Network Setup - Guide to Network Environment Please configure the IP Camera at the 5. The following descriptions are several basic network scenarios. Determine which scenario describes your network. installation site. You must determine your If your network does not match one of the scenarios below network scenario in order to configure the IP and you are unsure how to setup your IP Camera, contact Camera with the proper TCP/IP settings.
- Page 15 Network Setup - Setup Case A, B Configure your IP Camera’s TCP/IP properties Case A: as follows : Dynamic IP + Personal Router [Most SOHO] 1. Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Camera 2.
- Page 16 Network Setup - Setup Case C, D Case D: Case C: Dynamic IP + DSL/Cable Modem [Connected Static(Fixed) IP [Dedicated line directly directly to the IP Camera] to the IP Camera] Camera Camera Phone Line or CATV Cable/xDSL Modem (ISP Provided) Public Line Gateway or Router at ISP...
-
Page 17: Port Forwarding
Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’(Cases A, B). 1. Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP Camera and to configure ‘Port Forwarding’. -
Page 18: Starting The Ip Camera
Network Setup - Starting IP Camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. 1. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration. -
Page 19: Web Viewer
Web Viewer Screen - Basic Screen Web viewer is optimized with explorer10 or above version and Firefox. If VLC is not installed or VLC plugin is not supported (Chrome), Live buffering and Channel select menu on 3, 4 will be changed to Live Viewer menu, and then if HTML5(MJPEG) is selected on Live Viewer menu, then you can check the video. - Page 20 Setup - Video & Audio Setup Video Configuration Detail Page - When you selects an item from the menu, you can set the details for the selected item. Setup Constitution Video&Audio [ VIDEO, OSD, ROI, PRIVACY MASK ] Camera [ IMAGE ADJUSTMENT, EXPOSURE, DAY&NIGHT, BACKLIGHT, WHITE BALANCE, IMAGE, VIDEO ] Network [ STATUS, NETWORK SETTING, AUTO IP, ONVIF, UPNP, DDNS, FTP, SMTP, SNMP, RTSP INFORMATION ] Trigger Action...
- Page 21 Setup - Video & Audio Setup Video Configuration Live Video Channel Setup - The video can be configured to variety settings with a combination of codec and resolution. The camera performance has to be considered when setting multiple channels. This effects on the performance of the camera. Codec - Choose the video codec.
- Page 22 Setup - Video & Audio Setup Video Configuration GOP(Group of Pictures) Size - Set up the number of frames (P-frame) which contain only changed information based on basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size bigger, only the number of P-frames is bigger. As a result, video resolution will be low but ‘File size’...
- Page 23 Setup - Video & Audio Setup Video Configuration Bitrate Mode - Select the bitrate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). CBR - To guarantee the designated constant bit rate, the quality of video are controlled in this mode. Therefore, the quality of video is likely to be varying when network traffic is changing.
-
Page 24: Setup > Video & Audio > Osd Configuration
Setup - Video & Audio Setup OSD Configuration Date / Time - Display the current time. User Text - Output the TEXT entered by the user. Support a maximum of 30 characters. Click ‘Apply’ to make above setting effective. -
Page 25: Setup > Video & Audio > Region Of Interest Configuration
Setup - Video & Audio Setup Region of Interest Configuration Region of interest function gives much more efficiency picture quality for indicated area to improve picture qualities of movement scene at the same bandwidth. Stream - Select the Stream. Currently it supports only Channel1. Activation - The Region of interest can be enable or disable. -
Page 26: Setup > Video & Audio > Privacy Mask Configuration
Setup - Video & Audio Setup Privacy Mask Configuration Use this function to mask areas that you want to hide on screen to protect privacy. Activation - The Privacy mask function can be enable or disable. Area - Select the Area1 ~ Area16 and Set the privacy area. Click ‘Save’... - Page 27 Setup - Camera Setup Camera Image Adjustment Sharpness - Using this control, sharpness of image can be adjusted to meet your preference. Brightness - Using this control, brightness of image can be adjusted to meet your preference. Contrast - Using this control, contrast of image can be adjusted to meet your preference. Saturation - Using this control, Saturation of image can be adjusted to meet your preference.
- Page 28 Setup - Camera Setup Camera Exposure Settings Auto Exposure - Automatic exposure(AE) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo. Exposure Level - If this value is increases, the image becomes brighter. AE metering - AE metering mode refers to the way in which a camera determines the exposure.
- Page 29 Setup - Camera Setup Camera Day & Night Settings Day & Night - Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around. - Day: In this mode, the IR cut filter is applied to the image sensor all the time. Thus, the sensitivity will be reduced in the dark light condition but the better color reproduction performance are obtained.
- Page 30 Setup - Camera Setup Camera Backlight Settings This is a feature used for problematic light conditions where the contrast from light to dark areas is very high. WDR (Wide Dynamic Range) - The WDR function can be enable or disable. WDR Level - Select the WDR level depending on the difference in brightness between the darkest and lightest part of an image.
- Page 31 Setup - Camera Setup Camera White Balance Activation - White Balance can be enable or disable. White Balance Mode - Select White Balance depending on the lighting conditions. RGB Gain - The R/G/B gain can be set only when the White Balance Mode is set to Manual. Click ‘Save’...
- Page 32 Setup - Camera Setup Camera Image Enhancement 3D Noise Reduction - 3DNR function enables to suppress noise and retain good video quality in low light conditions. Mirror - Reverse the video from side to side. Flip - Reverse the video from up to down. Click ‘Save’...
-
Page 33: Setup > Camera > Video Enhancement
Setup - Camera Setup Video Enhancement Flicker - This function Enable to enhance the flicker situation. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults. - Page 34 Setup - Network Setup Network Status This menu will show you all the information of Network setting in the camera. However, you cannot change those here.
-
Page 35: Setup > Network Settings
Setup - Network Setup Network Settings Network Type - Define network IP address type from the Static Mode for the fixed IP or the Dynamic Mode by the dynamic IP address. If you select the Static Mode, you must fill out IP Address, Subnet Mask, Gateway, DNS Server and all ports. If you select the Dynamic Mode, the IP address will be allocated automatically by DHCP equipment. - Page 36 Setup - Network Setup Auto IP Settings General Setting - Auto IP Settings function can be enable or disable. Auto IP Settings Information - It displays the unique id or Auto IP address. Click ‘Apply’ to make above setting effective.
- Page 37 Setup - Network Setup ONVIF Settings Authentication None: Allows to access without ONVIF authentication. WS - Usertoken: Allows to access with WS-User Token of ONVIF authentication. WS - Usertoken + Digest: Allows to access with WS-User Token and Digest of ONVIF authentication. Discovery Mode - The discovery function can be enable or disable.
- Page 38 Setup - Network Setup UPNP Settings General Setting - UPNP function can be enable or disable. Friendly Name - Define the friendly name. Click ‘Apply’ to make above setting effective.
- Page 39 Setup - Network Setup DDNS Settings DDNS Disable - If it is selected, DDNS service does not work. Public DDNS - To use public DDNS service, select a site address listed in the list. After filling out the Host Name of the site, the setup is completed by entering User Name and Password registered in that DDNS site.
- Page 40 Setup - Network Setup FTP Settings To transfer / save the image to the relevant sites through FTP, then FTP needs to be setup. General Setting - FTP function can be enable or disable. FTP Server Address - Define FTP Server IP Address. If IP Address form is incorrect, a Message box will be shown to try again. FTP Upload Path - Define a path in FTP server to store video.
- Page 41 Setup - Network Setup SMTP Settings To send / save the image to the relevant sites by Email, SMTP needs to be setup. General Setting - SMTP function can be enable or disable. Mode - Select Security mode of SMTP from Plain or SSL / TLS. After checking account setup of your SMTP Server, you may select one. SMTP Server Address - Define the SMTP Server Address.
- Page 42 Setup - Network Setup SNMP Settings SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of Read community and Write community. SNMP trap can be used to check periodically for operational thresholds or failures that are defined in the MIB. SNMP Trap - SNMP trap can be enable or disable.
- Page 43 Setup - Network Setup RTSP Information Target Stream - Select the channel you want to set. Time out - Set the RTSP time out. The session is disconnected after the specified time out. RTP Multicast - Check RTP Multicast On/Off. To activate RTP Multicast. 1.
-
Page 44: Setup > Trigger Action
Setup - Trigger Action Setup Action Rules Configuration Action rules List - It indicates the custom action rule information added to Action rules list. Click ‘Add’ to add custom action rules. Click ‘Modify' to modify selected item from the action rules list. Click 'Delete' to delete selected item from the action rules list. - Page 45 Setup - Trigger Action Setup Action Rules Add / Modify Name - Define name of action rules. Action1 ~ Action5 - Select the action to take If the event occurs. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous menu.
- Page 46 Setup - Trigger Action Setup Image Transfer Configuration Pre / Post Alarm Image - Image Transfer due to event is configured by setting Image transfer rate and Pre / Post alarm duration. Descriptions Number of Image Define Number of image transferred per second. Pre-alarm Duration Define duration of image transfer before an event.
-
Page 47: Setup > Events Setup
Setup - Event Setup Event Rules Configuration Event Rules List - It indicates the custom Event Rule information added to Event Rules list. Click ‘Add’ to add custom event rules. Click ‘Modify' to modify selected item from the event rules list. Click 'Delete' to delete selected item from the event rules list. - Page 48 Setup - Event Setup Event Rules Configuration Name - Define the Event rule name. Event - Select the event among motion detection, network disconnection, temperature critical. Click 'Cancel' to return to the previous setting. You need a event one more. Rules - Select the action rule defined in the Trigger Action-Action rule menu.
- Page 49 Setup - Event Setup Motion Detection Configuration Motion Detection - It shows the Motion event status. Event Alert Icon( ) appears if ‘Motion Detection’ is activated. Area - Set the motion detected area. You can set up to four areas. Activation - Enable or Disable motion detection function.
- Page 50 Setup - Event Setup Temperature Mode - Select the either Fahrenheit and Celsius. Threshold - Define the temperature at which the event trigger is occurred. Temperature - It indicates the current temperature of the IP camera. Click ‘Apply’ to make above setting effective.
-
Page 51: Setup > Edge Setup
Setup - Edge Setup DW Spectrum ® Edge Version - Displays the version of DW Spectrum ® edge (media server) installed in the camera. Status - Displays the status of the DW Spectrum ® edge (media server) installed in the camera. Wait until the status of the server is marked as 'alive'. - Page 52 Setup - Edge Setup Storage Configuration Display the SD card information mounted from device. When you select the item in Storage list, You can set the functions related to the SD card.
- Page 53 Setup - Edge Setup Storage Configuration Storage Size - Total capacity of SD card and the remainder of it are displayed. Unmount - Remove the SD card from the device. UNMOUNT cannot be done when EDGE (Media server) is running. Format - Delete the all contents that stored in SD card.
-
Page 54: Setup > Security
Setup - Security Setup IP Address Filter Configuration IP Address Filter - IP filter function can be enable or disable. IP Filter Type - Select the recording IP filter type. Click ‘Apply’ to make above setting effective. Filter IP Address - Display the filtered IP address. IP Address - Define the IP address you want to apply the IP filter. - Page 55 Setup - Security Setup RTSP Authentication Configuration RTSP Authentication - RTSP Authentication can be enable or disable. Click ‘Apply’ to make above setting effective.
- Page 56 Setup - Security Setup IEEE 802.1X Configuration The feature is needed when connecting the camera to the network protected by the IEEE 802.1X. IEEE 802.1x - The IEEE 802.1x feature can be enable or disable. Protocol - MD5 : It provides one-way password-based network authentication of the client. - PEAP : It is similar to TTLS in that it does not require a certificate on the client side.
- Page 57 Setup - Security Setup HTTPS Configuration HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications. Certificate - Select an installed certificate. If you can not select a certificate, please install the certificate from the Security->Certificates menu. HTTPS connection Policy - Select one of “HTTP”, “HTTPS”, “HTTP and HTTPS”...
- Page 58 Setup - Security Setup Certificates Configuration Server/Client Certificates - It show the installed certificates. Create Self-Signed Certificate - A self-signed SSL certificate is an identity certificate signed by its own creator. but they are considered to be less trustworthy. Properties - Shows information about the selected certificate. Delete - Delete the selected certificate.
- Page 59 Setup - Security Setup Certificates Configuration Detail for Install Certification. Certificate From Signing Request - Select to install signed certificate returned from the CA. Certificate And Private Key - Select to install Certificate And Private Key to install a certificate and private key. - Use Separate Key : Too install certificate uploading Certificate and Private Key file.
- Page 60 Setup - Security Setup Service Configuration Telnet - The Telnet function can be enable or disable. Click ‘Apply’ to make above setting effective.
- Page 61 Setup - System Setup System Information System Capability information. Device Name - You can define the device name. Click ‘Apply’ to make above setting effective.
- Page 62 Setup - System Setup Firmware Update Version Information - It shows the current Firmware Version in the system. Web Update - Select the Firmware file in your computer by clicking [Select file] button. Start F / W Update - Click this button to start update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong file name, an error massage will be shown.
- Page 63 Setup - System Setup Firmware Update FTP Server Address - Define FTP Server IP Address. If IP Address form is incorrect, a Message box will be shown to try again. FTP Port - Define the FTP Server Port. If Port is not appropriate, it is impossible to access to FTP Server. User ID - Define User ID to access to the FTP Server.
- Page 64 Setup - System Setup Date & Time Settings TimeZone Setup - Choose TimeZone for camera. It will be activated after clicking ‘Apply’ button. Prior to setting below ‘New Camera Date & Time’, set correct Timezone first. Time Format - Select the time format yy-mm-dd or mm/dd/yy. Current Date &...
- Page 65 Setup - System Setup Users Management Users - List all the user accounts for authentication. Add - Register a new user Enter a new user ID except Admin since it exists. Password Enter the user Password. Enter the user Password again for verification. Verify Select Operator or Viewer.
- Page 66 Setup - System Setup System Log Filter - Select a date, sort or type of log to filter the log. Click the 'Refresh' button to refresh the log list. Click 'Filter' to view the filtered log. System Log List - The filtered log is displayed.
-
Page 67: Setup > System > Factory Reset
Setup - System Setup Factory Reset Reset to the factory defaults - Return the setup to the factory default. All - Reset all Settings to the factory defaults. Except Network Settings - Except Network related settings, reset all others to the factory default. Click ‘Apply’... - Page 68 Setup - System Setup Restart If you click the ‘RESTART’ menu, a message box will be shown to confirm. Click the ‘OK’ button to restart.
-
Page 69: Appendix
Appendix A : Current TCP/IP Settings If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ. 1. Windows 7 Users 2. - Page 70 Appendix - B : Changing IP address and subnet mask 1. Windows 7 Users 2. Windows 10 Users Start Start Control Panel Settings Network and Network & Internet sharing center Click on Change adapter options in Manage network Ethernet connections Select the Ethernet, Properties Right click and...
-
Page 71: Faqs
Appendix - My POWER light is not on? How do I “PING” an IP address? Power is not being supplied to the unit. Please use the power 1) Open an MS-DOS (or Command) prompt supply shipped with the unit and verify that a power source 2) At the prompt type - “ping xxx.xxx.xxx.xxx”... -
Page 72: Dimensions
Specifications - Dimension Unit: Inch (mm) 9.7" (247.2mm) 3.6" 3.8" (96.7mm) (92.4mm) 5.19" (131.9mm) 3.8" (94mm) Ø 3.07" (78mm) Ø 0.16" (4.2mm) -
Page 73: Warranty
Warranty Information Digital Watchdog (referred to as “the Warrantor”) warrants the Camera against defects in materials or workmanships as follows: Labor: For the initial five (5) years from the date of original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit with new or refurbished product at its option, at no charge. -
Page 74: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights from vary from state to state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 16220 Bloomfield Ave... - Page 75 DW® east coast office and warehouse DW® west coast office and warehouse...
