4.5.4

SNMP

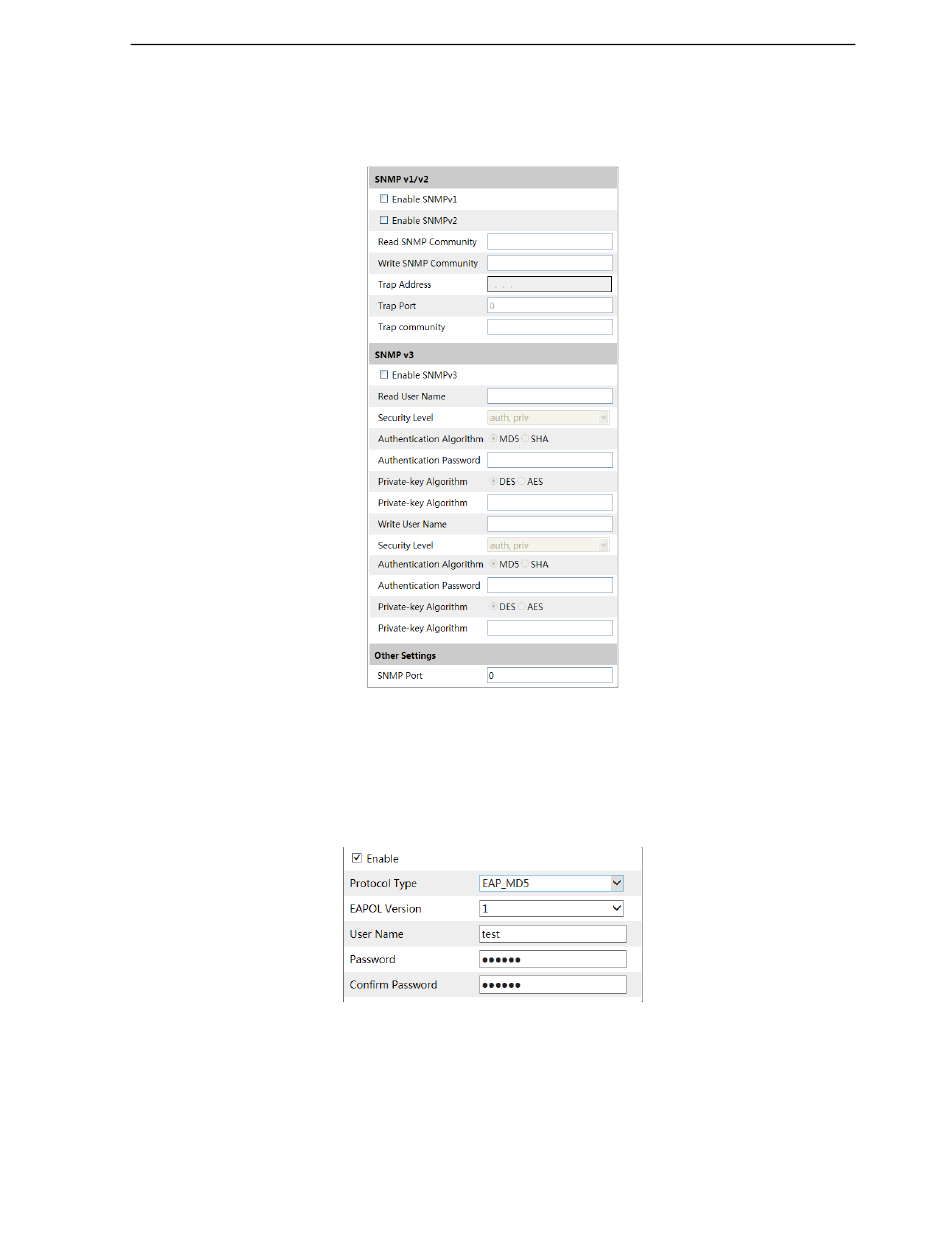

Use the SNMP settings page to get the camera status, parameters and alarm information. Before using SNMP,
Contact your network administrator for more information.
Select which SNMP version to use (SNMPv1, SNMPv2, SNMPv3), and fill out the information under each
section accordingly.
4.5.5

802.1x

If enabled, when the camera is connected to the network, the data streamed from the camera will be protected
by the IEE802.1x. User authentication is needed.
The camera must be connected to a switch supporting 802.1x protocol.
Protocol type and EAPOL version: Please use the default settings.
Username and password: The username and password must be the same with the username and password
applied for and registered in the authentication server.
-32-
