4.5.6

RTSP

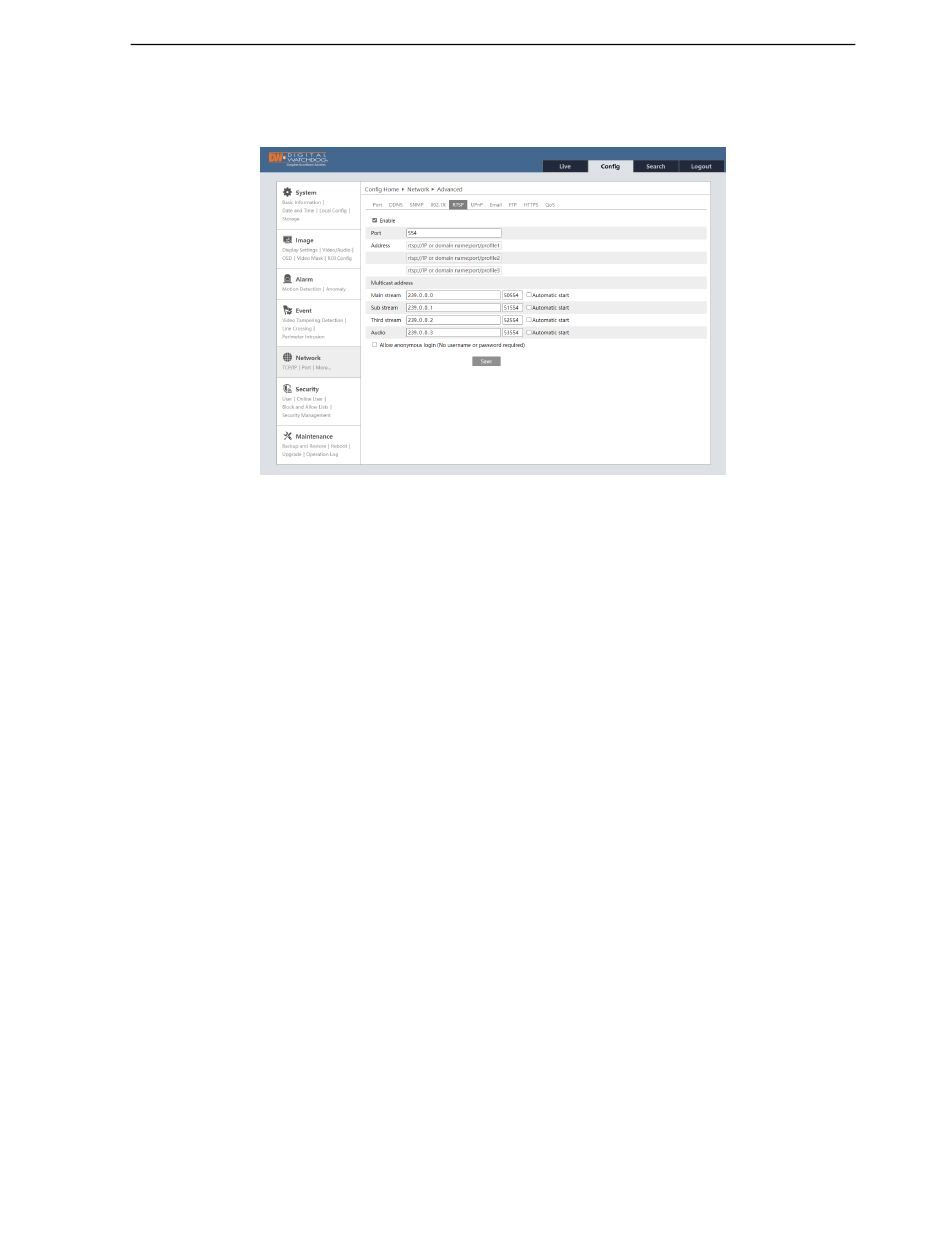

Use this setup screen to configure the camera's RTSP settings.
Select "Enable" to enable the RTSP function.
• Port: Access port of the streaming media. The default is 554.
• RTSP Address: The RTSP address (unicast) format can be used to play the stream in a media player.
•
Multicast Address
o Mainstream: The address format is: "rtsp:/ /IP address: rtsp port/profile1?transportmode=mcast".
o Substream: The address format is: "rtsp:/ /IP address: rtsp port/profile2?transportmode=mcast".
o
Third stream: The address format is: "rtsp:/ /IP address: rtsp port/profile3?transportmode=mcast".
o Audio: Having entered the main/substream in a VLC player, the video and audio will play automatically.
If "Allow anonymous login (no username or password required)" is checked, there is no need to enter the
username and password to view the video.
Notes:
1. The camera supports local play through a VLC player. Enter the RTSP address (unicast or multicast, eg.
RTSP:/ /192.168.226.201:554/profile1?transportmode=mcast) in a VLC player to realize the simultaneous play
with the web client.
2. The IP address mentioned above cannot be the address of IPv6.
3. Avoid the use of the same multicast address in the same local network.
4. When playing the video through the multicast streams in a VLC player, please pay attention to the mode of
the VLC player. If it is set to TCP mode, the video cannot be played.
5. If the coding format of the video of the mainstream is MJPEG, the video may be disordered at some
resolutions.
-33-
