Security Switch Anybus Communicator - Common Ethernet to
Modbus TCP Client
Use a pointed object, such as a ballpoint pen.
• To lock the security switch, push the toggle towards the Communicator front.
• To unlock the security switch, push the toggle towards the Communicator back.
Security Switch Status LED

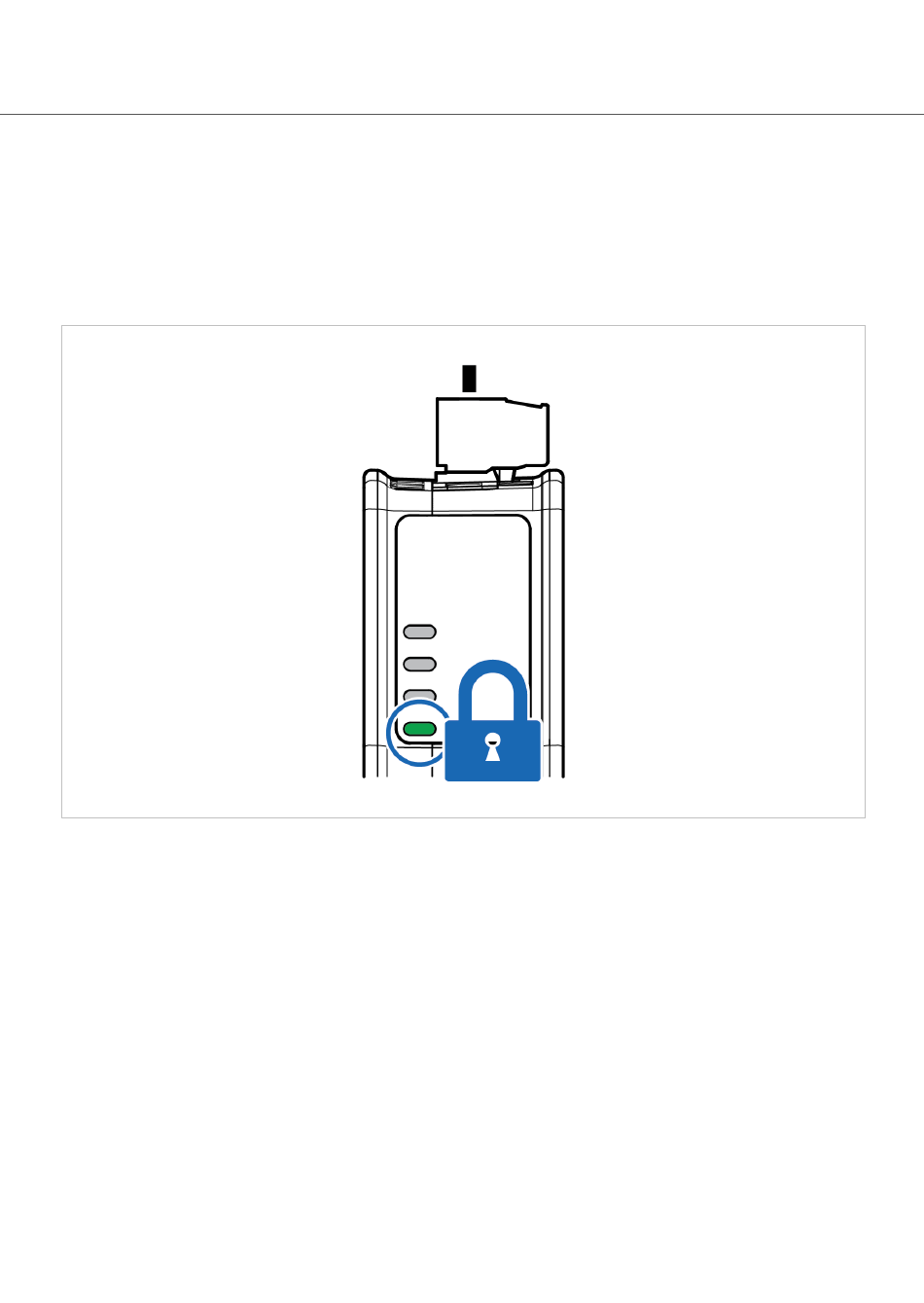

Figure 9. Security switch locked status LED
When the security switch is in its:
• locked position, the security switch status LED turn solid green.
• unlocked position, the security switch status LED is turned off.
