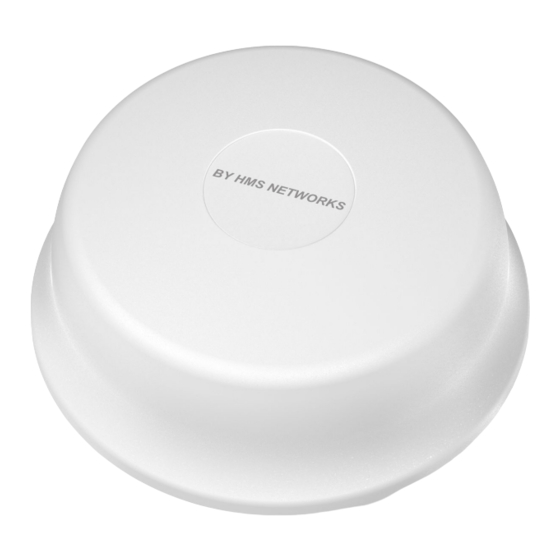

HMS Wireless Bolt 5G User Manual
  1. Manuals
  2. Brands
  3. HMS Manuals
  4. Network Hardware
  5. Wireless Bolt 5G
  6. User manual

HMS Wireless Bolt 5G User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

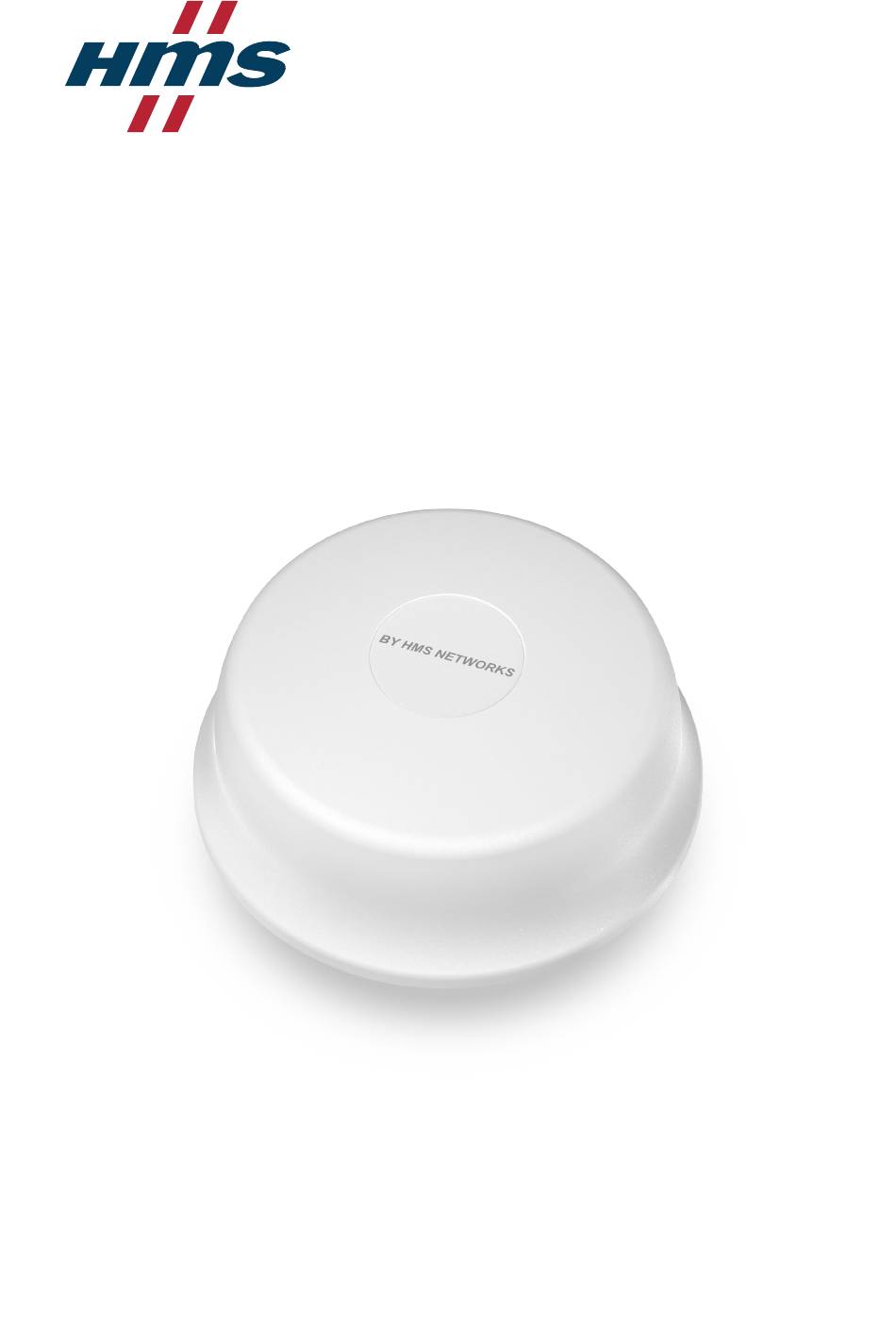

ENGLISH
™
Wireless Bolt 5G
USER MANUAL
SCM-1202-211
Version 1.0
Publication date 2024-02-14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless Bolt 5G and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Wireless Bolt 5G

Summary of Contents for HMS Wireless Bolt 5G

  • Page 1 ENGLISH ™ Wireless Bolt 5G USER MANUAL SCM-1202-211 Version 1.0 Publication date 2024-02-14...
  • Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: Table Of Contents

    ™ Wireless Bolt 5G Table of Contents 1. Preface ..........................1 1.1. About This Document ......................1 1.2. Document Conventions ..................... 1 1.3. Trademarks ........................2 2. Safety ............................ 3 2.1. General Safety ......................... 3 2.2. Intended Use ........................3 3.
  • Page 4 ™ Wireless Bolt 5G 5.10. Lock Configuration ......................48 5.11. Unlock Configuration ...................... 48 5.12. To Save Settings ......................49 6. Verify Operation ........................50 6.1. System Settings and Network Connection ................50 6.2. Bolt 5G LED Status Indication ..................... 51 6.3.

  • Page 5: Preface

    Preface Wireless Bolt 5G 1. Preface 1.1. About This Document ™ This document describes how to install and configure Wireless Bolt 5G For additional documentation, software downloads and technical support, please visit https://www.hms-networks.com/technologies/5G/5G-solutions. 1.2. Document Conventions Lists Numbered lists indicate tasks that should be carried out in sequence:...

  • Page 6: Trademarks

    Additional information which may facilitate installation and/or operation. Helpful advice and suggestions. 1.3. Trademarks ™ Wireless Bolt 5G is a trademarks of HMS Networks AB. All other trademarks are the property of their respective holders. Page 2 of 67 SCM-1202-211 Version 1.0...

  • Page 7: Safety

    ™ Safety Wireless Bolt 5G 2. Safety 2.1. General Safety CAUTION Ensure that the power supply is turned off before connecting it to the equipment. CAUTION To ensure proper functioning and electrical safety, connect the Bolt 5G Functional Earth (FE) connection to earth.

  • Page 8: Preparation

    ™ Wireless Bolt 5G Preparation 3. Preparation 3.1. Support and Resources For additional documentation, software downloads and technical support, please visit https://www.hms-networks.com/technologies/5G/5G-solutions. 3.2. Network Environment Ensure that you have all the necessary information about the capabilities and restrictions of your local network environment before installation.

  • Page 9: Firewall And Routing

    ™ Firewall and Routing Wireless Bolt 5G 3.6. Firewall and Routing There are routing options set for the system. By default, the firewall allows routing of: • Outgoing traffic for TCP, UDP and ICMP (for IPv4 only). • Incoming traffic for already established connections only.

  • Page 10: Installation

    ™ Wireless Bolt 5G Installation 4. Installation 4.1. Install SIM Card NOTE The supported SIM card type is Nano SIM (4FF). Figure 2. Insert SIM card To connect Bolt 5G to a cellular data network, install a cellular SIM card: Remove the SIM card holder plug.

  • Page 11: Installation Drawing

    ™ Installation Drawing Wireless Bolt 5G 4.2. Installation Drawing All measurements are in mm. Figure 3. Bolt 5G installation drawing SCM-1202-211 Version 1.0 Page 7 of 67...

  • Page 12: Surface Mounting

    ™ Wireless Bolt 5G Surface Mounting 4.3. Surface Mounting Before You Begin Placement Considerations For information about placement considerations, see Required Distance Between Devices (page Mounting Considerations • Mount the Bolt 5G on a machine or cabinet. • For information about surface heat considerations, see Surface Heat Considerations (page •...
  • Page 13 ™ Surface Mounting Wireless Bolt 5G Place the Bolt 5G housing sealing ring in its groove. In the mounting surface, drill a mounting hole with the size Ø M50 (50,5 mm). Option: To fix the Bolt 5G position, see To Lock the Bolt 5G Position (page 11).
  • Page 14 ™ Wireless Bolt 5G Surface Mounting Screw the Bolt 5G lock nut into place and tighten it. Tightening torque: 5 Nm ±10 % IMPORTANT To keep the Bolt 5G sealed against dirt and moisture, make sure the housing sealing ring is properly seated in its groove before tightening the lock nut.

  • Page 15: To Lock The Bolt 5G Position

    ™ To Lock the Bolt 5G Position Wireless Bolt 5G 4.4. To Lock the Bolt 5G Position The complete surface mounting procedure is described in, Surface Mounting (page Figure 4. Bolt 5G steering hole for locking screw To prevent the Bolt 5G from being rotated, use a screw and the Bolt 5G steering hole to fix the position.
  • Page 16 ™ Wireless Bolt 5G To Lock the Bolt 5G Position Procedure Drill a mounting hole with the size Ø M50 (50,5 mm) for the Bolt 5G and a hole with the size Ø 3 mm for the locking screw. All measurements are in mm.
  • Page 17 ™ To Lock the Bolt 5G Position Wireless Bolt 5G Place the Bolt 5G in the surface mounting hole and fit the locking screw into the Bolt 5G steering hole. SCM-1202-211 Version 1.0 Page 13 of 67...

  • Page 18: Signal And Power Connector Cabling

    ™ Wireless Bolt 5G Signal and Power Connector Cabling 4.5. Signal and Power Connector Cabling 4.5.1. Signal and Power Connector Pinout Table 1. 18-Pin Signal and Power Connector Function Color Function Color IO-Link L- Blue RS-485 Ground (GND) White Common Signal Reference Ground (SC)
  • Page 19 ™ Signal and Power Connector Cabling Wireless Bolt 5G Connector Type Recommended Phoenix Contact PCB connector type: • DFMC 0,5/ 9-ST-2,54 • DMCC 0,5/ 9-ST-2,54 RS-485 Termination and Failsafe Bias For optimal performance, the bus should be terminated at both ends.
  • Page 20 ™ Wireless Bolt 5G Signal and Power Connector Cabling Procedure This procedure describes how to wire a Phoenix PCB connector DFMC 0,5/ 9-ST-2,54. Perform the following steps for each interface cable to be used: Figure 6. Strip off cable jacket and isolation example On the interface cable, cut off one of the connectors.

  • Page 21: Connect To Dc Power

    ™ Connect to DC Power Wireless Bolt 5G 4.6. Connect to DC Power Option when you use DC Power. To use Power over Ethernet (PoE), see Connect to Power Over Ethernet (PoE). Before You Begin CAUTION To ensure proper functioning and electrical safety, connect the Bolt 5G Functional Earth (FE) connection to earth.
  • Page 22 ™ Wireless Bolt 5G Connect to DC Power Procedure Connect to DC Power and Functional Earth (FE) Figure 9. DC Power and Functional Earth (FE) Connect Bolt 5G Power connector to Functional Earth (FE). Connect Bolt 5G Power connector to a power supply.

  • Page 23: Connect To Power Over Ethernet (Poe)

    ™ Connect to Power Over Ethernet (PoE) Wireless Bolt 5G 4.7. Connect to Power Over Ethernet (PoE) Option when you use Power over Ethernet (PoE). To use DC Power, see Connect to DC Power (page 17). Before You Begin CAUTION To ensure proper functioning and electrical safety, connect the Bolt 5G Functional Earth (FE) connection to earth.
  • Page 24 ™ Wireless Bolt 5G Connect to Power Over Ethernet (PoE) Procedure Figure 11. Connect to Power Over Ethernet (PoE) Connect the Bolt 5G to Functional Earth (FE). Use the Bolt 5G steering hole to connect the functional earth connection cable to the Bolt 5G.

  • Page 25: Connect To Ethernet

    ™ Connect to Ethernet Wireless Bolt 5G RJ45 Ethernet PoE Connector Table 2. RJ45 Ethernet PoE Connector pinning Data TP0_P Positive power from alternative A PSE TP0_N TP1_P Negative power from alternative A PSE (with pin 6) TP2_P Positive power from alternative B PSE...

  • Page 26: Connect Single Pair Ethernet (Spe)

    ™ Wireless Bolt 5G Connect Single Pair Ethernet (SPE) 4.9. Connect Single Pair Ethernet (SPE) Before You Begin Supported physical layer (PHY) communication protocol: IEEE802.3bw 100BASE-T1 Ethernet Connector type: IEC 63171-2 Procedure Figure 13. Connect to Single Pair Ethernet (SPE) Connect the Bolt 5G to Single Pair Ethernet (SPE).

  • Page 27: Frequency Bands And Power Level

    ™ Frequency Bands and Power Level Wireless Bolt 5G 4.10. Frequency Bands and Power Level Standard Mode Bands Frequency (MHz) Transmit Power UMTS (Universal Mobile Wideband Code Division Multiple Access (WCDMA) 1920 – 1980 25 dBm Telecommunications 1850 – 1910 System) 1710 –...
  • Page 28 ™ Wireless Bolt 5G Frequency Bands and Power Level Standard Mode Bands Frequency (MHz) Transmit Power 814 – 849 703 – 748 2305 – 2315 3550 – 3700 1710 – 1780 1695 – 1710 663 – 698 698 – 716 2570 –...

  • Page 29: Configuration

    ™ Configuration Wireless Bolt 5G 5. Configuration 5.1. Connect to PC and Power When configuring Bolt 5G it must be connected to a PC. Figure 15. Connect to PC and Power Connect the Bolt 5G Ethernet port to your PC.

  • Page 30: Access The Built-In Web Interface

    ™ Wireless Bolt 5G Access the Built-In Web Interface 5.2. Access the Built-In Web Interface 5.2.1. Required IP Address Settings NOTE The Bolt 5G default IP address is 192.168.1.1 and the subnet mask is 255.255.255.0. Set a Static IP Address on Your PC On the PC accessing the Bolt 5G built-in web interface, set a static IP address within the same IP address range as the Bolt 5G IP address.

  • Page 31: Login To The Built-In Web Interface

    ™ Access the Built-In Web Interface Wireless Bolt 5G 5.2.2. Login to the Built-In Web Interface The Bolt 5G built-in web interface can be accessed from a standard web browser. Before You Begin NOTE The Bolt 5G comes with a default username and password. The default username is admin, written in lowercase letters.
  • Page 32 ™ Wireless Bolt 5G Access the Built-In Web Interface Result You are logged in to the System Overview page. Figure 18. System Overview page Page 28 of 67 SCM-1202-211 Version 1.0...

  • Page 33: Bolt 5G Built-In Web Interface

    The Bolt 5G built-in web interface is used to configure the Bolt 5G system settings as well as for diagnostics and maintenance. The System Overview page shows the current settings and network connection status. Figure 19. Wireless Bolt 5G built-in web interface, example System Overview Shows the current settings and network connection status Left sidebar menu •...

  • Page 34: Factory Default Settings

    ™ Wireless Bolt 5G Factory Default Settings 5.4. Factory Default Settings Bolt 5G comes with the following factory default settings for the Ethernet interface. Table 3. Bolt 5G Ethernet interface default settings IP Assignment Static IP Address 192.168.1.1 Subnet Mask 255.255.255.0...

  • Page 35: Ethernet Settings

    ™ Ethernet Settings Wireless Bolt 5G 5.5. Ethernet Settings IP Settings Figure 20. Ethernet page, default IP Settings with Internal DHCP Server Enabled To Change the Bolt 5G IP Address NOTE The default Bolt 5G static IP address is 192.168.1.1.
  • Page 36 ™ Wireless Bolt 5G Ethernet Settings By default, Internal DHCP Server is set to Enabled. This means that the IP address settings are set automatically by the Bolt 5G internal DHCP server. IP Address Range NOTE When the Bolt 5G is enabled, you can still use static IP addresses within the remaining IP address range.

  • Page 37: Cellular Settings

    ™ Cellular Settings Wireless Bolt 5G 5.6. Cellular Settings Before You Begin When you are going to connect Bolt 5G to a cellular network, ensure that you have installed a SIM card in the Bolt 5G SIM card holder. Refer to Install SIM Card (page 5.6.1.

  • Page 38: Operator Selection

    ™ Wireless Bolt 5G Cellular Settings 5.6.2. Operator Selection Automatic Operator Selection Figure 22. Cellular page, Operator Selection By default, the Operator Selection is set to Automatic. The mobile operator is assigned automatically. No Roaming Operator Selection When No roaming is enabled, the Mobile Country Code (MCC) and Mobile Network Code (MNC) of the SIM card installed in the Bolt 5G are automatically selected.

  • Page 39: Apn Settings

    ™ Cellular Settings Wireless Bolt 5G 5.6.3. APN Settings Automatic APN Assignment Figure 24. Cellular page, Automatic APN Assignment By default, APN Assignment is set to Automatic. The APN (Access Point Name) is assigned automatically. Manual APN Assignment Ensure that you have the APN supplied by your carrier available.
  • Page 40 ™ Wireless Bolt 5G Cellular Settings APN Authentication By default, APN Authentication is set to No. When enabled, PAP method is used. NOTE APN Authentication is to be configured only if your carrier has setup APN (Access Point Name) with username and password.

  • Page 41: Sim Pin Settings

    ™ Cellular Settings Wireless Bolt 5G 5.6.4. SIM PIN Settings Activate SIM Card Figure 27. Cellular page, SIM, Status PIN required Navigate to the Cellular page, SIM. If the SIM card installed in the Bolt 5G is locked with a PIN code, enter it in the PIN field.

  • Page 42: Nat/Passthrough Settings

    ™ Wireless Bolt 5G NAT/Passthrough Settings 5.7. NAT/Passthrough Settings 5.7.1. About NAT/Passthrough NAT/Passthrough settings determine how local hosts communicate with remote hosts. Example 2. Network Address Translation (NAT) 1:1 Figure 29. NAT 1:1 from remote hosts (C) to local hosts (B) connected to a Bolt 5G.

  • Page 43: Nat 1:N Mode

    ™ NAT/Passthrough Settings Wireless Bolt 5G Example 3. Passthrough Use Passthrough when there is one device (B) connected to the Bolt 5G (A) Ethernet port, directly or via a switch/hub. The cellular IP address of the Bolt 5G (A) is directly allocated to the local host (B).

  • Page 44: Nat 1:N Web Gui Remote Access

    ™ Wireless Bolt 5G NAT/Passthrough Settings 5.7.3. NAT 1:N Web GUI Remote Access Figure 32. NAT and Passthrough > Web GUI Remote Access Remote access to web GUI is available when NAT 1:N mode is enabled. By default, Remote access to web GUI is Disabled.

  • Page 45: Nat 1:1 Mode

    ™ NAT/Passthrough Settings Wireless Bolt 5G 5.7.4. NAT 1:1 Mode By default, Incoming Traffic is set to NAT 1:N. Procedure Figure 33. NAT/Port Forward page To configure the NAT 1:1 settings: In the Incoming Traffic drop down menu, select NAT 1:1.

  • Page 46: Passthrough Mode

    ™ Wireless Bolt 5G NAT/Passthrough Settings 5.7.5. Passthrough Mode By default, Incoming Traffic is set to NAT 1:N. Before You Begin NOTE Passthrough from a cellular network to a device connected to the Bolt 5G and an Ethernet network requires a minimum of four IP addresses.
  • Page 47 ™ NAT/Passthrough Settings Wireless Bolt 5G Result The local host configured with the Bolt 5G cellular IP address is allowed to receive incoming traffic from remote hosts. SCM-1202-211 Version 1.0 Page 43 of 67...

  • Page 48: Vpn Settings

    ™ Wireless Bolt 5G VPN Settings 5.8. VPN Settings Before You Begin VPN Client is used to secure and encrypt the data sent between the Bolt 5G and a remote OpenVPN Server over cellular network. By default, VPN Client is set to Disabled.
  • Page 49 ™ VPN Settings Wireless Bolt 5G VPN Log In the VPN Log pane, you can view log messages with entries for successful connections as well as failures and errors. The log messages start with date and time. SCM-1202-211 Version 1.0...

  • Page 50: Industrial Ethernet Tunnel Settings

    ™ Wireless Bolt 5G Industrial Ethernet Tunnel Settings 5.9. Industrial Ethernet Tunnel Settings Before You Begin Tunnel is used to transfer non-IP-based data over private cellular networks. To set up a tunnel, use two Bolt 5Gs or one Bolt 5G and another device that supports Industrial Ethernet tunneling.
  • Page 51 ™ Industrial Ethernet Tunnel Settings Wireless Bolt 5G Industrial Ethernet Tunnel Advanced Options Procedure Figure 37. IE Tunnel page, Industrial Ethernet Tunnel Advanced Options In the Protocol drop down menu, select a protocol type: • VXLAN, default setting: Virtual Extensible LAN (VXLAN) is used to create overlay networks that sit on top of the physical network.

  • Page 52: Lock Configuration

    ™ Wireless Bolt 5G Lock Configuration 5.10. Lock Configuration When configuration is locked, you can still access and use the Bolt 5G built-in web interface, but the settings cannot be configured. Figure 38. System page, Lock Configuration To lock the configuration: Navigate to the System page.

  • Page 53: To Save Settings

    ™ To Save Settings Wireless Bolt 5G 5.12. To Save Settings Cancel Changes To cancel changes, you have made to the settings: In the left sidebar menu, click Cancel All Changes. To restore settings, see Restore Settings From Backup File (page 57).

  • Page 54: Verify Operation

    ™ Wireless Bolt 5G Verify Operation 6. Verify Operation 6.1. System Settings and Network Connection On the System Overview page, verify the settings and network connection status. Figure 39. Example, Verify Settings and Network Connection Page 50 of 67 SCM-1202-211 Version 1.0...

  • Page 55: Bolt 5G Led Status Indication

    ™ Bolt 5G LED Status Indication Wireless Bolt 5G 6.2. Bolt 5G LED Status Indication Figure 40. Bolt 5G LED Indicators LED A LED B LED C LED D LED E LED F LED Status Cellular Status Power SPE RX LED...

  • Page 56: Ethernet Rj45 Led Status Indication

    ™ Wireless Bolt 5G Ethernet RJ45 LED Status Indication 6.3. Ethernet RJ45 LED Status Indication Figure 41. RJ45 Ethernet LED indicators LED A – LINK/ACTIVITY Function No Ethernet link Yellow Ethernet link established Yellow, flashing 10/100/1000 Mbps Ethernet link activity LED B –...

  • Page 57: Maintenance

    Before You Begin NOTE The configuration settings are not affected when updating firmware. Download the Firmware Update File Download the firmware update file from https://www.hms-networks.com/technologies/5G/5G-solutions. Connect Bolt 5G to your computer, refer to Connect to PC and Power (page 25).
  • Page 58 ™ Wireless Bolt 5G Firmware Update Firmware update progress Figure 43. Firmware Update, Transferring file • The progress bar, Transferring file, indicates the progress of the file transfer. Status messages show the progress of the firmware update stages. • When the file transfer is finished, the progress bar turns green.

  • Page 59: Set Administrator Password

    ™ Set Administrator Password Wireless Bolt 5G 7.2. Set Administrator Password NOTE The Bolt 5G comes with a default username and password. The default username is admin, written in lowercase letters. You find the default password on the Bolt 5G product housing.

  • Page 60: Settings Backup

    ™ Wireless Bolt 5G Settings Backup 7.3. Settings Backup 7.3.1. Create Settings Backup File IMPORTANT The Administrator Password is not saved in the settings backup file. Figure 45. System page Create Settings Backup • To save the current configuration in a backup file, click Generate.

  • Page 61: Restore Settings From Backup File

    ™ Settings Backup Wireless Bolt 5G 7.3.2. Restore Settings From Backup File IMPORTANT When you restore settings from a backup file, all the current settings except the Administrator Password are overwritten by the settings loaded from the backup file. Figure 46. Restore Settings from a backup file Restore settings from a backup file Click Choose file.

  • Page 62: Troubleshooting

    ™ Wireless Bolt 5G Troubleshooting 8. Troubleshooting 8.1. Logs The System Log contain useful information for troubleshooting issues that may occur in the system. The Log file contains additional information, such as messages from the kernel, drivers, init scripts, services, and applications.

  • Page 63: Diagnostics

    ™ Diagnostics Wireless Bolt 5G 8.2. Diagnostics Figure 48. Diagnostics page 8.2.1. Cellular Diagnostics Monitor Signal Strength and Quality You can use the diagnostics information when planning the installation of Bolt 5G. If Bolt 5G is to be placed in a fixed installation and there are several possible locations to choose between, it is viable to monitor the signal strength and quality in the intended locations.

  • Page 64: Network Diagnostics

    ™ Wireless Bolt 5G Diagnostics 8.2.3. Network Diagnostics NOTE If Bolt 5G is installed on a private cellular network, the methods are limited according to the restrictions of the private network. NOTE The methods are useful when evaluating the connection on the cellular network. Complete the evaluation by performing tests from the connected device on the LAN network.
  • Page 65 ™ Diagnostics Wireless Bolt 5G Example 4. Ping response message from target 8.8.8.8 Example 5. Nslookup response message from target www.anybus.com Example 6. Wget response message from target Speedtest SCM-1202-211 Version 1.0 Page 61 of 67...
  • Page 66 ™ Wireless Bolt 5G Diagnostics Example 7. Wget response message from target webpage Response message with elapsed time between the request being sent to the Target and the response being returned. Page 62 of 67 SCM-1202-211 Version 1.0...

  • Page 67: Reboot Using The Built-In Web Interface

    ™ Reboot Using the Built-In Web Interface Wireless Bolt 5G 8.3. Reboot Using the Built-In Web Interface Before You Begin During reboot, the Bolt 5G is temporarily unavailable for approximately two minutes. Procedure Ensure that the Bolt 5G is powered on and running.

  • Page 68: Reboot Using The Reset Button

    ™ Wireless Bolt 5G Reboot Using the Reset Button 8.4. Reboot Using the Reset Button Before You Begin During reboot, the Bolt 5G is temporarily unavailable for approximately two minutes. Procedure To reboot the Bolt 5G: Ensure that the Bolt 5G is powered on.
  • Page 69 ™ Reboot Using the Reset Button Wireless Bolt 5G When the LED status indicators have flashed 3 times, release the Reset button, and wait while the Bolt 5G reboots. Figure 53. Release Reset button after the LED indicators have flashed 3 times Result You are logged out of the Bolt 5G built-in web interface and redirected to the login page.

  • Page 70: Factory Reset Using The Built-In Web Interface

    ™ Wireless Bolt 5G Factory Reset Using the Built-In Web Interface 8.5. Factory Reset Using the Built-In Web Interface IMPORTANT Factory Reset will result in the loss of all configuration settings and logs. Figure 54. System page, System Actions Click Factory Reset.

  • Page 71: Factory Reset Using The Reset Button

    ™ Factory Reset Using the Reset Button Wireless Bolt 5G 8.6. Factory Reset Using the Reset Button IMPORTANT Factory Reset will result in the loss of all configuration settings and logs. Ensure that the Bolt 5G is powered on and running.
