Anybus
Communicator
Modbus TCP Client
5.5.2. Option for EtherNet/IP

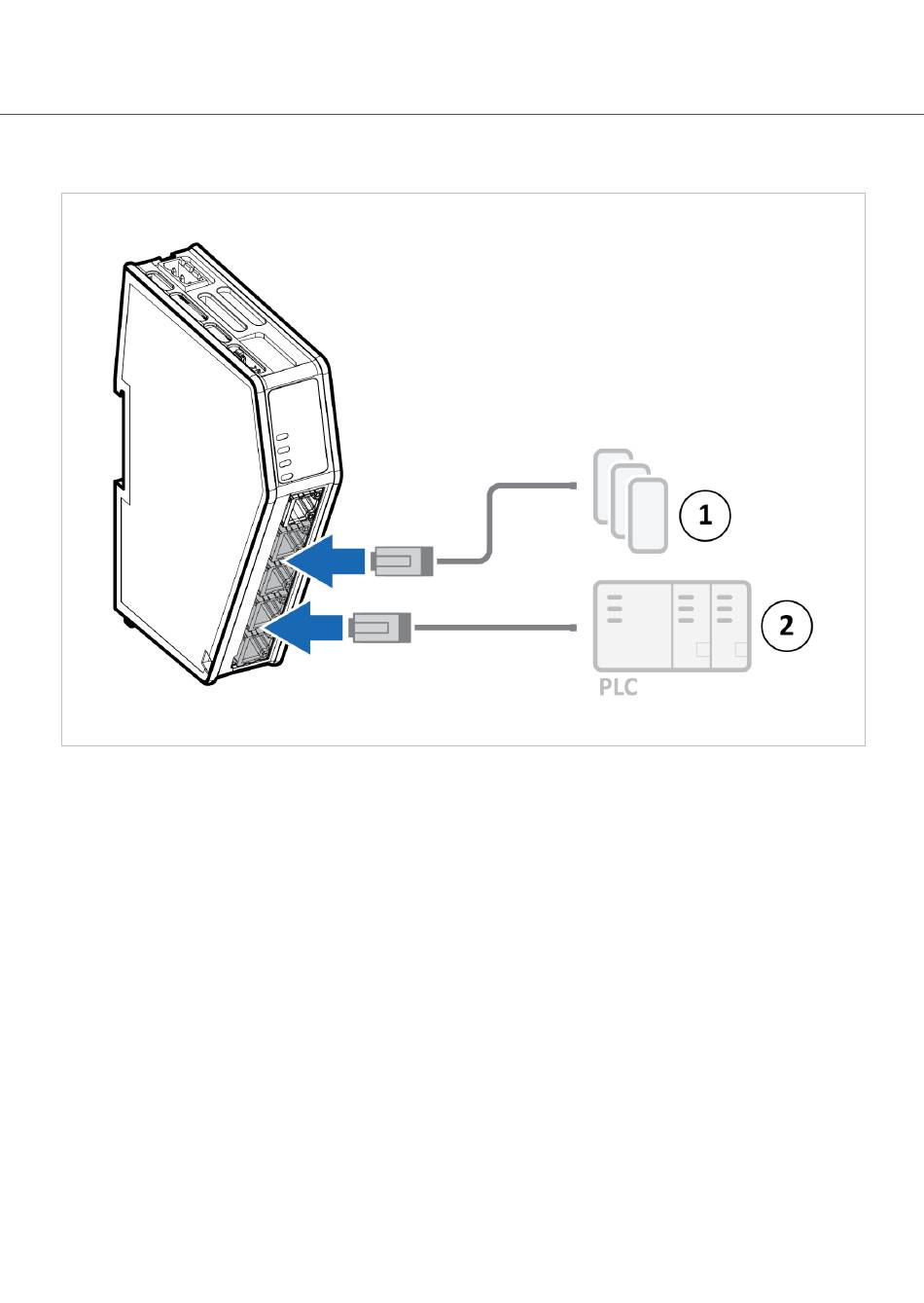

Figure 5. Connect to Modbus TCP subnetwork (1) and EtherNet/IP (2) networks
Connect the Communicator to the:
1.
Modbus TCP subnetwork subnetwork (1).
2.
EtherNet/IP high level network (2).
Page 12 of 32
™
- Common Ethernet to
Connect to Networks
SP3311 Version 1.0
