4 Hardware

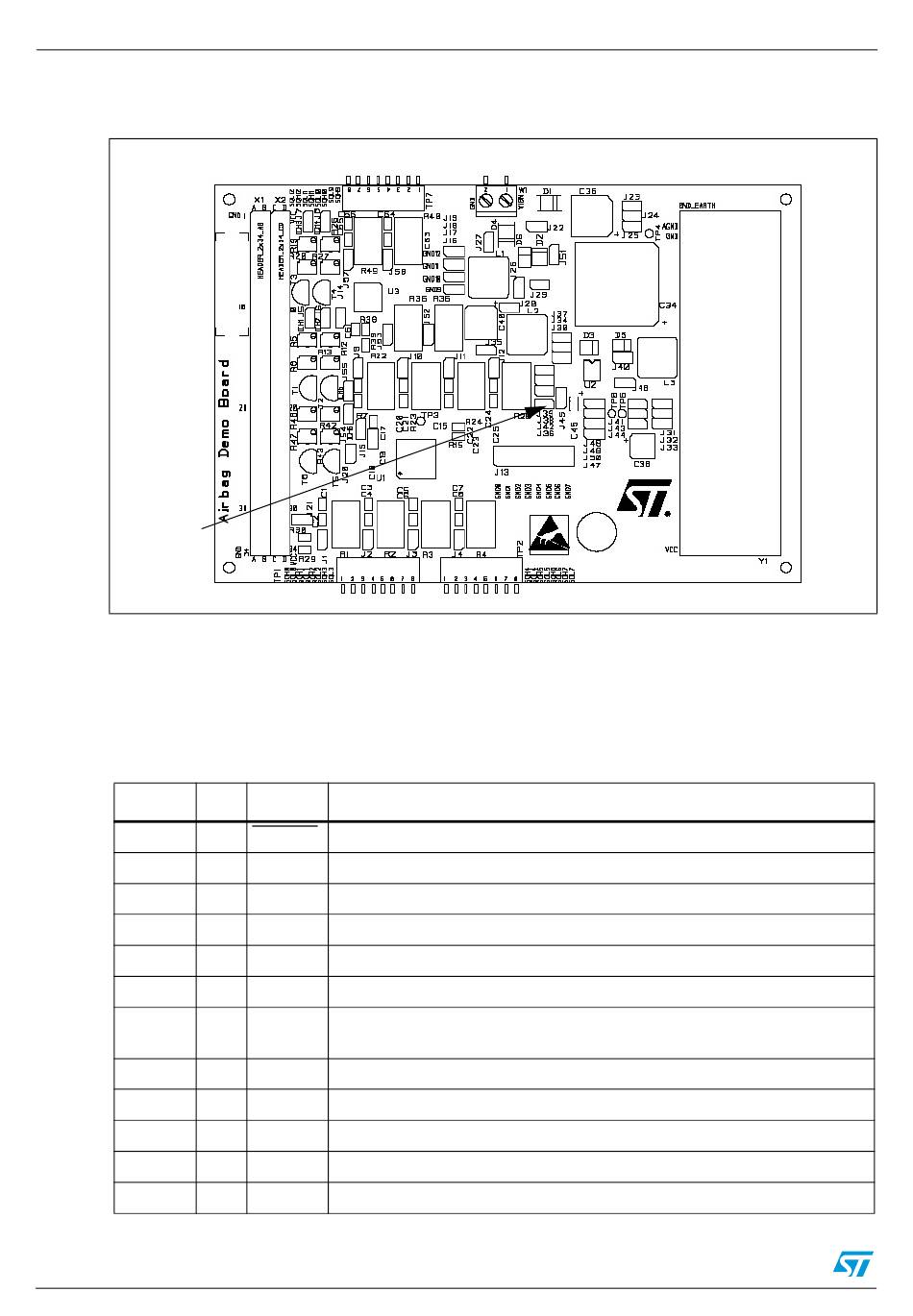

Figure 10. Reset jumper

J36
4.10

CPU Board connector

The CPU board Connector allows interfacing this board to a ST30F7xx/ST10F3xx Eva Boards.
Signals provided on the connector are listed in
Table 10.
Column Row
A 12
A 16
A 18
A 22
A 23
A 25
A 26
A 27
B 15
B 16
B 18
B 23
24/37
CPU Board connector pinout
Name
RESETB Reset
MOSI Satellite/Deployment: Data in
DICH3 Channel 3 Satellite/Sensor input simulation for L9658
DEPEN2 Deployment enable input for L9654
DICH5 Channel 1 Satellite input simulation for L9654
CS_S1 Chip select for Satellite Interface of L9658
IF3 Current Feedback for channel 3 Raw or Data output for channel 3 of the
L9658
AOUT Analog output for loop diagnostic for L9658
SCLK Satellite/Deployment SPI: Clock
MISO Satellite/Deployment SPI: Data Output
DICH4 Channel 4 Satellite/Sensor input simulation for L9658
DICH6 Channel 2 Satellite input simulation for L9654
Table 10. on page 24.
Description
