Summary of Contents for Cookology BUCH750SS/A+

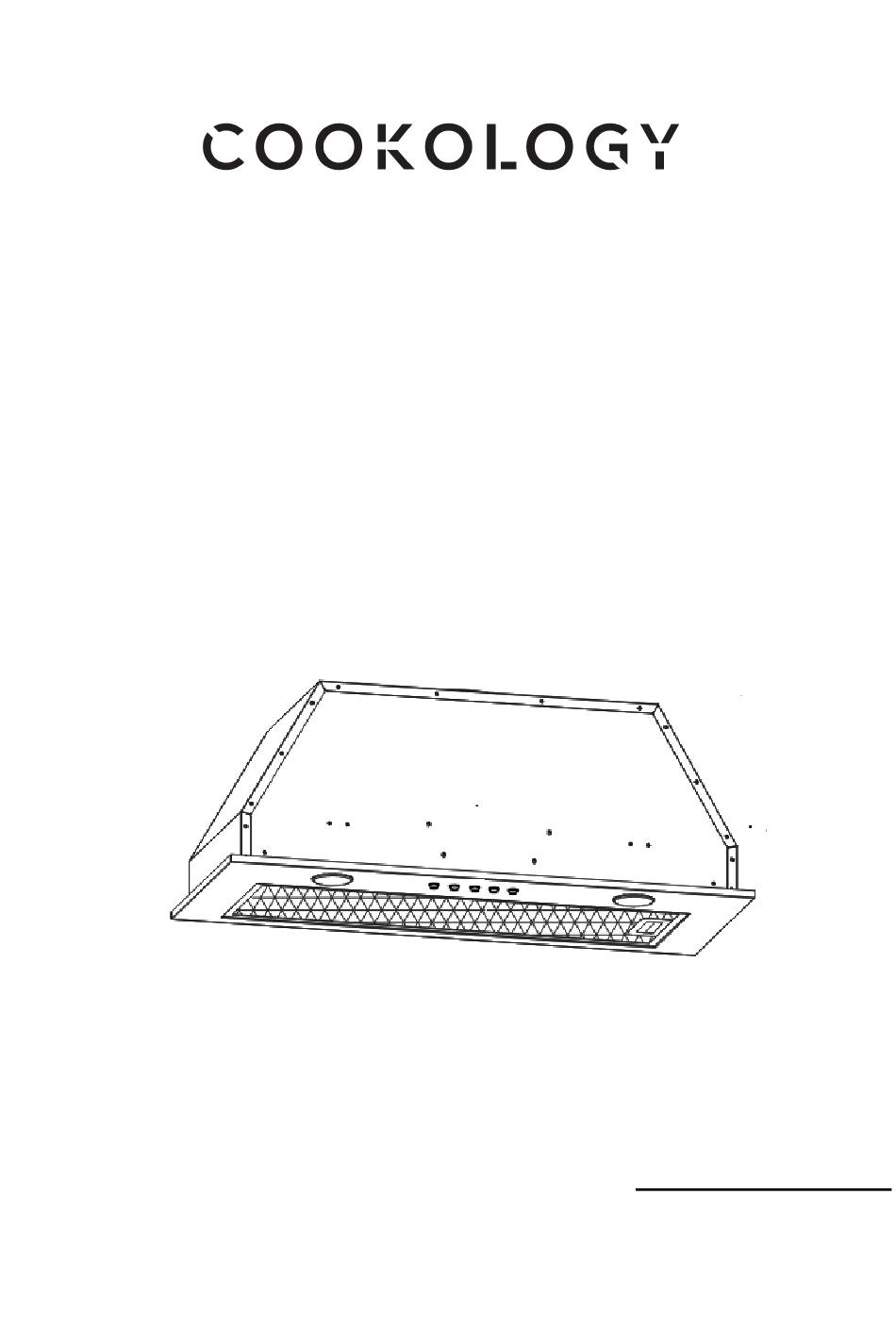

- Page 1 BUCH750SS/A+ BUCH900SS/A+ Cooker Hood Instruction Manual Please register the warranty for this product on www.Cookology.com...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. fume extractor, the operation of open Never to do: flued gas appliances should be tested... - Page 4 understand the hazards involved. ● f the voltage rating of the lamp is less Children shall not play with the than the rated voltage of the appliance, appliance. Cleaning and user the voltage rating of the lamp shall maintenance shall not be made by also be marked on or near the lamp children without supervision.
-
Page 5: Installation
than electricity are simultaneously in ● steam cleaner is not to be used. operation, the negative pressure in the ● EVER try to extinguish a fire with room must not exceed 4 Pa(4 x 10 water, but switch off the appliance and bar). - Page 6 If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non - flammable material with an interior diameter of 150mm) 1. Before installation, turn the unit off and unplug it from the outlet. 2.
-
Page 7: Start Using Your Cooker Hood
WARNING: ➢ For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. ➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. Start Using Your Cooker Hood Five-key electronic button There are five buttons:... -
Page 8: Troubleshooting
and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this. 4. Press the (High) button once, motor runs on high speed, the indicator light of high button and power button will beam. -
Page 9: Maintenance And Cleaning
federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit. MAINTENANCE AND CLEANING Caution: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. - Page 10 INSTALLING GREASE MESH FILTERS • To install filters for the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.
-
Page 11: Environment Protection
The bulb must be replaced by its service agent or Important : similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands. - Page 12 At the end of life, the appliance should not be disposed of with household waste. Check with you r Local Authority or retainer for recycling advice. Please register the warranty for this product on www.Cookology.com Cookology Limited Ground floor, 71 Lower Baggot Street, Dublin 2, D02 P593...
