1

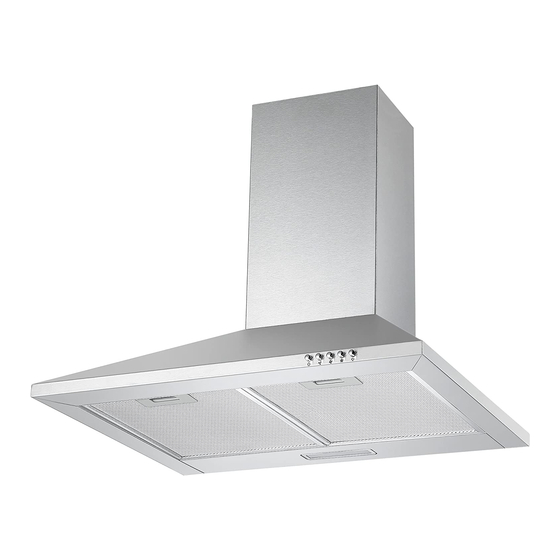

CH600SS CH600BK CH600WH
CH700SS CH700BK
CH900SS CH900BK CH900WH
Cooker hood
Instruction manual
CONTENT
1..............................................Notice

Advertisement

loading
Need help?

Need help?

Do you have a question about the CH600SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cookology CH600SS

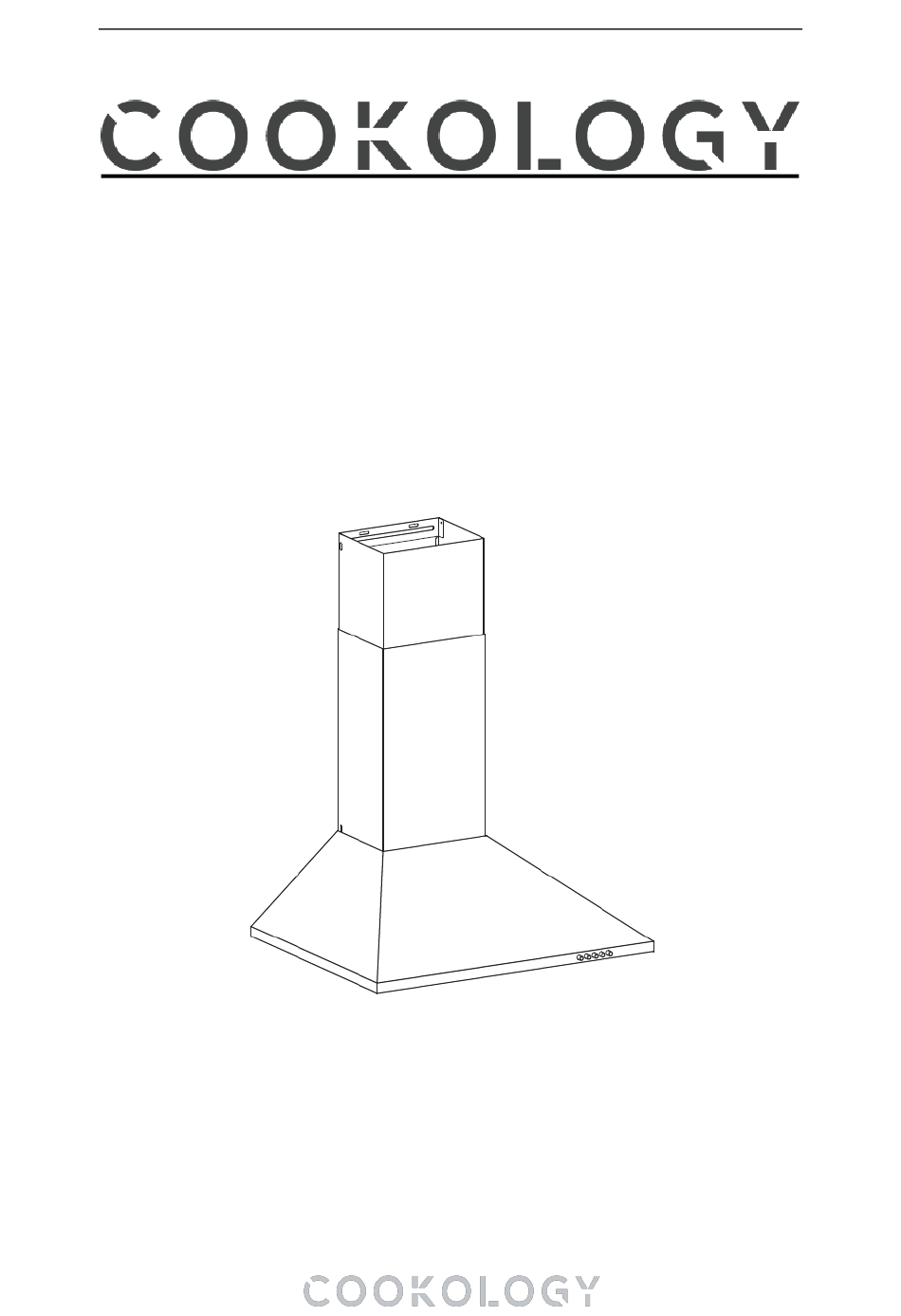

  • Page 1 CH600SS CH600BK CH600WH CH700SS CH700BK CH900SS CH900BK CH900WH Cooker hood Instruction manual CONTENT 1……………………………………….Notice...
  • Page 2 2……………………………………….Feature 3………………………………………..Installation 4………………………………………..Notice of installation 5………………………………………..Safety Warning 6…………………………………………Speed adjustment 7…………………………………………Maintenance 8………………………………………….. Abnormity and Solution 1.Notice This appliance can be used by children aged from 8 years and above...
  • Page 3 and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
  • Page 4 – there shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room); – the details concerning the method and frequency of cleaning;...
  • Page 5 The installation instructions shall include the substance of the following: – the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);...
  • Page 6 The installation instructions for range hoods with accessible metallic enclosures of class II construction shall include details that indicate the location and maximum permitted lengths for any fixing or mounting screw or other fixing device that penetrates into the range hood to attach an accessory such as a facia or duct fitting.
  • Page 7 Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards Feature 1. The cooker hood uses high quality materials, and is made with a streamlined design. 2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.
  • Page 8: Installation

    INSTALLATION If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm) 1. Before installation, turn the unit off and unplug it from the outlet. 2.
  • Page 9 3. Drill 5 φ8mm holes on a suitable place to accommodate the hook and inside chimney bracket once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.
  • Page 10 8. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw.See pic 6. 9. Before usage, read all the instructions and make sure that the power rating of the cooker hood matches the power rating of the supply. Note: The two safety vents are positioned on the back housing, with diameter of 6mm.
  • Page 11 with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge ,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Do not touch the light bulbs when/after appliance use. •...
  • Page 12: Maintenance

    5) Push the light button and the two lights will come on. Push it again and the light will turn off. 7. MAINTENANCE 1. It is recommended to operate the appliance prior to cooking. 2. It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapors and odors.
  • Page 13 You can clean the filter as below measure: Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid damaging it. Note: Please do not use abrasive detergent for it will damage the hood;...
  • Page 14: Bulb Replacement

    NOTE: • Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. • When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT  The Bulb must be replaced by a competent Important : person.
  • Page 15 Abnormity and Solution Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor off or Replace motor a bad smell from the motor Beside the above mentioned, check the following:...
  • Page 16 Insufficient suction The distance between the Readjust the distance body and the gas top too long Too much ventilation from Choose a new place and open doors or windows resemble the machine The machine inclines The fixing screw not tight Tighten the hanging enough screw and make it...
