Summary of Contents for Cookology VISOR500SS

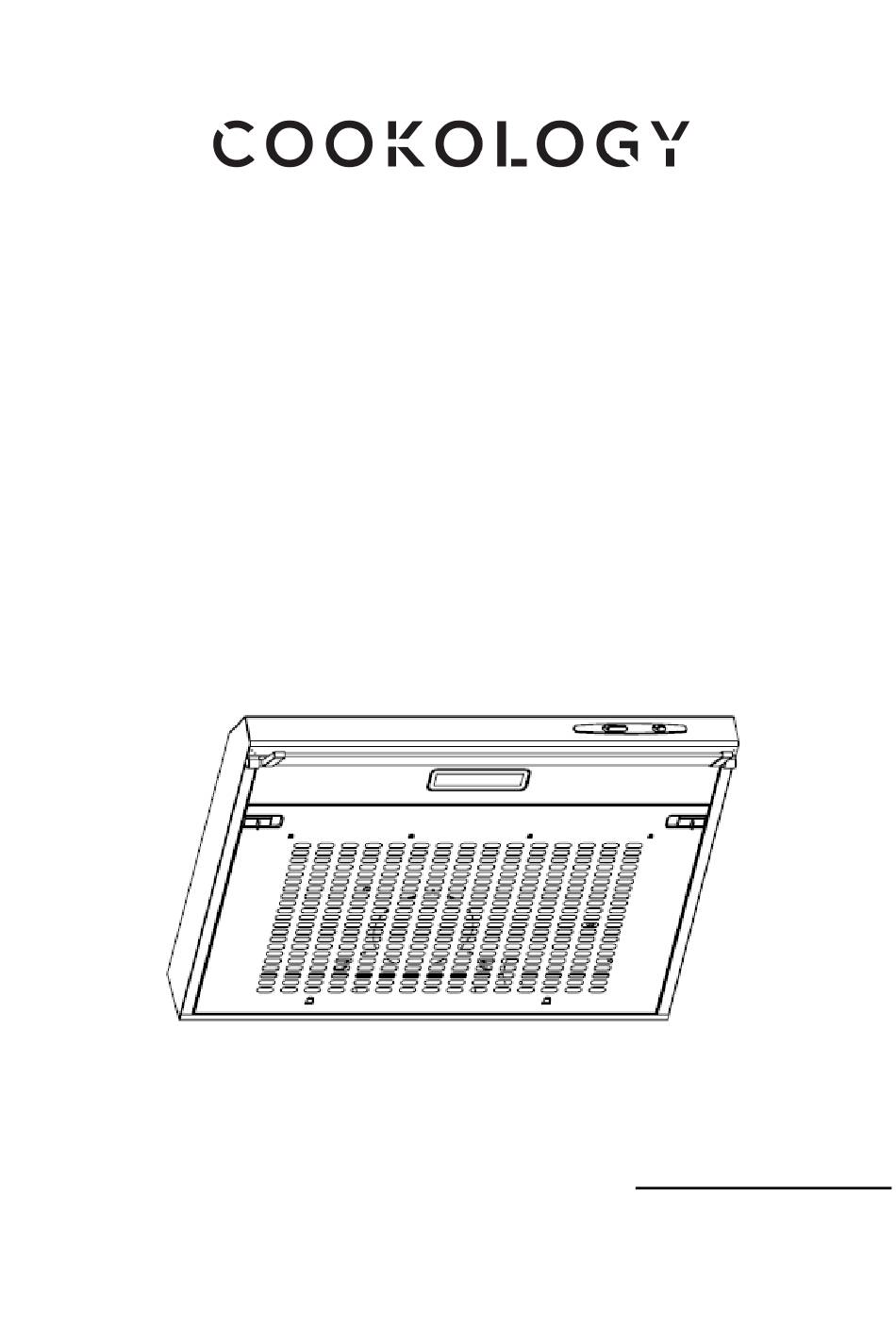

- Page 1 VISOR500SS VISOR500BK VISOR500WH Cooker Hood Instruction Manual Please register the warranty for this product on www.Cookology.com...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. of a cooker hood or other cooking Never to do: fume extractor, the operation of open... - Page 4 the appliance. Cleaning and user ● f the voltage rating of the lamp is less maintenance shall not be made by than the rated voltage of the appliance, children without supervision. the voltage rating of the lamp shall also be marked on or near the lamp holder.
- Page 5 room must not exceed 4 Pa (4 x 10 ● EVER try to extinguish a fire with bar). water, but switch off the appliance and ● ARNING: Danger of fire: do not then cover flame e.g. with a lid or a store items on the cooking surfaces.
- Page 6 7. Use the attached accessories enclosed to turn the safety screws into the two holes inside the hood, (Note: The two safety vents are positioned on the back housing, with a diameter of 6mm.) and then fix the screws to tighten the hood onto the wall.See pic 3. 8.
- Page 7 Vertical ventilation: See Pic B, please use a tool to knock out the outlet cover on the back, then the air can be vented from the back. Air ventilation setting Outdoor air ventilation: Turn the adjuster to the outdoor position (pic A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.
-
Page 8: Start Using Your Cooker Hood
Start Using Your Cooker Hood Toggle switch There are 3 speeds for the motor and on / off switch for the lamp. Slide the switch for operation. Motor Operation Low Power Setting Mid Power Setting High Power Setting Light Operation TROUBLESHOOTING Fault Possible Cause... -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING Caution: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main s power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. •... - Page 10 ⚫ Installing grease mesh filters To install filters for the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.
- Page 11 NOTE: • Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. • When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT The bulb must be replaced by its service agent or Important : similarly qualified persons.
-
Page 13: Environment Protection
At the end of life, the appliance should not be disposed of with household waste. Check with you r Local Authority or retainer for recycling advice. Please register the warranty for this product on www.Cookology.com Cookology Limited Ground floor, 71 Lower Baggot Street, Dublin 2, D02 P593...
