- Page 1 BUCH520SS&BUCH750S S&BUCH900SS Instruction manual CONTENT 1………………………………………. General...
- Page 2 2………………………………………. Safety precaution 3………………………………………..Warning 4………………………………………..Specifications 5………………………………………..Installation 6…………………………………………Operation 7…………………………………………Maintenance 8………………………………………….Abnormity and Solution 1. General Carefully read the following important information regarding installation, safety and maintenance. Keep this information booklet accessible for further consultations.

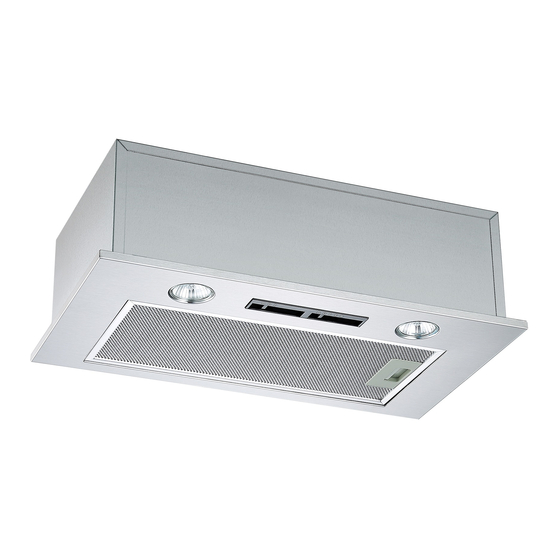

- Page 3 The appliance has been designed as a exhausting version (external exhaust ) or as a filter version (internal air recycle) cooker hood. 2. Safety precaution Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.
- Page 4 – the details concerning the method and frequency of cleaning; – there is a fire risk if cleaning is not carried out in accordance with the instructions; – do not flambé under the range hood; – CAUTION: Accessible parts may become hot when used with cooking appliances.
- Page 5 Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. 4. Specifications BUCH520SS Create an opening in the underneath of the kitchen unit; the cut-out must be of the dimensions shown in the drawing below.
- Page 6 BUCH750SS Create an opening in the underneath of the kitchen unit; the cut-out must be of the dimensions shown in the drawing below.
- Page 7 BUCH900SS Create an opening in the underneath of the kitchen unit; the cut-out must be of the dimensions shown in the drawing below.
-
Page 8: Installation
5.INSTALLATION 1) Remove the metal grease filter (A). 2) Create an opening in the underneath of the kitchen unit; the cut-out must be of the dimensions shown in the “Specifications of your cooker hood” 3) Make a hole in the inside of the kitchen unit for the electrical cable to feed through. -
Page 9: Operation
6.OPERATION Slide switch There are 3 speeds for the motor and on / off switch for the lamp. Slide the switch for operation. Motor Operation 0- off 1- Low Power Setting 2- Mid Power Setting 3- High Power Setting Light Operation 0- Off 1- On Bulb Replacement... -
Page 10: Maintenance
• Remove the grease filter. • Put one hand into the cavity to pull out the LED light carefully and replace with the same type and rated LED light (2*2W LSD-B2 LED light) • Replace the filter back to the unit. •... - Page 11 8.Abnormity and Solution Fault Cause Solution The leaf blocked Get rid of the blocking The capacitor damaged Replace capacitor Light on, but motor does not work The motor jammed bearing Replace motor damaged The internal with of motor off or Replace motor a bad smell from the motor Beside the above mentioned, check the following:...
-
Page 12: Environmental Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2002/96/EC.
