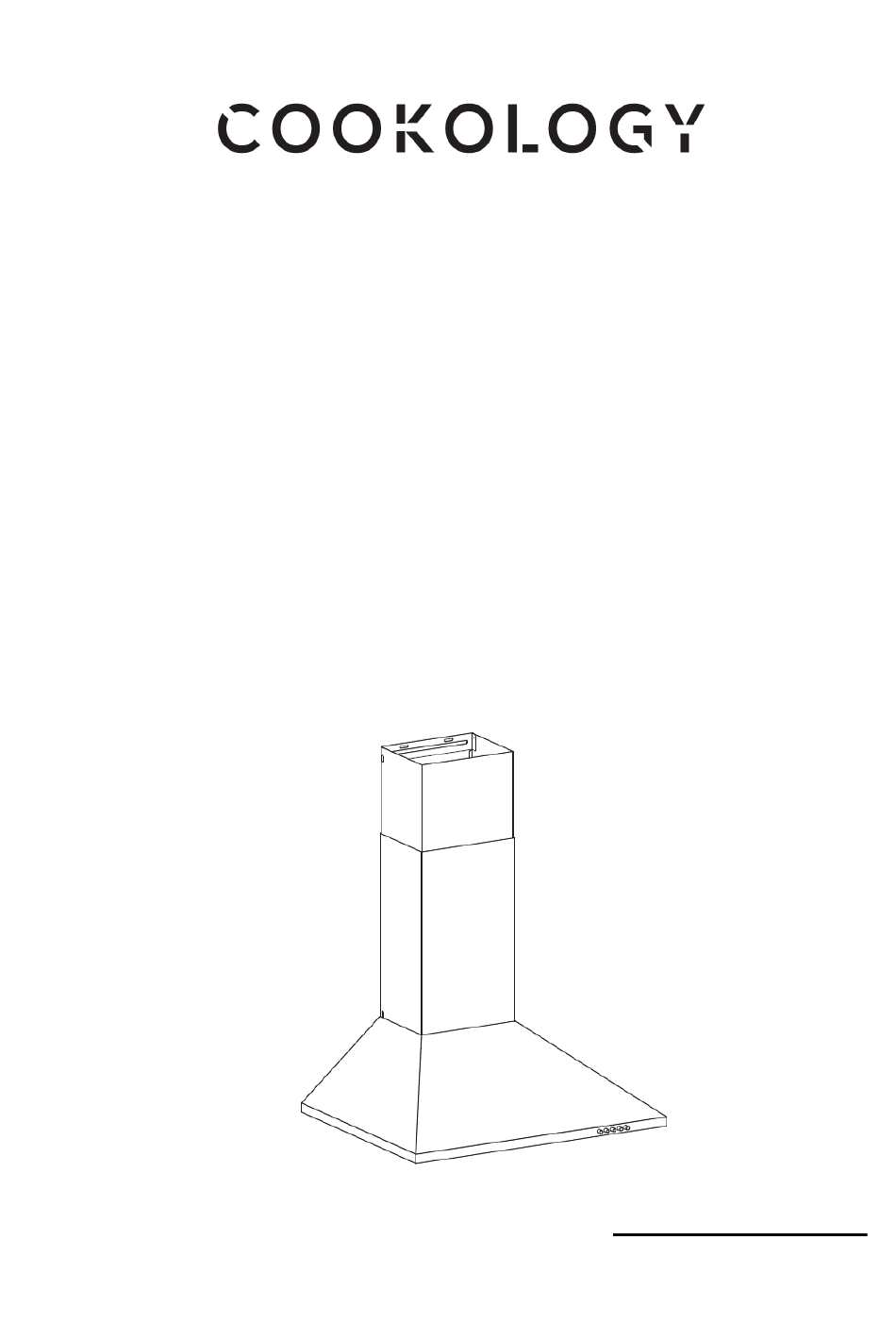

- Page 1 CH600BK/A CH600SS/A CH700BK/A CH700SS/A CH900BK/A CH900SS/A CH100BK/A CH100SS/A Cooker Hood Instruction Manual Please register the warranty for this product on www.Cookology.com...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. extractor, the operation of open flued Never to do: gas appliances should be tested by a... - Page 4 Always to do: Always to do: ● ● lways put lids on pots and pans aution: The appliance and its when cooking on a gas cooker. accessible parts can become hot during operation. Be careful to avoid ● hen in extraction mode, air in the touching the heating elements.
-
Page 5: Installation
INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configuration s. To mount the V-flap 1 you should: •... - Page 6 3. Drill 5 φ8mm holes on a suitable place to accommodate the hook and inside chimney bracket once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2. 4.
- Page 7 9. Before usage, read all the instructions and make sure that the power rating of the cooker hood matches the power rating of the supply. HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: •...
-
Page 8: Start Using Your Cooker Hood
Start Using Your Cooker Hood Push button Push the stop button, and the motor will stop. Push the low button, and the motor will run at low speed. Push the middle button, and the motor will run at mid speed. Push the high button, and the motor will run at high speed. -
Page 9: Maintenance And Cleaning
MAINTENANCE AND CLEANING Caution: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. • External surfaces are susceptible to scratches and abrasions, so follow the cleaning instructions to ensure the best possible result is achieved without damage. - Page 10 • To install filters for the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.
- Page 11 wire, the wire pressing plate needs to be dismantled first).See pic 1.The junction box has version a and b, depending on different models. ➢ Find out the terminal of the light connecting wire and pull it out. See pic 2. ➢...
-
Page 12: Environment Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. - Page 13 Please register the warranty for this product on www.Cookology.com Cookology Limited Ground floor, 71 Lower Baggot Street, Dublin 2, D02 P593 The Wright Buy Ltd Unit 2 Piperell Way, Haverhill, Suffolk, CB9 8QW, United Kingdom...
