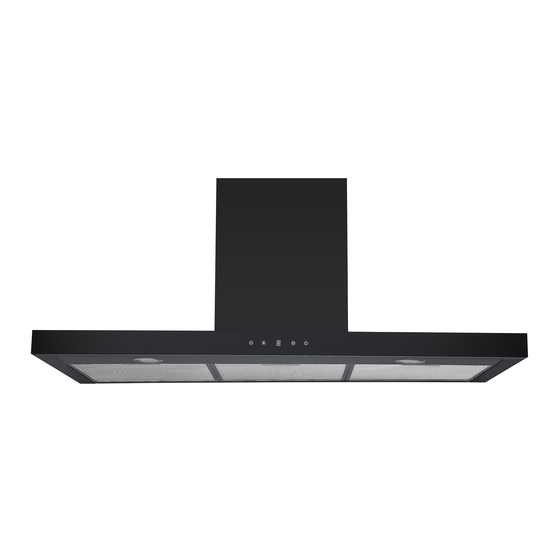

Cookology LINT1001BK Instruction Manual

Standard and curved glass cooker hood
Hide thumbs

Advertisement

Quick Links

1
Standard and Curved
Glass Cooker Hood
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LINT1001BK and is the answer not in the manual?

Questions and answers

Related Manuals for Cookology LINT1001BK

Summary of Contents for Cookology LINT1001BK

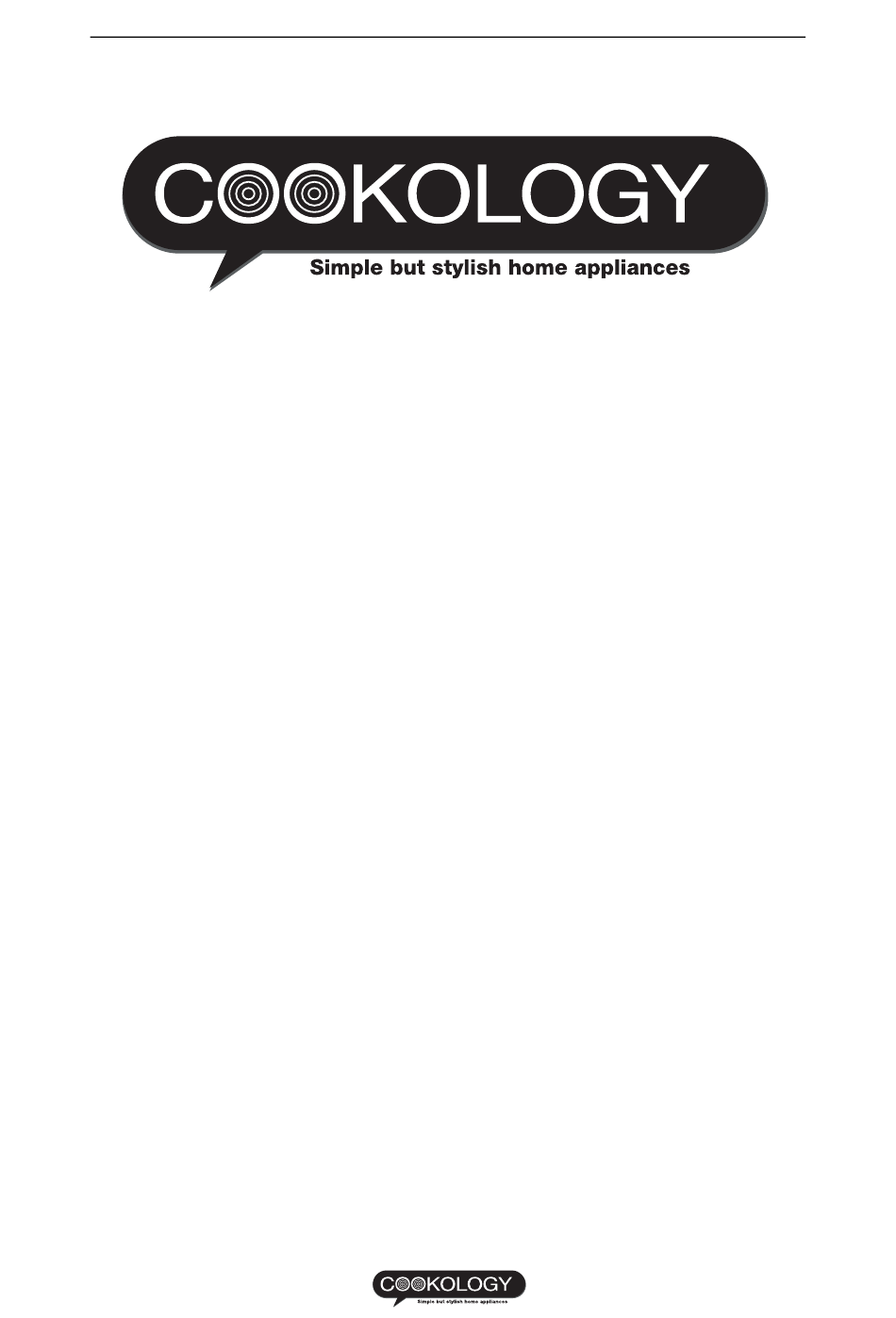

  • Page 1 Standard and Curved Glass Cooker Hood Instruction Manual...

  • Page 2: Table Of Contents

    CONTENTS 3……………………………………….Important Safety Notes 5……………………………………….Feature 6……………………………………….Installation 10..…………………………………….Speed adjustment 11..…………………………………….Maintenance 12..…………………………………….Trouble Shooting...

  • Page 3: Important Safety Notes

    1. IMPORTANT SAFETY NOTES – Read before Installing This appliance must not be used by Children under 8. Children Over 8 and/or Persons with reduced physical, sensory or mental capabilities can only use the appliance if they are given supervision and are instructed in the use of the safe use of the item and understand the hazards involved.
  • Page 4  Your cooker hood is for domestic use only, not suitable for barbecues, fires or commercial use.  Any installation work must be carried out by a qualified electrician.  The cooker hood and its filter mesh should be cleaned regularly in order to keep the appliance in good working order.

  • Page 5: Feature

    2. FEATURES  The cooker hood uses high quality materials, and features a streamlined design.  Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction with level noise. The non-stick grease filter makes it easy to clean. ...

  • Page 6: Installation

    3. INSTALLATION IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person. YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. We recommend that at least two people install this hood. Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in...
  • Page 7 Fitting a Standard Chimney Cooker Hood without Glass: 1) The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for best performance. See Pic 1. 2) Install the mounting hooks at a suitable place once the installation height has been calculated.
  • Page 8 Fitting a Curved Glass Cooker Hood: 1) The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the performance. Pic 1. 2) Install the mounting hooks at a suitable place once the installation height has been calculated.
  • Page 9 Note: The two safety vents are positioned on the back casing, with diameter of 6mm. 7) After installation, make sure that the extractor is level to avoid grease collection at one end. Fitting the carbon filters: If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters.

  • Page 10: Speed Adjustment

    4. SPEED ADJUSTMENT There are several buttons on the control panel, which perform Separate functions. = Low speed = Medium speed = High speed = Light ON/OFF button IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

  • Page 11: Maintenance

    7. MAINTENANCE General Cleaning:  Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.  Never use abrasive powder, corrosive solvents or brushes.  Never insert pointed objects into the motor’s protective grid. ...

  • Page 12: Trouble Shooting

    8. TROUBLE SHOOTING Fault Cause Solution The Fan is blocked Get rid of the blockage The capacitor is damaged Replace capacitor Light on, but motor does not work The motor jammed - bearings Replace motor damaged Bad smell from the motor Replace motor Besides the above, check the following: Light does not work,...
  • Page 13 ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2002/96/EC. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.

This manual is also suitable for:

Lint1001ss
